Driveshaft Flex Disc (Guibo), Aftermarket - E36, E46, Z3, Z4 (See Fitment List)

Replacement guibo to restore driveline smoothness on many manual & automatic transmission cars!

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$44.99

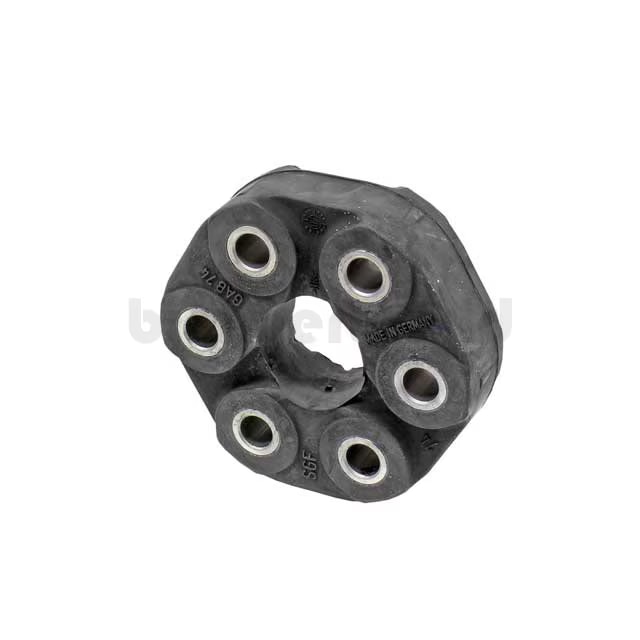

Flex Disc, aka the guibo, for E36, E46, Z3, and Z4 (See detailed fitment list). The flex disc connects the driveshaft to the transmission and provides a buffer to absorb driveline vibrations. The rubber flex disc takes the torque coming out of the transmission and delivers a seamless transition to the driveshaft. But over time the rubber is subjected to constant loading/unloading and it will break down. The rubber is designed to be the weakest link so that the rest of the driveline lasts longer.

Detailed list of fitments (Check your car carefully, as this Guibo is transmission-dependent on many applications.)

1992-1998 BMW E36 318i 318ti 318ic - **Manual Transmission only
1993-1998 BMW E36 318is (not 91-92) - **Manual Transmission only
1992-1998 BMW E36 323is 323ic 325i 325is 325ic - Either Manual or Automatic Transmission
1992-1998 BMW E36 328i 328is 328ic - **Automatic Transmission only
1999-2005 BMW E46 323i 323ci 325i 325ci - ** Manual Transmission
1997-2002 BMW Z3 1.9 - ** Manual Transmission only
1999-2000 BMW Z3 2.3 M52TU - Either Manual or Automatic Transmission
2001-2002 BMW Z3 2.5i - ** Manual Transmission only
1997-4/1999 BMW Z3 2.8 - ** Automatic Transmission only
2003-2006 BMW Z4 2.5i - Either Manual or Automatic Transmission

Symptoms of a failed guibo will be a dull thunk when dipping in/out of the throttle and during shifts. You may also notice cracks in the rubber around the bolt holes. A great time to replace the guibo, and driveshaft center support bearing, is during a clutch overhaul, short shift kit install, or any time the driveshaft is removed from the car.

This guibo is manufactured by Febi-Bilstein, an aftermarket supplier with a two year warranty.

We also recommend replacing the 6 self-locking nuts at the same time.

Install note: the flex disc is directional. During install, look for an arrow on the outer rim. The arrow should point towards the flange and indicates the direction the bolt should go. Installing it backwards will cause premature failure of the flex disc.

BMW Fitments:
3 Series
E36 (92-99) > 318i M42
E36 (92-99) > 318i M44
E36 (92-99) > 318ic M42
E36 (92-99) > 318ic M44
E36 (92-99) > 318is M42
E36 (92-99) > 318is M44
E36 (92-99) > 323ic
E36 (92-99) > 323is
E36 (92-99) > 325i
E36 (92-99) > 325ic
E36 (92-99) > 325is
E36 (92-99) > 328i
E36 (92-99) > 328ic
E36 (92-99) > 328is
3 Series
E36/5 (95-99) > 318ti M42
E36/5 (95-99) > 318ti M44
3 Series
E46 (99-05) > 320i
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 1.9
E36/7 / E36/8 Z3 (96-02) > Z3 2.5
E36/7 / E36/8 Z3 (96-02) > Z3 2.8 97-98
E36/7 / E36/8 Z3 (96-02) > Z3 2.8 99-00
Z Series
E85 / E86 Z4 (03-08) > Z4 2.5i M54
