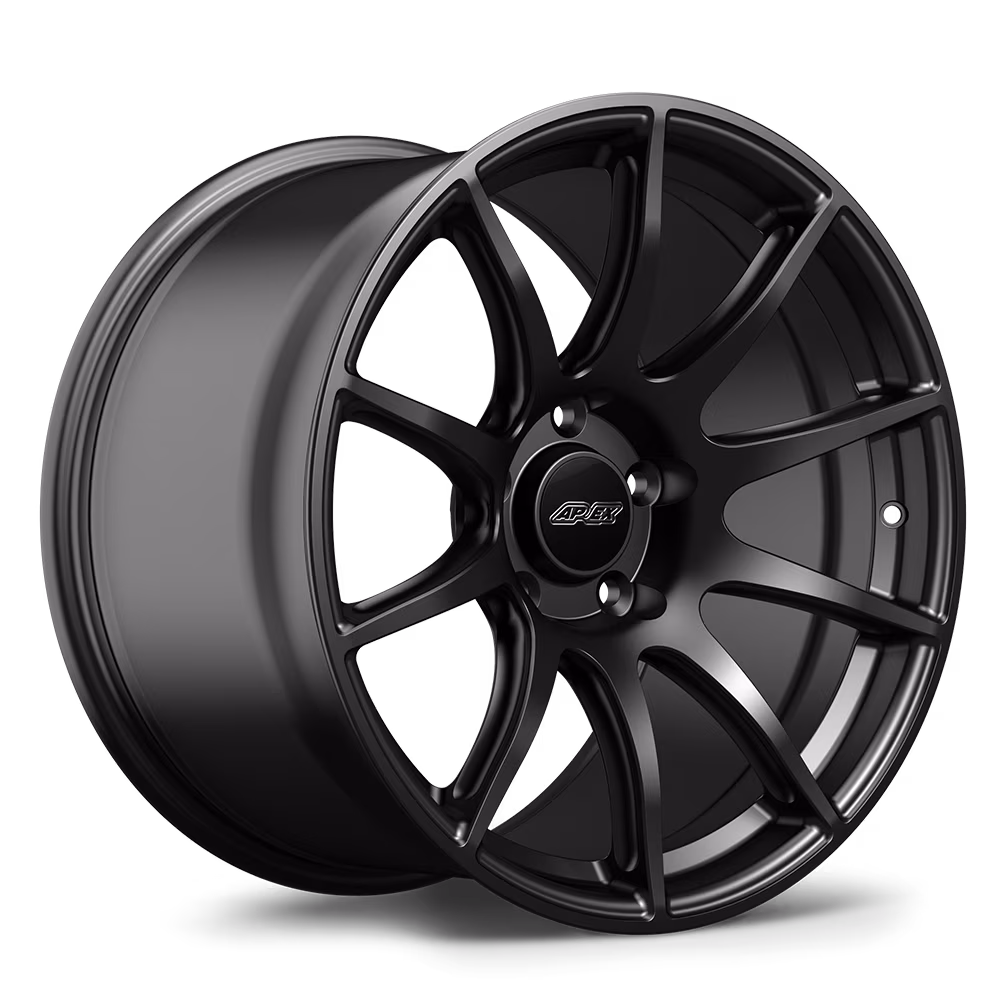

The SM-10 APEX wheel combines their flow-forming wheel manufacturing with their first straight-spoke wheel design. Each of the 10 spokes features "I-beam" finish machining that shaves weight without affecting strength. The profile of the spokes has been optimized for each offset and width to allow generous clearance with big brake kits (as all APEX wheels do) and optimal strength.
The APEX SM-10 wheel achieves its combination of strength, light weight, and affordability through flow-forming technology. By flow-forming the wheel, weight is reduced in the barrel through a process sometimes referred to as "rotary forging." Rotary forging, while not the same as the traditional forging, is superior to regular casting. The rolling process occurs under extreme pressure, yielding a barrel that is stronger than a standard cast wheel, with certain material properties that are similar to a standard forged wheel. This added barrel strength allows for a reduction in overall wheel weight, while not sacrificing any of the strength you'd expect from durable flow-formed wheels.
Thanks to its lightweight barrel and robust face design, the SM-10 stands up well against the rigors of endurance racing, as well as your average street potholes.
Features
- I-beam spoke design - less mass while retaining strength
- Flow-formed, roll forged barrel - superior strength and reduced weight
- Excellent clearance for aftermarket big brake kits
- Carbon fiber pattern hub cap - clean and simple
- Accepts OEM BMW center caps
- Accepts factory lugs, wheel locks, or stud conversions
- Tire pressure monitoring system (TPMS) compatible - not included
Priced per wheel (individually).
Fitment Note: we do our best to display wheels that fit your BMW model, based on your model selection. Wheels with aggressive fitments or tight clearances may also be listed. Many variables must be considered for wheel fitment, especially when using larger wheels or different offsets. These variables include: suspension type and settings, ride height, tire size, bodywork changes, and alignment settings. In some cases, additional parts or modifications may be necessary for fitment that may not be listed in our catalog. These wheels, like many wheels, are not compatible with 10mm wheel spacers. We recommend using 12mm spacers, as 10mm hubcentric spacers have inherent design limitations that prevent them from sitting flush. Final wheel fitment and clearance is the responsibility of the customer, however, we welcome your questions on fitment, size, offset, or other wheel-related inquiries. Wheel returns are limited to quality issues only.
BMW Fitments: 1 SeriesE82 / E88 (08-13) > 1M (11-12)
F22 / F23 (2014+) > M235i-Racing
F22 / F23 (2014+) > M240i-Racing
2 SeriesF87 (2016+) > M2 Competition S55 (2019+)
F87 (2016+) > M2 N55 (2016-2018)
3 SeriesE36 (92-99) > 318i M42
E36 (92-99) > 318i M44
E36 (92-99) > 318ic M42
E36 (92-99) > 318ic M44
E36 (92-99) > 318is M42
E36 (92-99) > 318is M44
E36 (92-99) > 323ic
E36 (92-99) > 323is
E36 (92-99) > 325i
E36 (92-99) > 325ic
E36 (92-99) > 325is
E36 (92-99) > 328i
E36 (92-99) > 328ic
E36 (92-99) > 328is
E36 (92-99) > M3 (1995)
E36 (92-99) > M3 (96-99)
3 SeriesE36/5 (95-99) > 318ti M42
E36/5 (95-99) > 318ti M44
3 SeriesE46 (99-05) > 320i
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 325xi
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
E46 (99-05) > M3
3 SeriesE90 / E91 / E92 / E93 (06-13) > 323i
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 325xi
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 328xi
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 330xi
E90 / E91 / E92 / E93 (06-13) > 335d
E90 / E91 / E92 / E93 (06-13) > 335i
E90 / E91 / E92 / E93 (06-13) > 335is
E90 / E91 / E92 / E93 (06-13) > 335xi
E90 / E91 / E92 / E93 (06-13) > M3
3 SeriesF30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
3 SeriesF80 (2015-2018) > M3 (2015-2018)
4 SeriesF32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
4 SeriesF82 / F83 (2015-2020) > M4 (2015-2020)
5 SeriesE12 (77-81) > 528i
E12 (77-81) > 530i
5 SeriesE28 (82-88) > 524td
E28 (82-88) > 528e
E28 (82-88) > 533i
E28 (82-88) > 535i
E28 (82-88) > M5 (87-88)
5 SeriesE34 (89-95) > 525i M20
E34 (89-95) > 525i M50
E34 (89-95) > 530i
E34 (89-95) > 535i
E34 (89-95) > 540i
E34 (89-95) > M5 (91-95)
5 SeriesE60 / E61 (04-10) > 525i M54 (2004-2005)
E60 / E61 (04-10) > 525i N52 (2006-2007)
E60 / E61 (04-10) > 525xi N52 (2006-2007)
E60 / E61 (04-10) > 528i
E60 / E61 (04-10) > 528xi
E60 / E61 (04-10) > 530i M54 (2004-2005)
E60 / E61 (04-10) > 530i N52 (2006-2007)
E60 / E61 (04-10) > 530xi N52 (2006-2007)
E60 / E61 (04-10) > 535i
E60 / E61 (04-10) > 535xi
E60 / E61 (04-10) > 545i
E60 / E61 (04-10) > 550i
E60 / E61 (04-10) > M5
5 SeriesF10 / F11 (11-16) > 528i N20 (2012-2016)
F10 / F11 (11-16) > 528i N52 (2011)
F10 / F11 (11-16) > 528i xDrive N20 (2012-2016)
F10 / F11 (11-16) > 535d
F10 / F11 (11-16) > 535d xDrive
F10 / F11 (11-16) > 535i
F10 / F11 (11-16) > 535i xDrive
F10 / F11 (11-16) > 550i
F10 / F11 (11-16) > 550i xDrive
F10 / F11 (11-16) > Hybrid 5
F10 / F11 (11-16) > M5 (2013-2016)
6 SeriesE24 (77-89) > 630CSi
E24 (77-89) > 633CSi
E24 (77-89) > 635CSi
E24 (77-89) > M6
6 SeriesE63 / E64 (04-10) > 645Ci
E63 / E64 (04-10) > 650i
E63 / E64 (04-10) > M6
6 SeriesF12 / F13 (12-18) > 640i
F12 / F13 (12-18) > 650i
F12 / F13 (12-18) > 650i xDrive
F12 / F13 (12-18) > M6
7 SeriesE23 (77-87) > 733i
E23 (77-87) > 735i
7 SeriesE32 (88-94) > 735i
E32 (88-94) > 735iL
E32 (88-94) > 740i
E32 (88-94) > 740iL
E32 (88-94) > 750iL
7 SeriesE38 (95-01) > 740i
E38 (95-01) > 740iL
E38 (95-01) > 750iL
7 SeriesE65 / E66 (02-08) > 745Li
E65 / E66 (02-08) > 745i
E65 / E66 (02-08) > 750Li
E65 / E66 (02-08) > 750i
E65 / E66 (02-08) > 760Li
7 SeriesF01 / F02 (2009-2015) > 740Li
F01 / F02 (2009-2015) > 740i
F01 / F02 (2009-2015) > 750Li
F01 / F02 (2009-2015) > 750Li xDrive
F01 / F02 (2009-2015) > 750i
F01 / F02 (2009-2015) > 760Li
8 SeriesE31 (91-97) > 840Ci
E31 (91-97) > 850CSi
E31 (91-97) > 850Ci
E84 X1 (2013-2015) > X1 28i
E84 X1 (2013-2015) > X1 28i xDrive
E84 X1 (2013-2015) > X1 35i xDrive
Z SeriesE36/7 / E36/8 Z3 (96-02) > Z3 1.9
E36/7 / E36/8 Z3 (96-02) > Z3 2.3
E36/7 / E36/8 Z3 (96-02) > Z3 2.5
E36/7 / E36/8 Z3 (96-02) > Z3 2.8
E36/7 / E36/8 Z3 (96-02) > Z3 3.0
E36/7 / E36/8 Z3 (96-02) > Z3 M - S52
E36/7 / E36/8 Z3 (96-02) > Z3 M - S54
Z SeriesE52 Z8 (00-03) > Z8 Roadster (2000-2003)
Z SeriesE85 / E86 Z4 (03-08) > Z4 2.5i M54
E85 / E86 Z4 (03-08) > Z4 3.0i M54
E85 / E86 Z4 (03-08) > Z4 3.0i N52
E85 / E86 Z4 (03-08) > Z4 3.0si N52
E85 / E86 Z4 (03-08) > Z4 M
Z SeriesE89 Z4 (2009-2016) > Z4 sDrive28i
E89 Z4 (2009-2016) > Z4 sDrive30i
E89 Z4 (2009-2016) > Z4 sDrive35i
E89 Z4 (2009-2016) > Z4 sDrive35is
