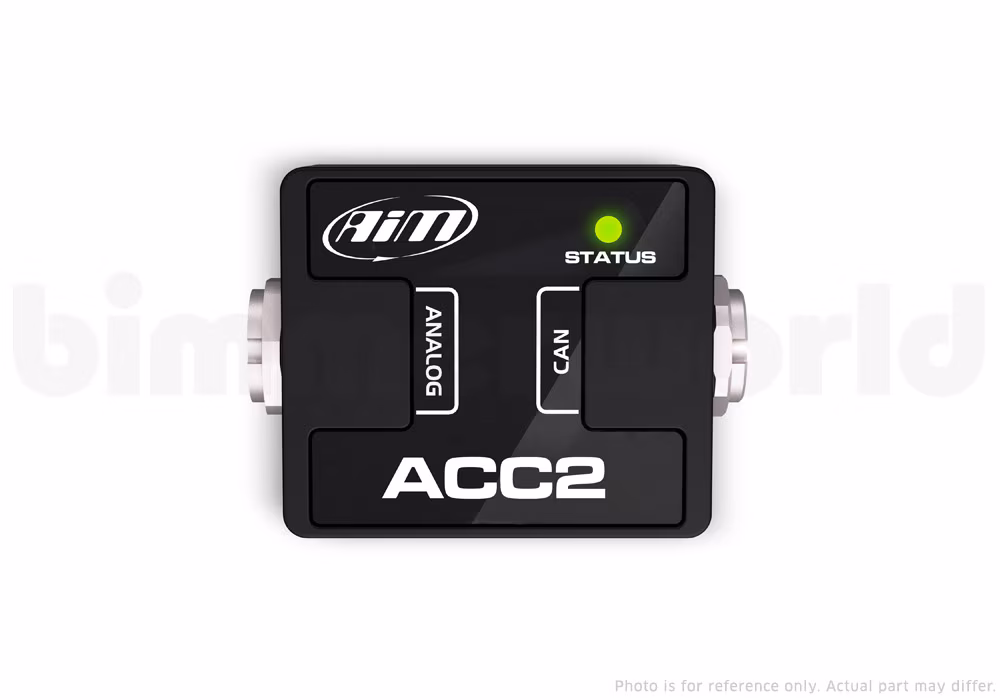

AiM ACC2 Analog-to-CAN Converter (50 cm Harness)

This powerful accessory allows you to add up to four 0-5v 200Hz analog inputs to your AiM's CAN data logger. The ACC2 is a small update over the original ACC and adds support for thermocouples or thermoresistors as well (separate item, inquire). Adding external pressure sensors, temperature sensors, or linear potentiometers will increase the quality of your data acquisition system. This is great news for E30, E36, E46 and other models where factory channels are not available on the vehicle CAN - oil pressure live data, fuel pressure, cooling system pressure, and even on-track data analysis like brake pressure.

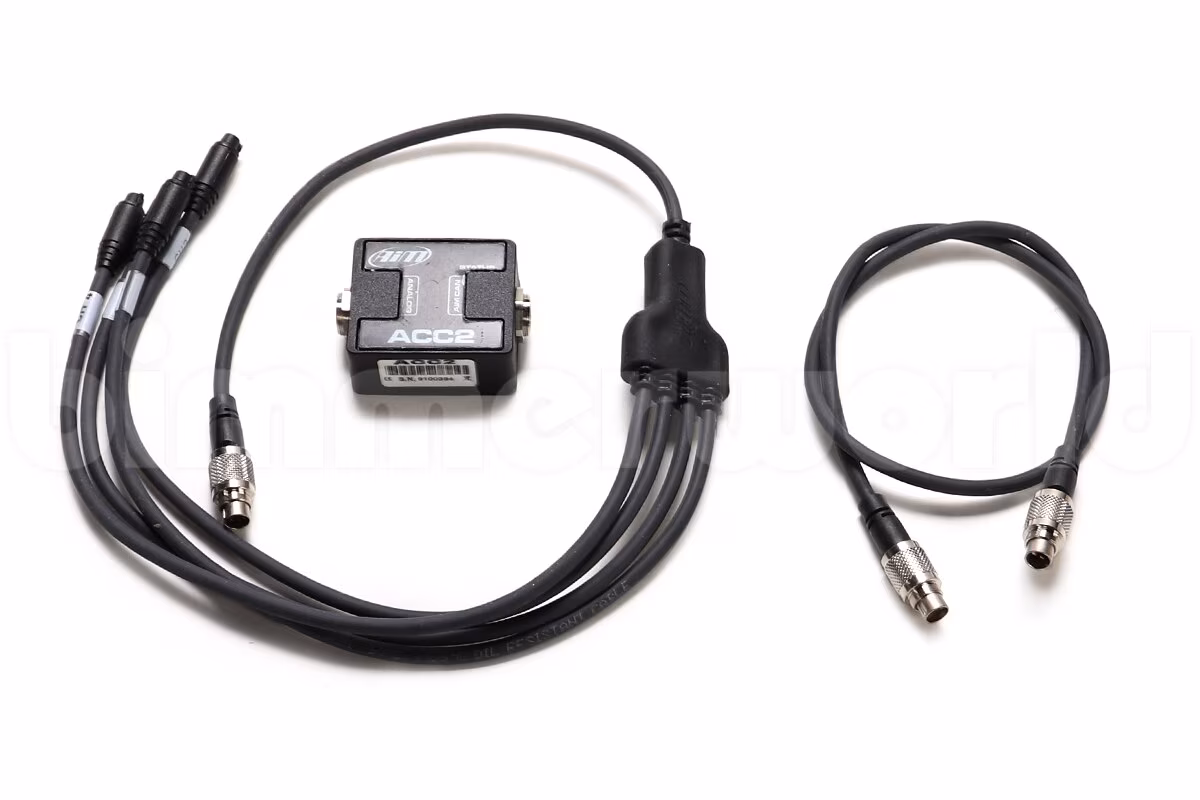

This version of the AiM Sports ACC includes a 50cm (0.5m) 4-channel splitter cable with four 719 Binder plug connector ends. Also available with un-terminated wires.

Full specs:
Analog channels: 4x configurable, 0-5v, 200Hz
External power: 9-15v
Cable connections: 8-pin Binder 712-719, 5-pin AiM CAN Binder 712-719
Case material: PA6 & 30% glass
Dimensions: 44.0x38.0x19.8mm (1.73x1.5x0.78 inches)
Weight: 50g (1.77oz)
Waterproof rating: IP65

Watch as we use the ACC to add oil pressure, fuel pressure, and brake pressure to our Spec E46 racecar.
