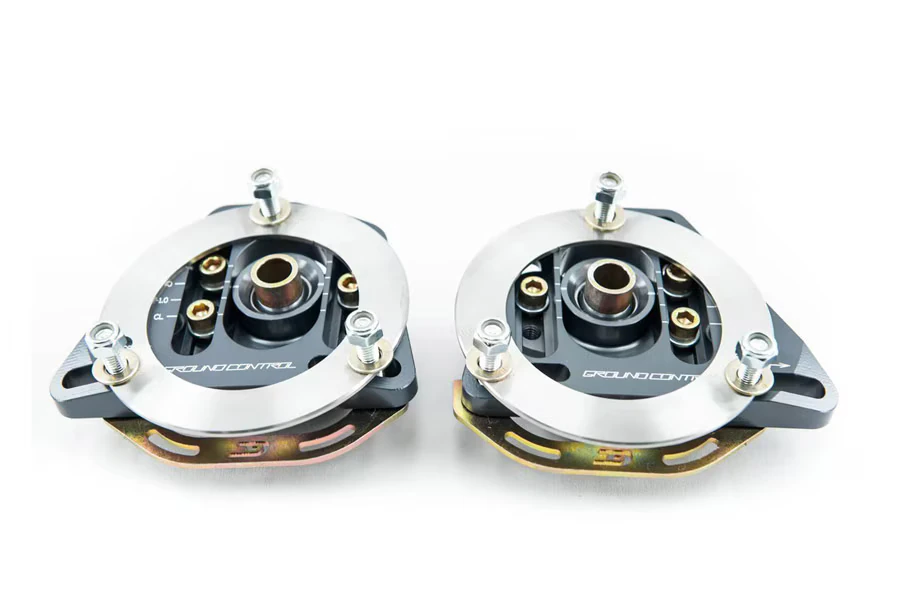

Ground Control Race Camber/Caster Plates for your E46 M3 are a true race-bred design using decades of motorsport knowledge and experience. These plates feature independent adjustment of camber and caster, CNC-machined components, aircraft-grade bearings, and proper stack height for optimal suspension travel. Unlike their Street camber plates, these are a full solid design for the ultimate in performance and precision.
A Ground Control exclusive is the use of two separate bearings to manage load instead of the more typical single spherical. The strut shaft is supported by a proprietary spherical bearing. This supports the strut during side loads and range of motion only. The weight of the car is supported by another, separate needle bearing made specifically for Ground Control with an incredibly high axial rating of 12,100lbs. The two bearing layout greatly reduces the load and strain that a single bearing must support, which means less wear, longer life, quieter operation, and better performance.
E46 M3 Race Camber Plate features:
- No cutting or modification required for install or use
- CNC-machined aluminum plates
- Stainless-steel reinforcement plates included
- Anodized or plated components for corrosion resistance
- Aircraft-grade, waterproof spherical and needle bearings
- Dual bearing layout has less load demands than a single bearing design
- Steel slider inserts
- Rebuildable if you need to replace a bearing or hardware
- Upper spring perch included
- Strut-specific hardware included
Select your spring size and shock type from the menus above. The correct bearings, spacers, and hardware will be built into the camber plate for you. Ground Control applications cover all common spring sizes and most popular racing dampers.Spring Sizes:
2.25", 60mm (2.3"), or 2.5". These camber plates are not designed for a stock-type spring.Shock Type:
AST, Bilstein, H&R, JRZ, KONI, KW, MCS, Moton, and Ohlins. If your damper is not in the list, please select "Other" and one of our reps will contact you.
Ground Control has been engineering suspension mounts for competition use since 1980. Their camber plates are based on this rich history of custom suspensions for all types of driving - street, track, and mixed use. Each camber plate is a ground-up design for its intended use, not a compromise. Ground Control-branded parts have a limited lifetime warranty (bearings excluded). Bearings have a 1 year warranty.
If you need assistance selecting the correct options, please reach out to us via chat, email, or phone. Our expertise in BMW suspensions is unparalleled and we're happy to get you the right parts. In rare cases we may need to contact you during the order process to verify specs or get additional information.
BMW Fitments:3 Series
E46 (01-06) > M3
