BimmerWorld 18x9.0 TA5R Wheel Set - E9X, F30, F32, E89 Z4

Square set of 18x9.0 flow-formed wheels - strong, light weight, and great fit for street or track

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

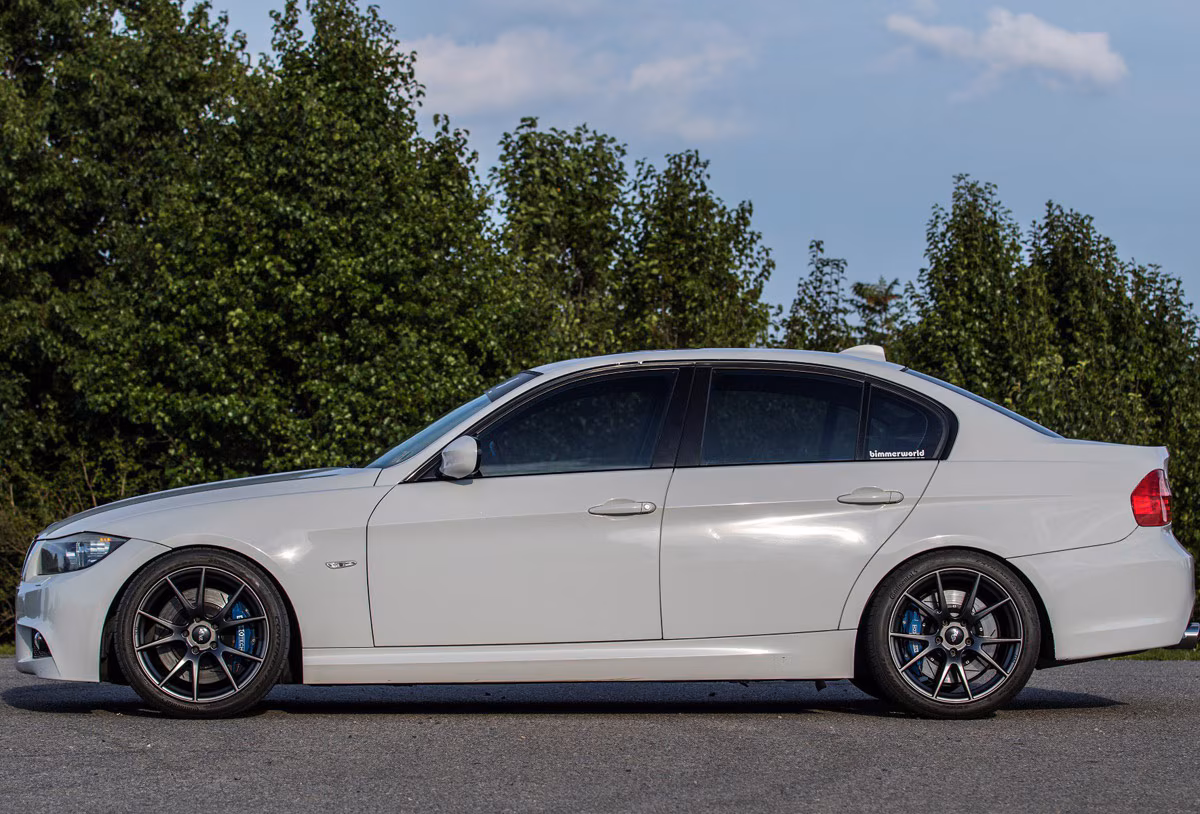

This square set of BimmerWorld 18x9.0 wheels for the E90, E92, F30, F32, and E89 Z4 are a straight fit with minimal fitment hassle or interference issues. All four wheels are 18x9.0" ET31 which is the perfect width for a 245 or 255 and some 265 tires. These are wider than stock wheels with a much larger footprint in the front to help reduce understeer. Sizes and offsets have been carefully chosen to fit within the stock bodywork with zero or minimal rubbing*. These are light weight and strong alloy wheels at a great price for the set!

Extensive work was done to produce a stronger wheel that was the same or only slightly more weight than the next competitor. TA5R uses the latest industry technology known as flow-forging or flow-forming. The process is similar to casting but with a tighter grain structure that makes the wheel stronger, similar to a true forged wheel. The superior process far surpasses older manufacturing that use a straight casting process. Our TA5R 18" wheels have a load rating of 720kg (1,587lbs), which is higher than other so-called track wheels. Flow-forming and precise machining also produce a lighter wheel - our 18" sizes come in at 19.5lbs. The TA5R has been fatigue and impact tested and exceeds SAE, JWL, and VIA standards.

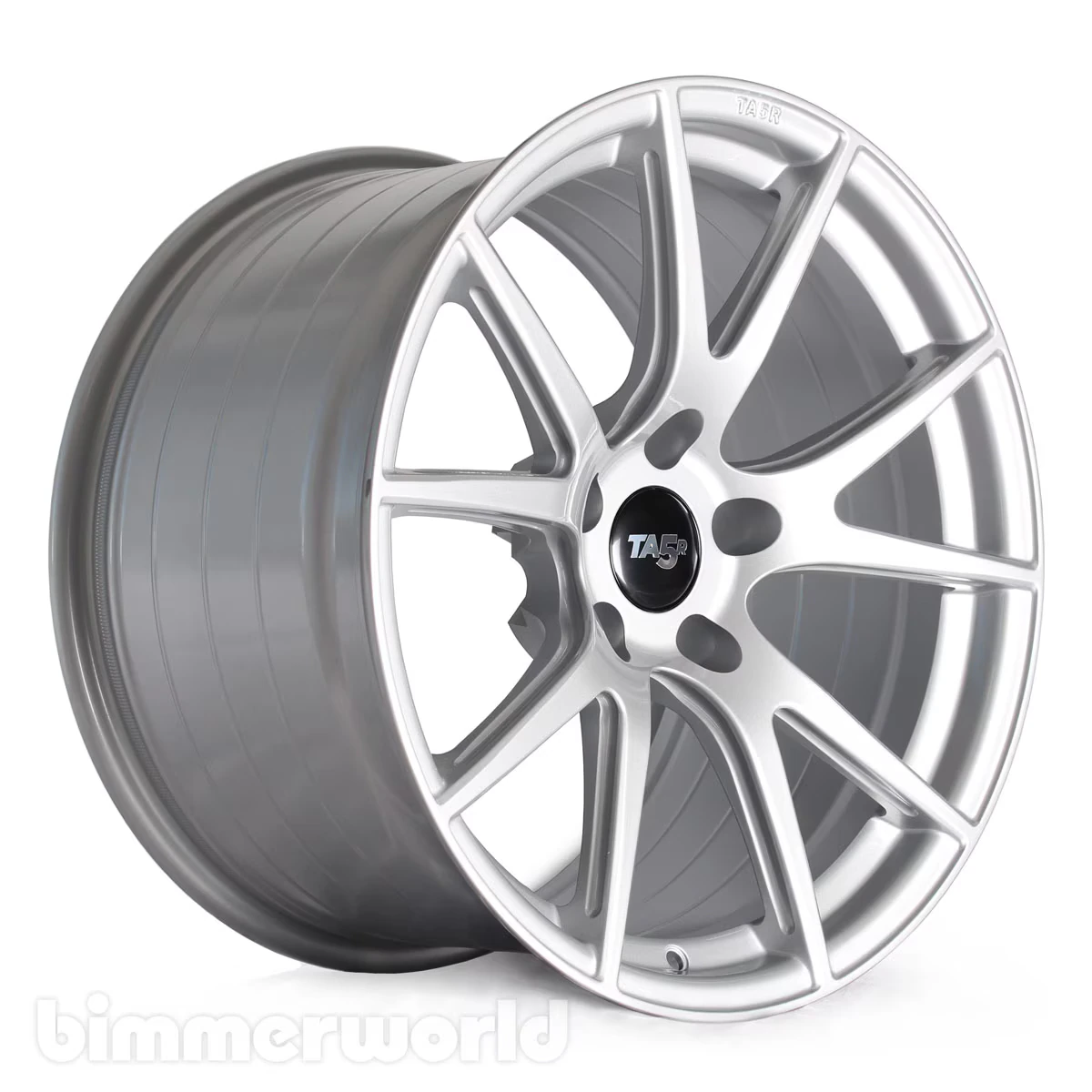

The wide-V-spoke design stretches all the way to the outer lip, a key component to the TA5R's strength. They also allow tremendous caliper clearance behind the spokes. 18" sizes clear all 355mm brakes (Brembo F40, Monobloc, ST40, ST60) plus StopTech ST60 380mm kit.

Thanks to its lightweight barrel and robust face design, the TA5R stands up well against the rigors of endurance racing, as well as your average street potholes. The 18" TA5R features a load rating of 1,587lbs.

TA5R features:
  • Wide V-spoke design out to the outer lip - superior strength
  • Flow-formed, roll-forged barrel - high strength but low weight
  • Reinforced inner lip for added strength over curbs
  • Knurled bead seat reduces tire slippage
  • Huge spoke clearance for big brake kits
  • Closed-face hub maximizes strength in the hub
  • Accepts OE BMW center cap (TA5R cap included)
  • Accepts factory lug bolts, wheel locks, or stud conversions
  • 32mm lug hole accommodates 19mm sockets
  • Protective recessed valve stem pocket
  • Tire pressure monitoring system (TPMS) compatible (not included)
Priced as a set of 4 wheels.

* Fitment Note: we do our best to display wheels that fit your BMW model, based on your model selection. Wheels may be listed that are considered aggressive fitments or tight clearances for a particular model. Many variables must be considered for wheel fitment, especially when using larger wheels or different offsets. These variables include: suspension type and settings, ride height, tire size, bodywork changes, and alignment settings. In some cases, additional parts or modifications may be necessary for fitment that may not be listed in our catalog. Final wheel fitment and clearance is the responsibility of the customer, however, we welcome your questions on fitment, size, offset, or other wheel-related inquiries. Wheel returns are limited to quality issues only.

Need help deciding on a size or offset for your BMW? No problem! Give us a call at 877.639.9648 or email us at [email protected] for assistance. We're your BMW wheel experts and are happy to help.

BMW Fitments:

3 Series
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 325xi
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 328xi
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 330xi
E90 / E91 / E92 / E93 (06-13) > 335i
E90 / E91 / E92 / E93 (06-13) > 335xi
3 Series
F30 / F31 / F34 (12-18) > 320i
F30 / F31 / F34 (12-18) > 320i xDrive
F30 / F31 / F34 (12-18) > 328d
F30 / F31 / F34 (12-18) > 328d xDrive
F30 / F31 / F34 (12-18) > 328i
F30 / F31 / F34 (12-18) > 328i xDrive
F30 / F31 / F34 (12-18) > 330i
F30 / F31 / F34 (12-18) > 330i xDrive
F30 / F31 / F34 (12-18) > 335i
F30 / F31 / F34 (12-18) > 335i xDrive
F30 / F31 / F34 (12-18) > 340i
F30 / F31 / F34 (12-18) > 340i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive
Z Series
E89 (09-16) > Z4 sDrive 28i
E89 (09-16) > Z4 sDrive 30i
E89 (09-16) > Z4 sDrive 35i
E89 (09-16) > Z4 sDrive 35is
