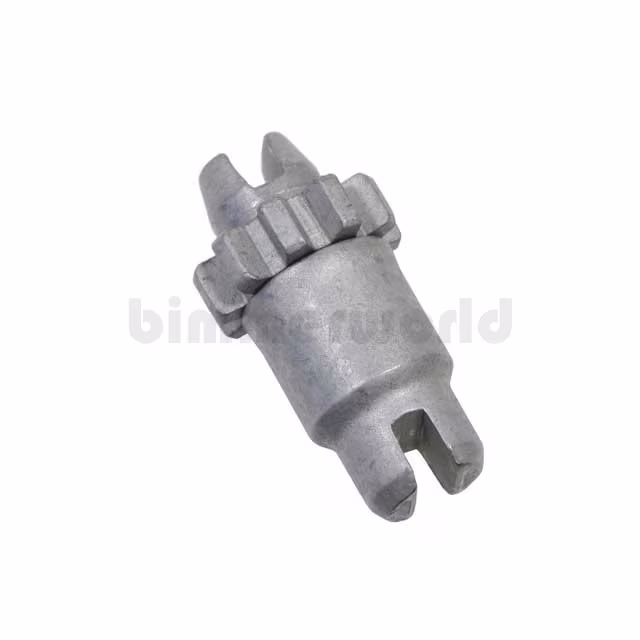

This part is listed by BMW as BMW part number 34416851437 (34 41 6 851 437) and is described as Parking Brake Adjusting Screw, as found on a majority of BMWs.
Is your parking brake not working? Will it not hold your BMW when parked on a hill? Have you already tried adjusting the cable, but the parking brake STILL won't set? This little adjuster screw is likely the culprit! It's located inside the rear brake disc, with the parking brake shoes and is found where the parking brake cable connects.
You'll find two of these little guys -- the adjustment screw for the parking brake cable mechanism -- on just about all BMWs. The 3 series started using them with the E36 M3 (1995-1999) and then used it for some E46 models 2001 and later (including E36 M3, E46, E90, E91, E92, E93, F30, F31, F32, F33, F34, F25, F36, and even F80 M3). If you have a BMW 5 series 1982-2010, BMW 6 series 1977-2010, and BMW 7 Series 1978-2014, you can count on needing one or two of these parking brake shoe adjusters as well. You'll even find this piece on most X1, X3 (thru 2010), X5, X6, MZ3, MZ4 (thru 2008), and Z8 models.
For full BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.
BMW Fitments:
3 Series
E36 (92-99) > M3 (1995)
E36 (92-99) > M3 (96-99)
3 Series
E46 (99-05) > 325xi
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
E46 (99-05) > M3
3 Series
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 325xi
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 328xi
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 330xi
E90 / E91 / E92 / E93 (06-13) > 335d
E90 / E91 / E92 / E93 (06-13) > 335i N54 (07-10)
E90 / E91 / E92 / E93 (06-13) > 335i N55 (11-13)
E90 / E91 / E92 / E93 (06-13) > 335is N54
E90 / E91 / E92 / E93 (06-13) > 335xi N54 (07-10)
E90 / E91 / E92 / E93 (06-13) > 335xi N55 (11-13)
E90 / E91 / E92 / E93 (06-13) > M3
3 Series
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i
F30 / F31 / F34 (2012-2019) > 340i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
3 Series
F80 (2015-2018) > M3 (2015-2018)
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive
4 Series
F82 / F83 (2015-2020) > M4 (2015-2020)
F82 / F83 (2015-2020) > M4 GTS
5 Series
E28 (82-88) > 524td
E28 (82-88) > 528e
E28 (82-88) > 533i
E28 (82-88) > 535i
E28 (82-88) > M5 (87-88)
5 Series
E34 (89-95) > 525i M20
E34 (89-95) > 525i M50
E34 (89-95) > 530i
E34 (89-95) > 535i
E34 (89-95) > 540i
E34 (89-95) > M5 (91-95)
5 Series
E39 (97-03) > 525i
E39 (97-03) > 528i 97-98
E39 (97-03) > 528i 99-00
E39 (97-03) > 530i
E39 (97-03) > 540i
E39 (97-03) > M5 (00-03)
5 Series
E60 / E61 (04-10) > 525i M54 (2004-2005)
E60 / E61 (04-10) > 525i N52 (2006-2007)
E60 / E61 (04-10) > 525xi N52 (2006-2007)
E60 / E61 (04-10) > 528i
E60 / E61 (04-10) > 528xi
E60 / E61 (04-10) > 530i M54 (2004-2005)
E60 / E61 (04-10) > 530i N52 (2006-2007)
E60 / E61 (04-10) > 530xi N52 (2006-2007)
E60 / E61 (04-10) > 535i
E60 / E61 (04-10) > 535xi
E60 / E61 (04-10) > 545i
E60 / E61 (04-10) > 550i
E60 / E61 (04-10) > M5
6 Series
E24 (77-89) > 630CSi
E24 (77-89) > 633CSi
E24 (77-89) > 635CSi
E24 (77-89) > M6
6 Series
E63 / E64 (04-10) > 645Ci
E63 / E64 (04-10) > 650i
E63 / E64 (04-10) > M6
7 Series
E23 (77-87) > 733i
E23 (77-87) > 735i
7 Series
E32 (88-94) > 735i
E32 (88-94) > 735iL
E32 (88-94) > 740i
E32 (88-94) > 740iL
E32 (88-94) > 750iL
7 Series
E38 (95-01) > 740i
E38 (95-01) > 740iL
E38 (95-01) > 750iL
7 Series
E65 / E66 (02-08) > 745Li
E65 / E66 (02-08) > 745i
E65 / E66 (02-08) > 750Li
E65 / E66 (02-08) > 750i
E65 / E66 (02-08) > 760Li
7 Series
F01 / F02 (2009-2015) > 740Li
F01 / F02 (2009-2015) > 740i
F01 / F02 (2009-2015) > 750Li
F01 / F02 (2009-2015) > 750Li xDrive
F01 / F02 (2009-2015) > 750i
F01 / F02 (2009-2015) > 760Li
8 Series
E31 (91-97) > 840Ci
E31 (91-97) > 850CSi
E31 (91-97) > 850Ci
X1 Series
E84 X1 (2013-2015) > X1 28i
E84 X1 (2013-2015) > X1 28i xDrive
E84 X1 (2013-2015) > X1 35i xDrive
X3 Series
E83 X3 (04-10) > X3 2.5i M54 (2004-2005)
E83 X3 (04-10) > X3 3.0i M54 (2004-2006)
E83 X3 (04-10) > X3 3.0si N52 (2007-2010)
X5 Series
E53 X5 (00-06) > X5 3.0i M54
E53 X5 (00-06) > X5 4.4i M62 (99-03)
E53 X5 (00-06) > X5 4.4i N62 (04-06)
E53 X5 (00-06) > X5 4.6is M62
E53 X5 (00-06) > X5 4.8is N62
X5 Series
E70 X5 (07-13) > X5 3.0si (07-10)
E70 X5 (07-13) > X5 4.8i (07-10)
E70 X5 (07-13) > X5 M (10-13)
E70 X5 (07-13) > X5 xDrive35d (09-13)
E70 X5 (07-13) > X5 xDrive35i N55 (11-13)
E70 X5 (07-13) > X5 xDrive50i (11-13)
X5 Series
F15 X5 (2014-2018) > X5 sDrive35i (14-18)
F15 X5 (2014-2018) > X5 xDrive35d (14-18)
F15 X5 (2014-2018) > X5 xDrive35i (14-18)
F15 X5 (2014-2018) > X5 xDrive50i (14-18)
X5 Series
F85 X5 M (2015-2018) > X5 M (15-18)
X6 Series
E71 X6 (2008-2014) > X6 M (10-14)
E71 X6 (2008-2014) > X6 xDrive35i N54 (08-09)
E71 X6 (2008-2014) > X6 xDrive35i N55 (10-13)
E71 X6 (2008-2014) > X6 xDrive50i (08-14)
X6 Series
F16 X6 (2015-2019) > X6 sDrive35i N55 (15-19)
F16 X6 (2015-2019) > X6 xDrive35i N55 (15-19)
F16 X6 (2015-2019) > X6 xDrive50i (15-19)
X6 Series
F86 X6 M (2015-2019) > X6 M (15-19)
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 M - S52
E36/7 / E36/8 Z3 (96-02) > Z3 M - S54
Z Series
E52 Z8 (00-03) > Z8 Roadster (2000-2003)
Z Series
E85 / E86 Z4 (03-08) > Z4 M
