Convert your factory push-on oil lines to a -10 AN fitting. These oil line adapters for E36, E46 M3, E82 135i, or E9X 335i are for fitting -10AN oil cooler lines to the oil filter housing and/or the oil cooler. These adapters are required if you want to run custom lines from your Euro, S54, or N54 oil filter housing. Or if you want to adapt custom lines to your E36 / E46 / E9X oil cooler. Often times the factory rubber lines leak from swaged metal fittings on the line and are expensive to replace. Converting to a braided or PTFE line allows more flexibility in mounting and placement, as well as giving you a more robust hose than the factory piece.

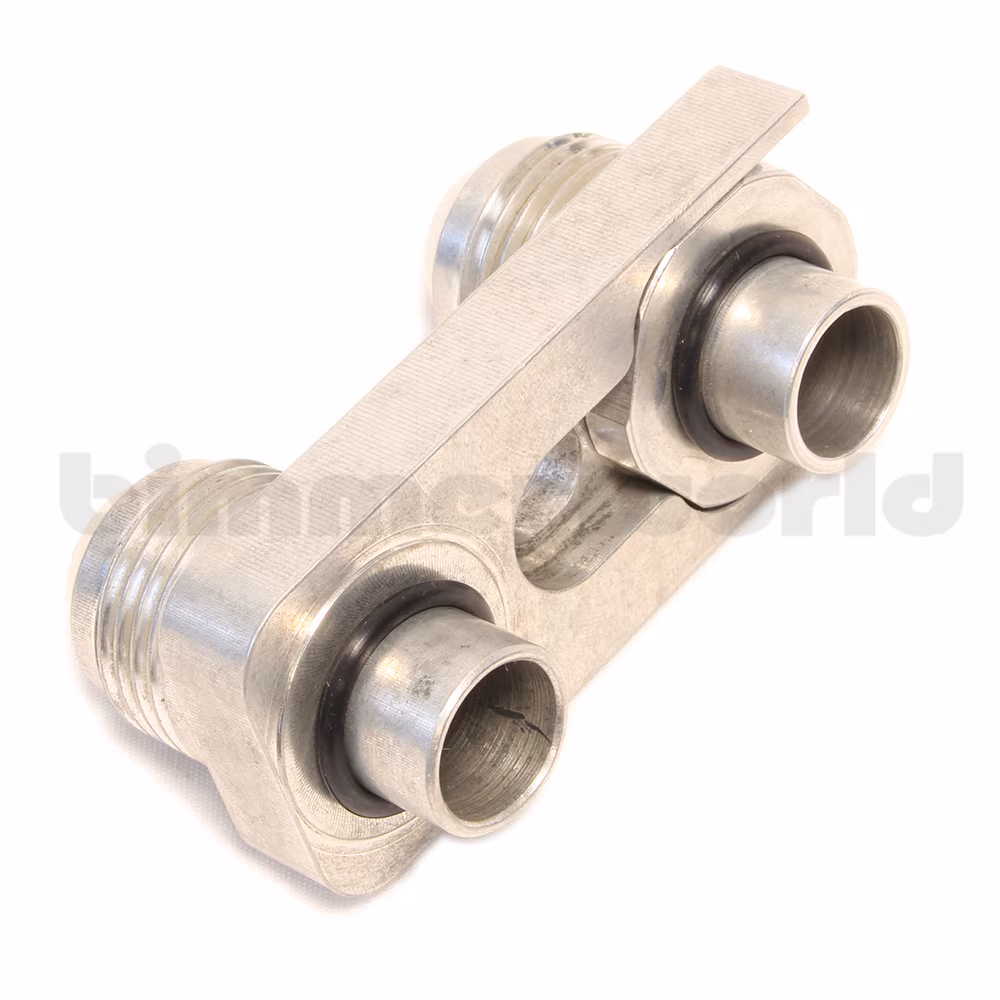

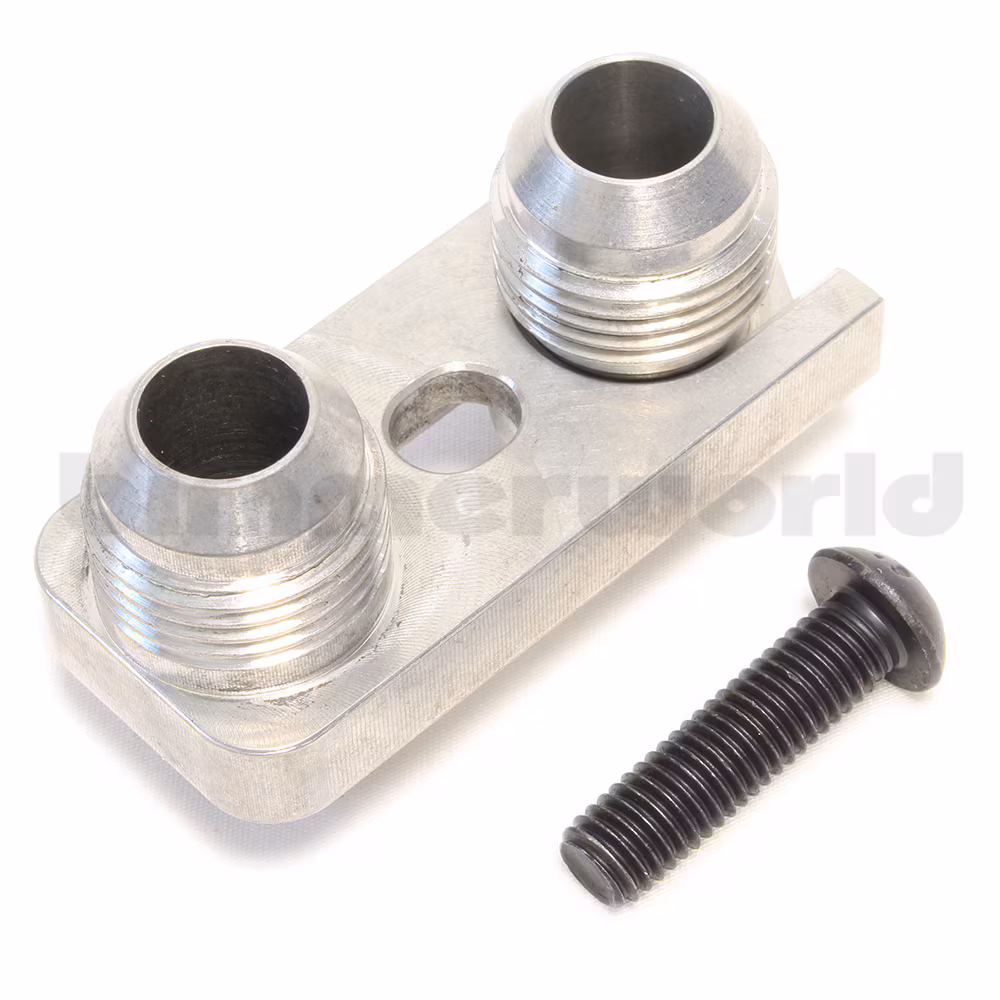

Kit includes two -10AN fittings, two o-rings, mounting bracket, and mounting screw.
Compatible with:
E36 Euro oil filter housing (will not fit with US housing)
E36 Euro oil cooler
E46 M3 S54 oil filter housing
E46 M3 original oil cooler
E46 M3 CSF oil coolers (#8032 and #8240)
E82 135i N54 oil filter housing
E9X 335i N54 oil filter housing
Most aftermarket oil coolers
Your engine must have one of the above oil coolers or filter housings for this to install.
One kit includes fittings, o-rings, and mounting plate to convert one location (either filter housing or heat exchanger).
BMW Fitments:
1 Series
E82 / E88 (08-10) > 135i
E82 (11-12) > 1M Coupe
3 Series
E36 (97-99) > 323ic
E36 (97-99) > 323is
E36 (92-95) > 325i
E36 (92-95) > 325ic
E36 (92-95) > 325is
E36 (96-99) > 328i
E36 (96-99) > 328ic
E36 (96-99) > 328is
E36 (95-99) > M3
3 Series
E46 (99-00) > 323i
E46 (99-00) > 323ci
E46 (01-05) > 325i
E46 (01-06) > 325ci
E46 (01-05) > 325xi
E46 (99-00) > 328i
E46 (99-00) > 328ci
E46 (01-05) > 330i
E46 (01-06) > 330ci
E46 (01-05) > 330xi
E46 (01-06) > M3
3 Series
E90 / E92 / E93 (07-10) > 335i
E90 / E92 / E93 (11-13) > 335is
E90 / E92 / E93 (07-10) > 335xi
