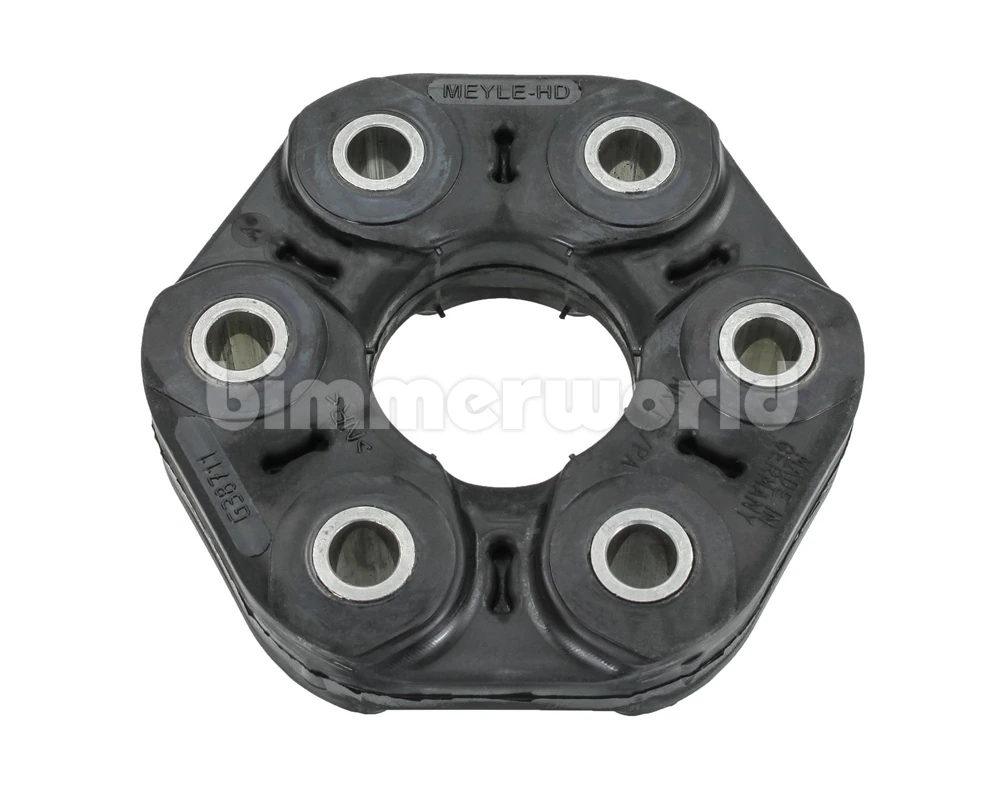

Driveshaft Flex Disc (Guibo), Meyle HD - Many BMWs (See List)

Flex Disc, aka the guibo, for many/most 1984-current BMWs -- This fits a very large number of models, but check the detailed list below carefully before ordering. The flex disc connects the front of the driveshaft to the transmission and provides a buffer to absorb driveline vibrations. The rubber flex disc takes the torque coming out of the transmission and delivers a seamless transition to the driveshaft. But over time the rubber is subjected to constant loading/unloading and it will break down. The rubber is designed to be the weakest link so that the rest of the driveline lasts longer.

Detailed list of BMW fitments for this Guibo / Flex Disc:

2008-2013 E82 BMW 128i - Either Manual or Automatic Transmission
2014-2021 F22 BMW 228i 230i - Either Manual or Automatic Transmission
5/1986-1991 E30 BMW 325e 325es M3 - ** Manual Transmission only
1987-1991 E30 BMW 325ix - Between Transmission & Transfer Case
1996-1998 E36 BMW 328i 328is 328ic - ** Manual Transmission only
1999-2005 E46 BMW 323i 323ci 325i 325ci - ** Automatic & SMG Transmissions only
1999-2005 E46 BMW 328i 328ci 330i 330ci - Either Auto, Manual & SMG
2006+ E90 BMW 325i 328i 330i - Either Manual or Automatic Transmission
2006+ E91 BMW 328i - Either Manual or Automatic Transmission
2007+ E92 BMW 328i - Either Manual or Automatic Transmission
2007+ E93 BMW 328i - Either Manual or Automatic Transmission
2014+ F22 BMW 228i - Either Manual or Automatic Transmission
2012+ F30 BMW 320i 328i 330i - ** Automatic Transmission Only
2016+ F32 BMW 330i 430i - Either Manual or Automatic Transmission
1982-1983 E28 BMW 528e - ** Manual Transmission only
5/1986-1988 E28 BMW 528e - ** Manual Transmission only
1982-1988 E28 BMW 533i 535i 535is M5 - ** Manual Transmission only
1991-1995 E34 BMW 525i - ** Automatic Transmission only
1989-6/1992 E34 BMW 525i - ** Manual Transmission only
1993-1995 E34 BMW 530i - Either Manual or Automatic Transmission
1989-1993 E34 BMW 535i - ** Manual Transmission only
2001-2003 E39 BMW 525i - ** Automatic Transmission only
1997-2003 E39 BMW 528i 530i - Either Manual or Automatic Transmission
1980-1989 E24 BMW 633csi 635csi M6 - ** Manual Transmission only
2011-2016 F25 BMW X3 sDrive 28i, X3 xDrive 28i, X3 xDrive 35i - All
2000-2006 E53 BMW X5 3.0i - for Rear Driveshaft
2000-2003 E53 BMW X5 4.4i X5 4.6is - for Rear Driveshaft
2007-2013 E70 BMW X5 3.0si X5 4.8i X5 xDrive30i X5 xDrive48i - for Rear Driveshaft
1997-2002 Z3 BMW Z3 2.3 Z3 2.5i - ** Automatic Transmission only
1997-2002 Z3 BMW Z3 2.8 Z3 3.0i - Either Manual or Automatic Transmission
2003-2008 Z4 BMW Z4 2.5i - ** Automatic or SMG Transmission only
2003-2008 Z4 BMW Z4 3.0i Z4 3.0si - Either Manual or Automatic Transmission

This guibo is 96mm in overall diameter. If in doubt, check your existing guibo.

Symptoms of a failed guibo will be a dull thunk when dipping in/out of the throttle and during shifts. You may also notice cracks in the rubber around the bolt holes. A great time to replace the guibo, and driveshaft center support bearing, is during a clutch overhaul, short shift kit install, or any time the driveshaft is removed from the car.

This part is manufactured by an aftermarket supplier of European auto parts, including many rubber mounts and bushings. While not carrying OEM status, this part follows the design of the original very closely and uses similar materials. An aftermarket part may even have the same TUV approval as its OEM counterpart. The brand may even be OEM to another manufacturer besides BMW. This aftermarket brand has a two year warranty - the same as Genuine BMW and OEM brands.

We also recommend replacing the 6 self-locking nuts at the same time.

Install note: the flex disc is directional. During install, look for an arrow on the outer rim. The arrow should point towards the flange and indicates the direction the bolt should go. Installing it backwards will cause premature failure of the flex disc.

BMW Fitments:

1 Series
E82 / E88 (08-13) > 128i
2 Series
F22 / F23 (2014+) > 228i
F22 / F23 (2014+) > 228i xDrive
F22 / F23 (2014+) > 230i
3 Series
E30 (84-91) > 325e
E30 (84-91) > 325es
E30 (84-91) > 325i
E30 (84-91) > 325ix
E30 (84-91) > M3
3 Series
E36 (92-99) > 328i
E36 (92-99) > 328ic
E36 (92-99) > 328is
3 Series
E46 (99-05) > 320i
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
3 Series
E90 / E91 / E92 / E93 (06-13) > 323i
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 330i
3 Series
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 330i
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 430i
5 Series
E12 (77-81) > 528i
E12 (77-81) > 530i
5 Series
E28 (82-88) > 528e
E28 (82-88) > 533i
E28 (82-88) > 535i
E28 (82-88) > M5 (87-88)
5 Series
E34 (89-95) > 525i M20
E34 (89-95) > 525i M50
E34 (89-95) > 530i
E34 (89-95) > 535i
5 Series
E39 (97-03) > 525i
E39 (97-03) > 528i 97-98
E39 (97-03) > 528i 99-00
E39 (97-03) > 530i
5 Series
F10 / F11 (11-16) > 528i N20 (2012-2016)
F10 / F11 (11-16) > 528i N52 (2011)
5 Series
G30 (2017-) > 530i
G30 (2017-) > 530i xDrive
6 Series
E24 (77-89) > 633CSi
E24 (77-89) > 635CSi
E24 (77-89) > M6
7 Series
E23 (77-87) > 733i
E23 (77-87) > 735i
7 Series
E32 (88-94) > 735i
X1 Series
E84 X1 (2013-2015) > X1 28i
X3 Series
F25 X3 (2011-2017) > X3 sDrive28i
F25 X3 (2011-2017) > X3 xDrive28d Diesel
F25 X3 (2011-2017) > X3 xDrive28i
F25 X3 (2011-2017) > X3 xDrive35i
X5 Series
E53 X5 (00-06) > X5 3.0i M54
E53 X5 (00-06) > X5 4.4i M62 4.4L (99-03)
E53 X5 (00-06) > X5 4.6is M62
X5 Series
E70 X5 (07-13) > X5 xDrive35i
X5 Series
F15 X5 (2014-2018) > X5 xDrive35i
X6 Series
F16 X6 (2015-2019) > X6 xDrive35i
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 2.5
E36/7 / E36/8 Z3 (96-02) > Z3 2.8 97-98
E36/7 / E36/8 Z3 (96-02) > Z3 2.8 99-00
E36/7 / E36/8 Z3 (96-02) > Z3 3.0
Z Series
E85 / E86 Z4 (03-08) > Z4 2.5i M54
E85 / E86 Z4 (03-08) > Z4 3.0i M54
E85 / E86 Z4 (03-08) > Z4 3.0i N52
E85 / E86 Z4 (03-08) > Z4 3.0si N52
Z Series
E89 Z4 (2009-2016) > Z4 sDrive28i
E89 Z4 (2009-2016) > Z4 sDrive30i
