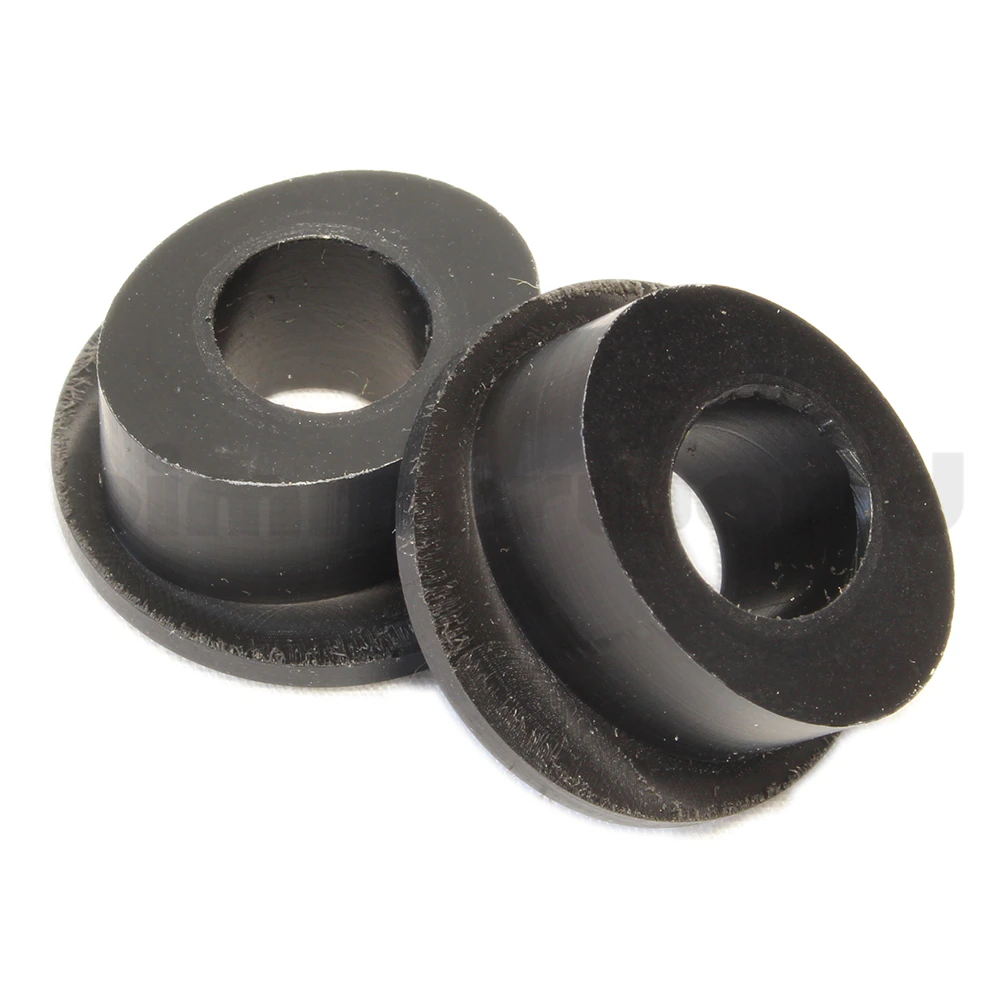

Rogue Engineering Oval Delrin Carrier Bushings - For Manual Shifter

Reduce manual gearbox shifter carrier movement for increased feel and precise shifting

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$24.99

Rogue Engineering Oval Delrin Carrier Bushings will eliminate the common 25 degrees of carrier rotation. These CNC-machined bushings replace the flimsy factory rubber bushing at the front of the aluminum carrier, getting rid of the side-to-side movement of the aluminum shifter carrier.

Tolerances of the RE Delrin carrier bushings can be held to 0.001" (about the width of a human hair) to ensure a perfect fit, thanks to their computer-controlled milling machine. Rogue's high-quality, Teflon-impregnated, and heat-resistant Delrin may be overkill, but RE has a tendency to develop only the best.

Installation requires the removal of the carrier. Note that to install these upgraded bushings, you'll need to remove the complete shifter carrier. This is fairly involved and requires removal of the driveshaft and exhaust to make the clearance. If you are already planning to remove these components than this won't be a big deal, but we mention as getting to the bushings is more involved than some (more basic) shifter installations which often can be done without removal of the carrier. If you are going in there anyways, it's a perfect time to replace the stock oval carrier bushings.

What BMW parts does this replace?
Replaces one of BMW part # 25117507695 (25 11 7 507 695), as well as the older / former BMW part numbers 25111221822 (25 11 1 221 822) and 25111222039 (25 11 1 222 039).

This pair of bushing "halves" replaces one bushing. That means you'll want to order two pairs of bushings halves to replace the two bushings mounting your shift carrier. Be sure to order two, as necessary.

BMW Fitments:
1 Series
E82 / E88 (08-13) > 128i
E82 / E88 (08-13) > 135i N54 (08-10)
E82 / E88 (08-13) > 135i N55 (11-13)
E82 / E88 (08-13) > 135is N55 (11-13)
E82 / E88 (08-13) > 1M (11-12)
2 Series
F22 / F23 (2014-2021) > 228i
F22 / F23 (2014-2021) > 228i xDrive
F22 / F23 (2014-2021) > 230i
F22 / F23 (2014-2021) > 230i xDrive
F22 / F23 (2014-2021) > M235i
F22 / F23 (2014-2021) > M235i xDrive
F22 / F23 (2014-2021) > M240i
F22 / F23 (2014-2021) > M240i xDrive
2 Series
F87 (2016-2021) > M2 Competition S55 (2019+)
F87 (2016-2021) > M2 N55 (2016-2018)
3 Series
E36 (92-99) > 328i
E36 (92-99) > 328ic
E36 (92-99) > 328is
E36 (92-99) > M3 (1995)
E36 (92-99) > M3 (96-99)
3 Series
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > M3
3 Series
E90 / E91 / E92 / E93 (06-13) > 323i
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 335i N54 (07-10)
E90 / E91 / E92 / E93 (06-13) > 335i N55 (11-13)
E90 / E91 / E92 / E93 (06-13) > 335is N54
E90 / E91 / E92 / E93 (06-13) > M3
3 Series
F30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i
F30 / F31 / F34 (2012-2019) > 340i xDrive
3 Series
F80 (2015-2018) > M3 (2015-2018)
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive
4 Series
F82 / F83 (2015-2020) > M4 (2015-2020)
5 Series
E39 (97-03) > 528i 97-98
E39 (97-03) > 528i 99-00
E39 (97-03) > 530i
E39 (97-03) > 540i
E39 (97-03) > M5 (00-03)
5 Series
E60 / E61 (04-10) > 545i
E60 / E61 (04-10) > 550i
E60 / E61 (04-10) > M5
5 Series
F10 / F11 (11-16) > 535i
F10 / F11 (11-16) > 550i
F10 / F11 (11-16) > M5 (2013-2016)
6 Series
E63 / E64 (04-10) > 645Ci
E63 / E64 (04-10) > 650i
E63 / E64 (04-10) > M6
6 Series
F12 / F13 (12-18) > 650i
F12 / F13 (12-18) > M6
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 2.8 97-98
E36/7 / E36/8 Z3 (96-02) > Z3 2.8 99-00
E36/7 / E36/8 Z3 (96-02) > Z3 3.0
E36/7 / E36/8 Z3 (96-02) > Z3 M - S52
E36/7 / E36/8 Z3 (96-02) > Z3 M - S54
Z Series
E85 / E86 Z4 (03-08) > Z4 2.5i M54
E85 / E86 Z4 (03-08) > Z4 3.0i N52
Z Series
E89 Z4 (2009-2016) > Z4 sDrive28i
E89 Z4 (2009-2016) > Z4 sDrive30i
E89 Z4 (2009-2016) > Z4 sDrive35i
