xDrive Transfer Case, BMW New - F22, F3X, F10, F06/F13, F02 xDrive AWD

New factory replacement AWD transfer case for most applications up to 2015

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

Typically ships in 4-6 business days.

  •

Price:
$5,799.99

This part is listed by BMW as BMW part number 27108643149 (27 10 8 643 149) and is described as a new AWD transfer case for F22 2-series xDrive, F30 3-series xDrive, F32 4-series xDrive, F10 5-series, F06/F13 6-series, and F01/F02 7-series xDrive models (ATC35L).

Specific Application Notes:
228iX/M235iX: up to 7/2015 and requires new Guibo (#26117610061)
M240iX: requires new Guibo (#26117610061)
320iX/328dX/328iX/335iX: up to 7/2015 and requires new Guibo (#26117610061)
330iX: all production dates
340iX: up to 7/2015
428iX/435iX: up to 7/2015 and requires new Guibo (#26117610061)
430iX: up to 7/2015
440iX: requires new Guibo (#26117610061)
535iX/550iX: from 9/2011-2013
535dX: requires new Guibo (#26117610061)
640iX/650iX: 2012-2014 and requires new Guibo (#26117610061)
740iX/750iX: 2013-2015 and requires new Guibo (#26117610061)

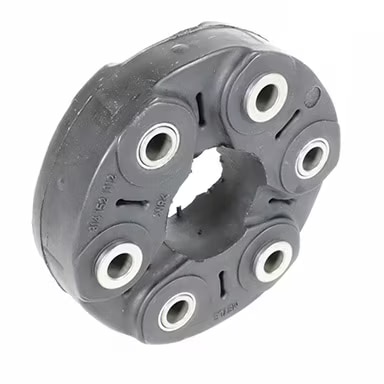

Most models require a new Guibo Flex Disc - BMW part #26117610061. See Related Items below.

The transfer case redirects power from the back to the transmission to the front of the car for AWD operation. The transfer case has been serviceable with BMW DTF or high-quality GL-4 fluid but lack of maintenance will wear out the internal clutches and require a rebuild or complete replacement.

This is a NEW factory replacement transfer case, however, a core charge still applies (BMW needs the cores). Price shown includes $1,149.50 core charge.

A core charge applies to this purchase. The supply of original parts for rebuilding keeps the final purchase price low. The core must match the part that was supplied in terms of fitment, type, application, accessories, and hardware. Damaged or modified cores will not receive a refund. A core charge can only be refunded once the core has been inspected and approved. Click here for our Core Policy.

This is the very latest version of the Genuine BMW transfer case and replaces previous BMW part numbers 27 10 5 A37 1F2, 27108643149, 27108623346, 27107505374, 27107649782, 27107643756, 27107639262, 27107636485, 27107636178, 27107617503, 27107629176, 27107622018, 27108612556, 27107649725.

This is a Genuine BMW xDrive Transfer Case with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

BMW Fitments:

2 Series
F22 / F23 (2014+) > 228i xDrive
F22 / F23 (2014+) > 230i xDrive
F22 / F23 (2014+) > M235i xDrive
F22 / F23 (2014+) > M240i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i xDrive
5 Series
F10 / F11 (11-16) > 535d
F10 / F11 (11-16) > 535d xDrive
F10 / F11 (11-16) > 535i xDrive
F10 / F11 (11-16) > 550i xDrive
6 Series
F12 / F13 (12-18) > 640i
F12 / F13 (12-18) > 650i xDrive
7 Series
F01 / F02 (2009-2015) > 740Li
F01 / F02 (2009-2015) > 740i
F01 / F02 (2009-2015) > 750Li xDrive
