xDrive Transfer Case Rebuild Kit, OEM - F22, F3X, F10, F06/F13, F02 xDrive AWD

Complete rebuild kit  for the AWD transfer case for most applications up to 2015

★ July Sale! Price includes 20% OFF for a limited time! ★

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$1,147.99

This kit includes all of the components to rebuild the xDrive Transfer Case, BMW part number 27105A371F2 (27 10 5 A37 1F2). Fitments include F22 2-series xDrive, F30 3-series xDrive, F32 4-series xDrive, F10 5-series, F06/F13 6-series, and F01/F02 7-series xDrive models (ATC35L).

Specific Application Notes:
228iX/M235iX: up to 7/2015 and requires new Guibo (#26117610061)
230iX: all production dates
M240iX: requires new Guibo (#26117610061)
320iX/328dX/328iX/335iX: up to 7/2015 and requires new Guibo (#26117610061)
330iX: all production dates
340iX: up to 7/2015
428iX/435iX: up to 7/2015 and requires new Guibo (#26117610061)
430iX: up to 7/2015
440iX: requires new Guibo (#26117610061)
535iX/550iX: from 9/2011-2013
535dX: requires new Guibo (#26117610061)
640iX/650iX: 2012-2014 and requires new Guibo (#26117610061)
740iX/750iX: 2013-2015 and requires new Guibo (#26117610061)

Most models require a new rubber support mount and a new output flange flex disc. See Related Items below.

The transfer case redirects power from the back to the transmission to the front of the car for AWD operation. The transfer case is serviceable with BMW DTF or high-quality GL-4 fluid but lack of maintenance will wear out the internal clutches and require a rebuild or complete replacement.

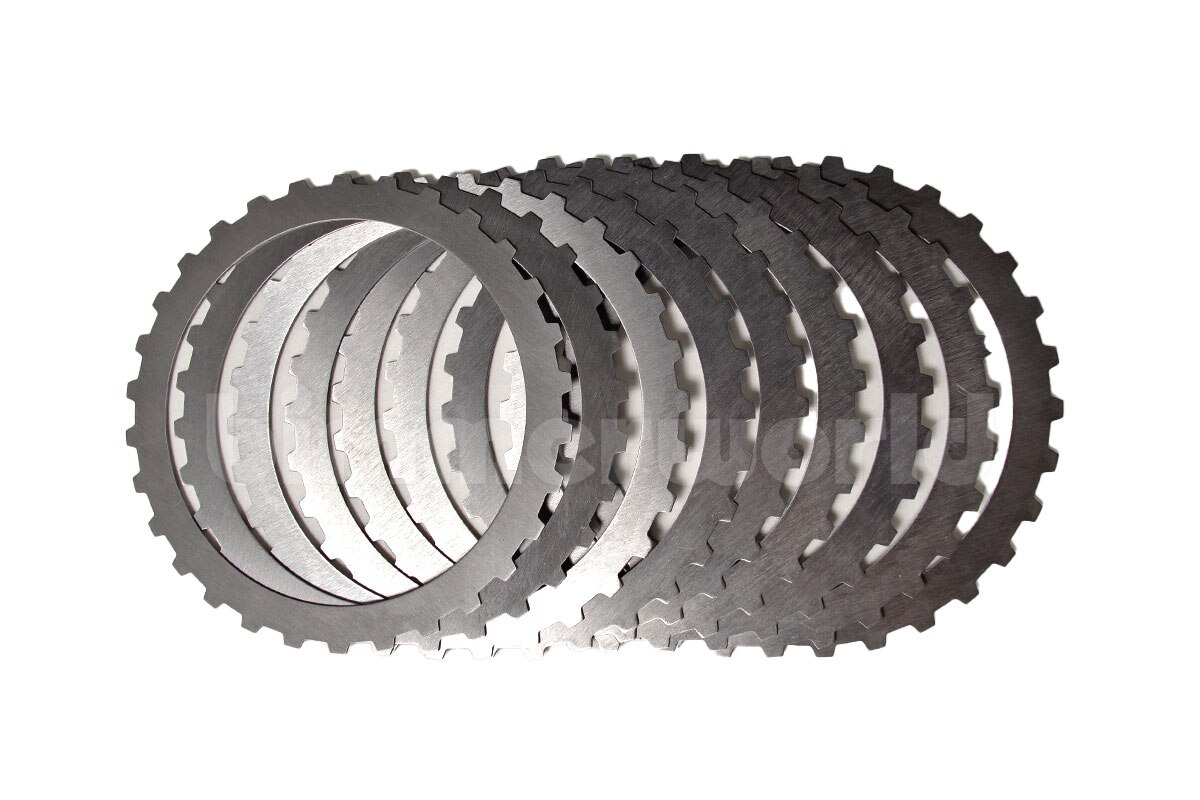

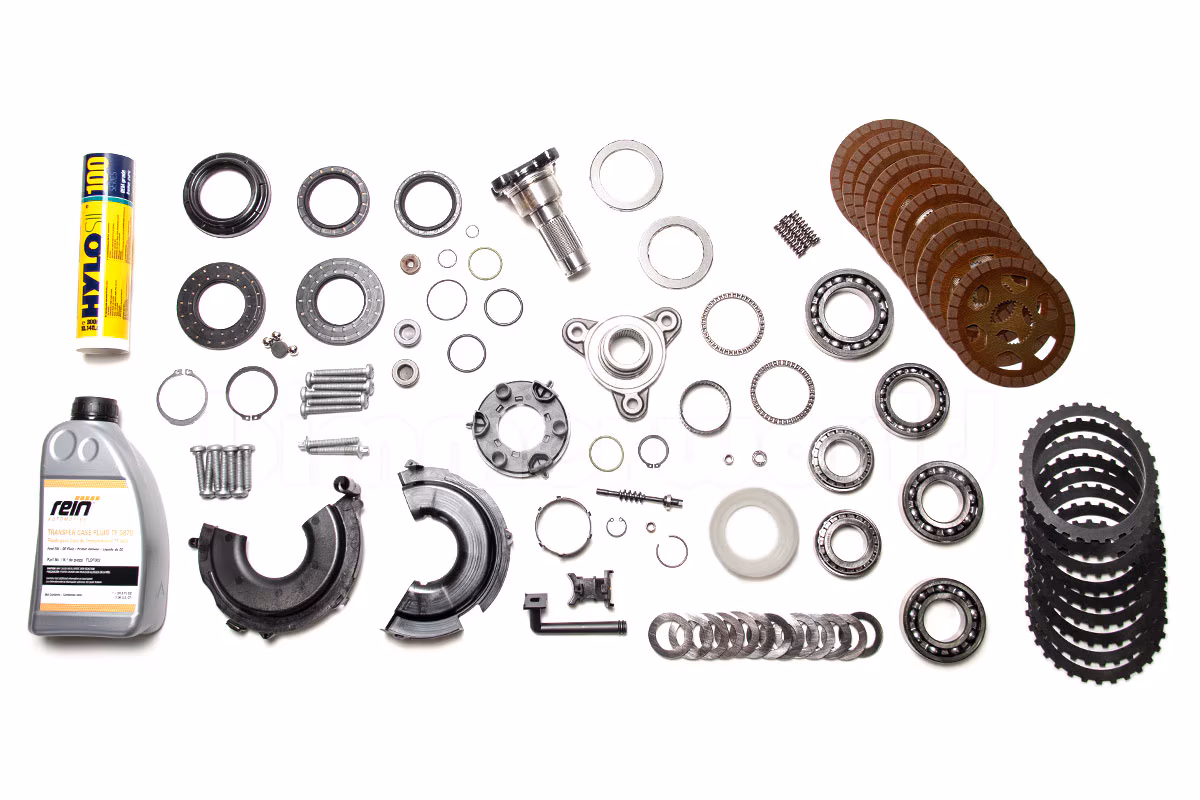

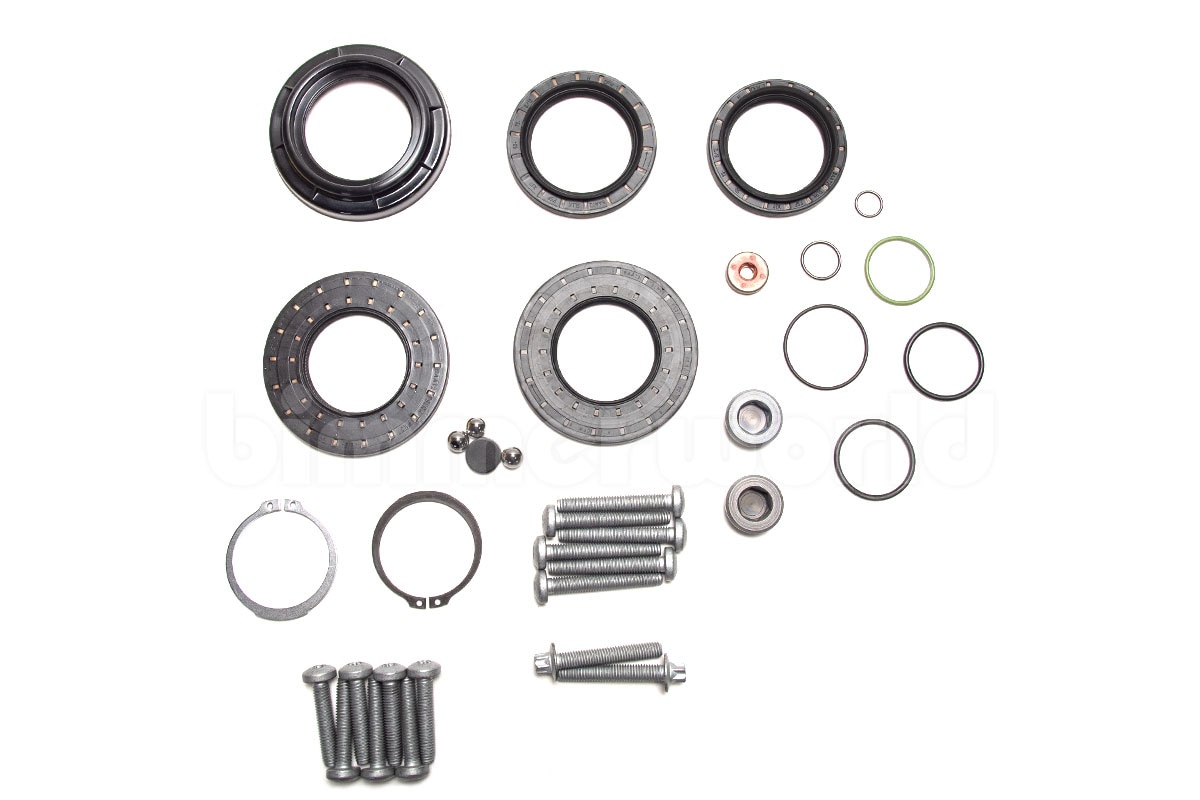

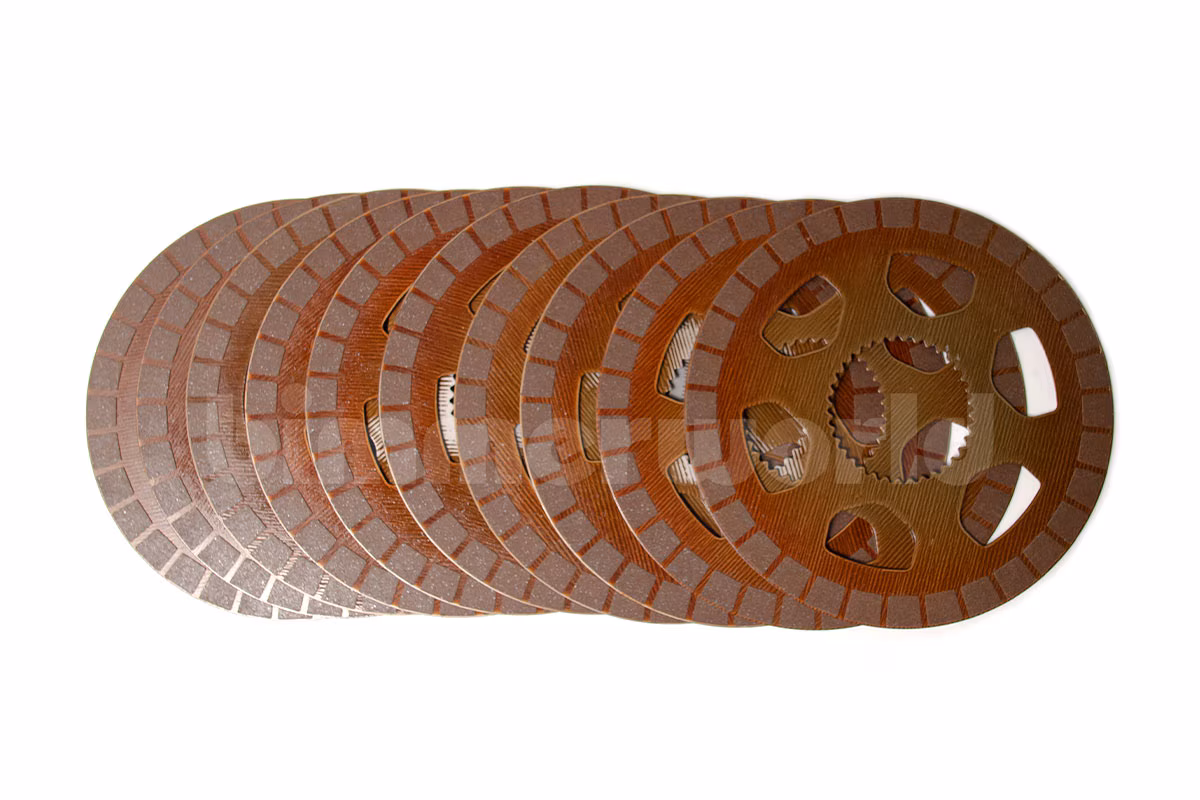

This kit includes ALL of the major components needed to rebuild a ATC35L transfer case. Included are bearings, clutch packs, shims, magnets, retainers, hardware, seals, and other necessary internal components. Rebuilding is a more cost-effective route than buying a new BMW part or sourcing a used unit with questionable internals. All bearings and clutch pieces are new and won't be damaged from heat or oil starvation. Also as a rebuild you don't have to worry about sending back a core unit for credit.

Professional installation required.

This kit is compatible with previous BMW part numbers 27 10 5 A37 1F2, 27108643149, 27108623346, 27107505374, 27107649782, 27107643756, 27107639262, 27107636485, 27107636178, 27107617503, 27107629176, 27107622018, 27108612556, 27107649725.

This kit is assembled by an OE supplier to BMW for multiple driveline components. As OEM parts they meet all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This kit has a four year warranty.

BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i xDrive
F22 / F23 (2014-2021) > 230i xDrive
F22 / F23 (2014-2021) > M235i xDrive
F22 / F23 (2014-2021) > M240i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i xDrive
5 Series
F10 / F11 (11-16) > 535d
F10 / F11 (11-16) > 535d xDrive
F10 / F11 (11-16) > 535i xDrive
F10 / F11 (11-16) > 550i xDrive
6 Series
F12 / F13 (12-18) > 640i
F12 / F13 (12-18) > 650i xDrive
7 Series
F01 / F02 (2009-2015) > 740Li
F01 / F02 (2009-2015) > 740i
F01 / F02 (2009-2015) > 750Li xDrive
