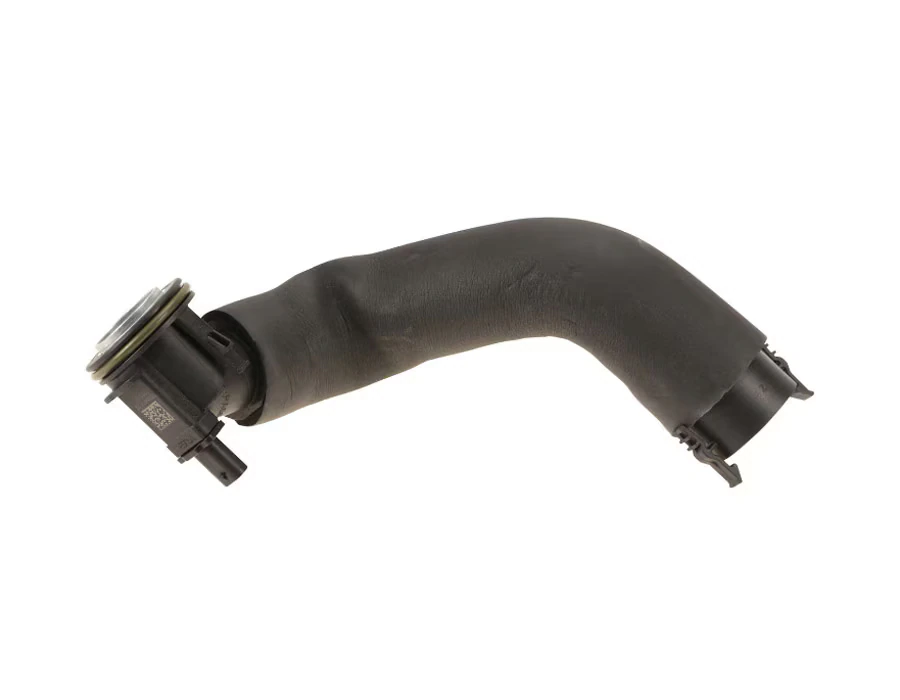

Crankcase Ventilation Hose from the valve cover to the turbo on N20/N26 engines used in F22 228i, F30 320i/328i, F32 428i, F10 528i, F25 X3, F26 X4, and E89 Z4 28i models.
The crankcase vent system is responsible for separating oil from the air inside the engine and air intake. Liquid oil is returned to the oil pan while oil vapors are sent to the turbo and intake via this tube to be burned up during the combustion cycle. It's also known as a a PCV system. Too much oil in the intake air lowers the effective fuel octane, leads to drivability issues, and causes increased emissions. A completely blocked CCV has the potential for very serious engine or turbo failure (hydrolock) if liquid oil ends up in the intake.
Signs of a failing CCV include: whistling noises in the intake, blueish smoke in the exhaust, high oil consumption, and thick white or yellow gunk under the oil cap.
This is a Genuine BMW vent hose with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.
BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i
F22 / F23 (2014-2021) > 228i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
5 Series
F10 / F11 (11-16) > 528i N20 (2012-2016)
F10 / F11 (11-16) > 528i xDrive N20 (2012-2016)
X1 Series
E84 X1 (2013-2015) > X1 28i
E84 X1 (2013-2015) > X1 28i xDrive
X3 Series
F25 X3 (2011-2017) > X3 sDrive28i
F25 X3 (2011-2017) > X3 xDrive28i
X4 Series
F26 X4 (2015-2018) > X4 28i xDrive
Z Series
E89 Z4 (2009-2016) > Z4 sDrive28i
