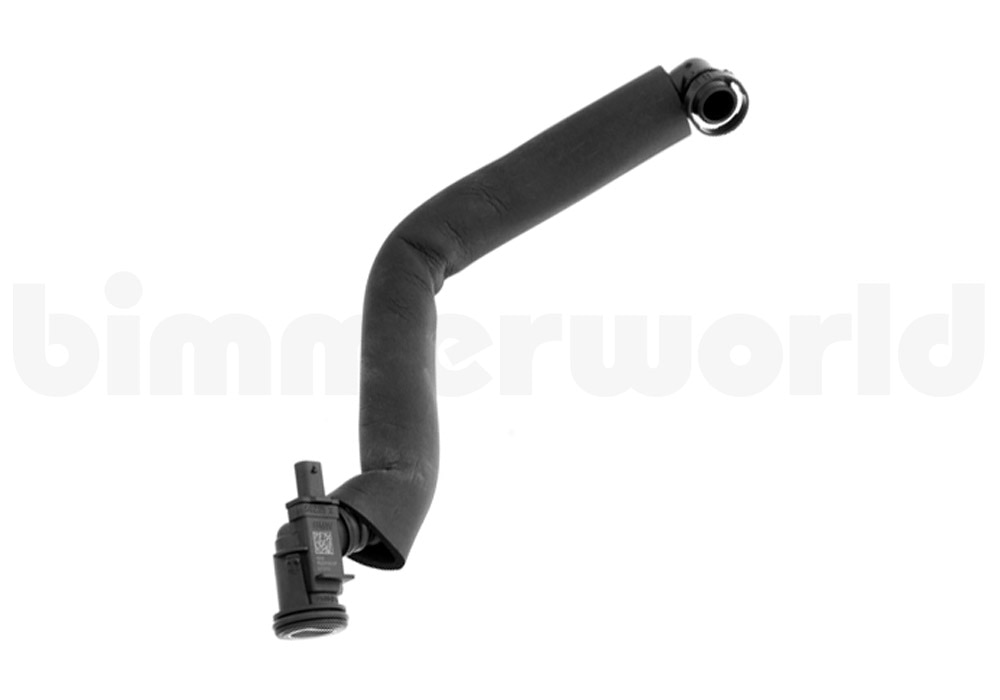

Crankcase Vent Hose (Heated), BMW - 230i/330i/430i/530i, X3/X4/Z4 30i, B46

Outlet hose from valve cover to intake pipe is a Genuine replacement for BMW part #11157623745

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$62.85

This part is listed by BMW as BMW part number 11157623745 (11 15 7 623 745) and is described as the vent outlet hose from the valve cover to the turbocharger duct on B46 engines used in F22 / G42 230i, F30 / G20 330i, F32 / G22 430i, G30 530i, G01 X3 30i, G02 X4 30i, and G29 Z4 30i. This covers both B46A and B46D engines. This hose has an electrical connection for a small heater circuit that prevents the oil vapor and droplets from turning into a sludge in cold climates (aka Blow-by Heater).

The crankcase vent system is responsible for separating oil from the air inside the engine and air intake. Liquid oil is returned to the oil pan while oil vapors are sent to the intake (via the turbo) to be burned up during the combustion cycle. It's also known as a a PCV, CCV, and oil separator system. Too much oil in the intake air lowers the effective fuel octane, leads to drivability issues, and causes increased emissions. A completely blocked CCV has the potential for very serious engine failure (hydrolock) if liquid oil ends up in the turbo or intake. Signs of a failing CCV include: whistling noises in the intake, blueish smoke in the exhaust, high oil consumption, and thick white or yellow gunk under the oil cap.

This is a Genuine BMW B46 CCV hose with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

For full BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.



BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 230i
F22 / F23 (2014-2021) > 230i xDrive
2 Series
G42 / G43 (2022+) > 230i
G42 / G43 (2022+) > 230i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 330i
F30 / F31 / F34 (2012-2019) > 330i xDrive
3 Series
G20 (2019+) > 330i
G20 (2019+) > 330i xDrive
4 Series
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
4 Series
G22 / G23 (2021+) > 430i
G22 / G23 (2021+) > 430i xDrive
5 Series
G30 (2017-2023) > 530i
G30 (2017-2023) > 530i B46D (2020-2023)
G30 (2017-2023) > 530i xDrive
G30 (2017-2023) > 530i xDrive B46D (2020-2023)
X3 Series
G01 X3 (2018-2024) > X3 sDrive30i
G01 X3 (2018-2024) > X3 sDrive30i (2020-2024)
G01 X3 (2018-2024) > X3 xDrive30i
G01 X3 (2018-2024) > X3 xDrive30i (2020-2024)
X4 Series
G02 X4 (2019-2024) > X4 xDrive30i
G02 X4 (2019-2024) > X4 xDrive30i (2020-2025)
Z Series
G29 Z4 (2019-2025) > Z4 sDrive30i
