Bottom-End Gasket Set, Elring - E70 X5, E71 X6

Elring Bottom-End Gasket Set - N63/S63 X5/X6

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

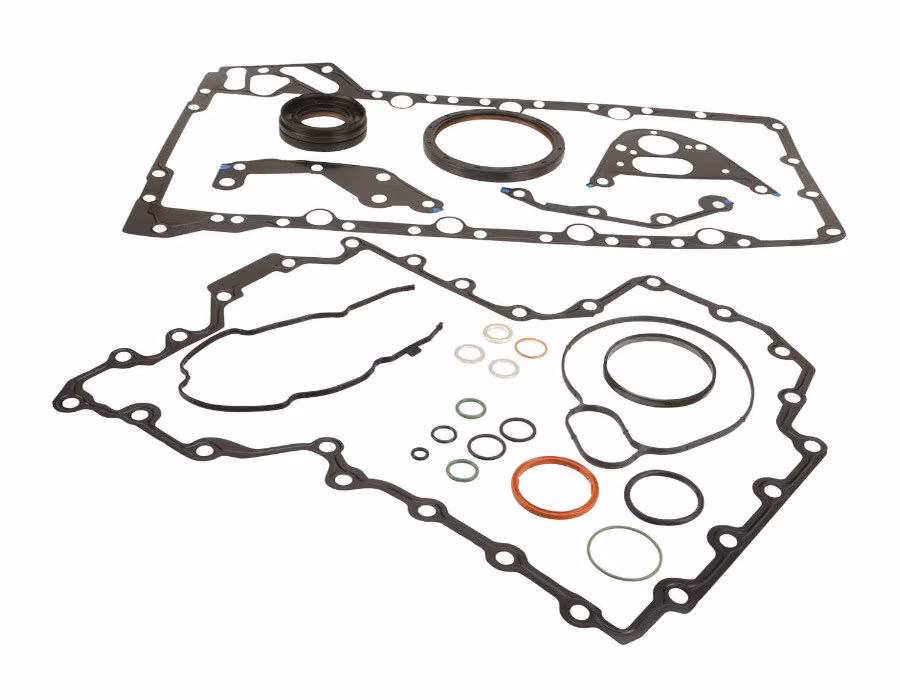

Complete bottom-end/engine block gasket set for E70 X5 50i, X5M, E71 X6 50i, X6M engine.

This OEM bottom end gasket set will be invaluable when working in the oil pan and timing cover of the N63 and S63 V8. This set includes all of the major gaskets, o-rings, and seals found in the bottom half of the engine up to the upper timing cover (see detailed parts list below). This kit saves you both time and money because you won't be without a crucial gasket to finish the job. It's like having your own BMW parts counter in a box! This is the perfect addition to any job on the lower half of the engine - oil pan gasket, rod bearings, rear main seal, or during an engine rebuild. These are all OEM gaskets so the quality and fitment are exactly what you expect.

N63/S63 lower gasket set includes:
1 x 07119963225, coolant drain plug gasket ring
1 x 07119963308, oil drain plug gasket ring
1 x 11137566644, upper oil pan gasket
1 x 11137566808, lower oil pan gasket
1 x 11147566411, front timing case gasket set (3 total)
1 x 11147647381, front crankshaft seal
1 x 11148483798, rear main seal with cover
2 x 11317550461, timing tensioner gasket ring
1 x 11417508288, oil pipe o-ring
1 x 11417562090, oil suction pipe profile gasket
1 x 11421713597, oil pipe o-ring
1 x 11421741129, oil pipe o-ring
2 x 11427578079, oil return o-ring
1 x 11517549445, water pump profile gasket
1 x 11517572792, water pipe o-ring
1 x 11531440192, thermostat gasket ring
1 x 11537557522, oil filter o-ring
1 x 12611744292, oil level sensor gasket ring

Note that this gasket set fits multiple years and models and some extra parts may be included that you won't use. Conversely, certain related items that should be replaced are not included. This may include single-use bolts, belts, tensioners, coolant hoses, and other "while you're in there" items. See below for some of these Related Items.

This is an OEM Bottom-End Gasket Set for N63/S63 engines manufactured by Elring Klinger - an original supplier to BMW for many gaskets and seals. As an OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.

BMW Fitments:

X5 Series
E70 X5 (07-13) > X5 M
E70 X5 (07-13) > X5 xDrive50i
X6 Series
E71 X6 (08-14) > X6 M
E71 X6 (08-14) > X6 xDrive50i
