Bottom-End Gasket Set, Elring - E34 530i/540i, E39 540i, E32 740i, E38 740i, E31 840ci

Elring Bottom-End Gasket Set - M60/M62

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$118.99

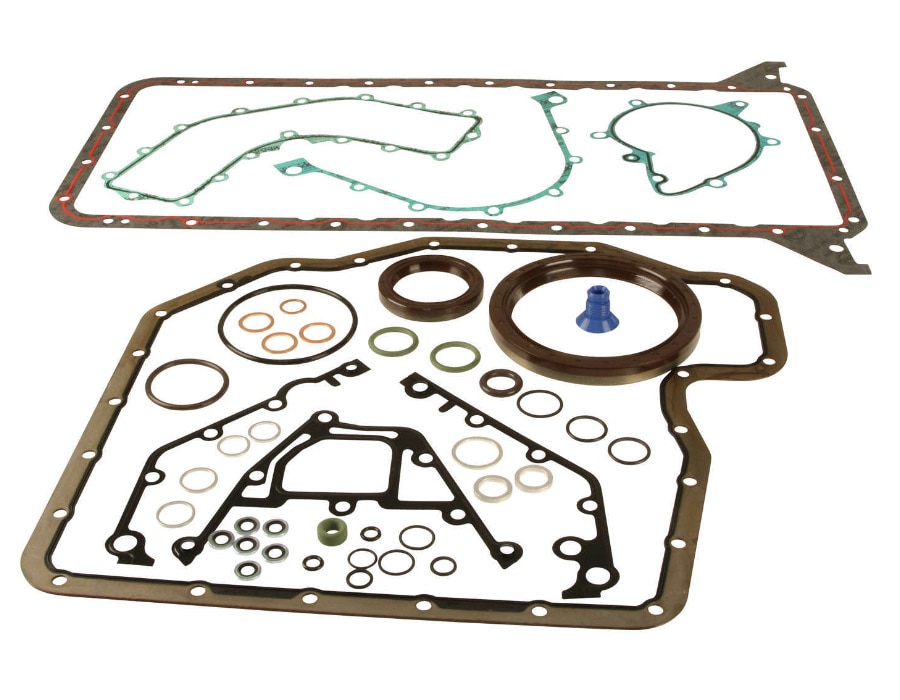

This bottom end gasket set will be invaluable when working in the engine block, crankcase, and oil pan area of the E34 530i/540i, 1997-1998 E39 540i, E32 740i, 1997-1998 E38 740i, and 1995-1998 E31 840ci. This set includes all of the major gaskets, o-rings, and seals found in the bottom half of the M62TU. This kit saves you both time and money because you won't be without a crucial gasket to finish the job. It's like having your own BMW parts counter in a box! This is the perfect addition to any job on the lower half of the engine - oil pan gasket, rod bearings, rear main seal, or during an engine rebuild.

This 540i/740i/840ci bottom end gasket set includes -
1 x 07119906363, timing chain rail o-ring
1 x 11141736758, timing chain rail gasket ring
2 x 11421713597, timing & oil pump o-ring
1 x 07119963355, timing chain tensioner gasket ring
1 x 07119963151, oil drain plug gasket ring
2 x 07119963200, coolant drain gasket ring
2 x 07119963225, screw plug gasket ring
2 x 07119963252, screw plug gasket ring
3 x 07119963276, 16x22mm gasket ring
1 x 11131436324, lower oil pan gasket
1 x 11131742109, upper oil pan gasket
1 x 11141710247, rear main seal
1 x 11141736521, rear main seal cover gasket
1 x 11141275466, front crankshaft seal
6 x 11141435968, rear main seal cover washer gasket
1 x 11141436978, front timing cover gasket set
1 x 11141729836, rear cover gasket
1 x 11151747048, oil separator lower bushing
1 x 11421288890, oil pump tube o-ring
2 x 11421702905, oil filter housing o-ring
2 x 11421741129, control valve & oil tube o-ring
1 x 11431707164, dipstick tube o-ring
2 x 11131717666, dipstick tube o-ring
1 x 11511705408, thermostat gasket ring
1 x 11511731372, water pump gasket
2 x 12311718712, engine mount o-ring
1 x 12611277129, oil sensor gasket ring

Because this kit fits multiple models and model years, parts may be included that will not be used on your particular car. It is not unusual to have item(s) left over.

This is an OEM Bottom-End Gasket Set for M60/M62 engines manufactured by Elring Klinger - an original supplier to BMW for many gaskets and seals. As an OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.

BMW Fitments:

5 Series
E34 (89-95) > 530i
E34 (89-95) > 540i
5 Series
E39 (97-03) > 540i
7 Series
E32 (88-94) > 740i
E32 (88-94) > 740iL
7 Series
E38 (95-01) > 740i
E38 (95-01) > 740iL
8 Series
E31 (91-97) > 840Ci
