Engine Block Gasket Set, BMW - N63, N63TU

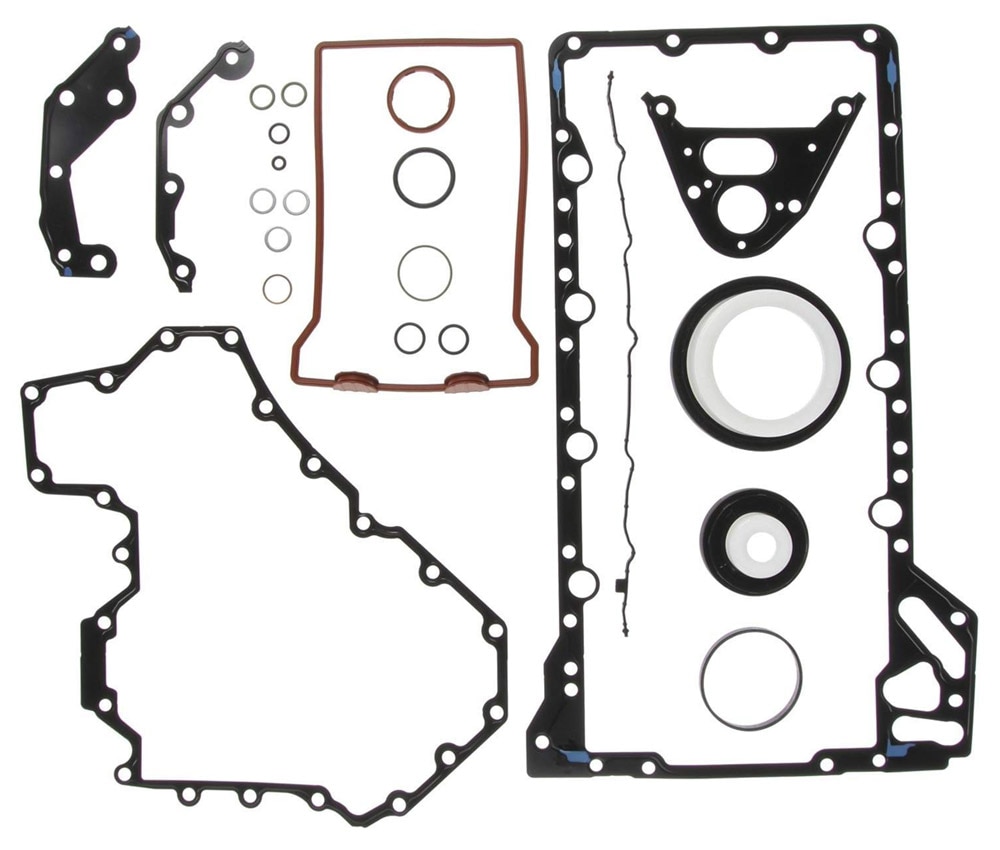

Complete bottom-end/engine block gasket set for N63A and N63TU engines.

This OEM bottom end gasket set will be invaluable when working in the oil pan and timing cover of the N63. This set includes all of the major gaskets, o-rings, and seals found in the bottom half of the engine up to the upper timing cover (see detailed parts list below). This kit saves you both time and money because you won't be without a crucial gasket to finish the job. It's like having your own BMW parts counter in a box! This is the perfect addition to any job on the lower half of the engine - timing chains, oil pan gasket, rod bearings, rear main seal, or during an engine rebuild. These are all OEM gaskets so the quality and fitment are exactly what you expect.

N63 lower gasket set includes:
1 x 07119963225, Coolant Drain Gasket Ring (N63A only)
1 x 07119963308, Oil Drain Plug Gasket Ring
1 x 11137566644, Upper Oil Pan Gasket (AWD)
1 x 11137570705, Upper Oil Pan Gasket (RWD)
1 x 11147566411, Timing Cover Gaskets
1 x 11147647380, Front Crankshaft Seal
1 x 11148483798, Rear Main Seal with Cover
2 x 11317550461, Chain Guide Rail Gasket Ring
1 x 11417508288, Oil Pipe O-Ring
1 x 11417562090, Oil Suction Pipe Profile Gasket
1 x 11421713597, Oil Pipe O-Ring
1 x 11421741129, Oil Pipe O-Ring
2 x 11427578079, Turbo Cooling Return Pipe O-Ring
1 x 11517549445, Water Pump Profile Gasket
1 x 11517572792, Water Pump O-Ring
1 x 11531440192, Thermostat O-Ring
1 x 11537557522, Oil Filter Plug O-Ring
1 x 12611744292, Oil Level Sensor O-Ring (N63A only)

Note that this gasket set fits multiple years and models and some extra parts may be included that you won't use. Conversely, certain related items that should be replaced are not included - notably the oil pan gasket between the upper and lower pans. This may also include single-use bolts, belts, tensioners, coolant hoses, and other "while you're in there" items. See below for some of these Related Items.

This is a Genuine BMW bottom-end gasket set for N63 engines with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

BMW Fitments:

5 Series
F10 / F11 (11-16) > 550i
F10 / F11 (11-16) > 550i xDrive
6 Series
F12 / F13 (12-18) > 650i
F12 / F13 (12-18) > 650i xDrive
7 Series
F01 / F02 (2009-2015) > 750Li
F01 / F02 (2009-2015) > 750Li xDrive
F01 / F02 (2009-2015) > 750i
X5 Series
F15 X5 (2014-2018) > X5 xDrive50i
X6 Series
F16 X6 (2015-2019) > X6 xDrive50i
