Bottom-End Gasket Set, Elring - F22 228iX, F30 328iX, F32 428iX, X1/X3/X4 28iX, N20/N26 xDrive

All of the gaskets you need to re-seal the engine block

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$98.99

Complete bottom-end/engine block gasket set for N20 & N26 engine used in xDrive models in 2012-2016 BMW 228i/328i/428i/528i and X1/X3/X4 28i.

This OEM bottom end gasket set will be invaluable when working in the oil pan and timing cover of the N20. This set includes all of the major gaskets, o-rings, and seals found in the bottom half of the engine up to the upper timing cover (see detailed parts list below). This kit saves you both time and money because you won't be without a crucial gasket to finish the job. It's like having your own BMW parts counter in a box! This is the perfect addition to any job on the lower half of the engine - oil pan gasket, rod bearings, rear main seal, or during an engine rebuild. These are all OEM gaskets so the quality and fitment are exactly what you expect.

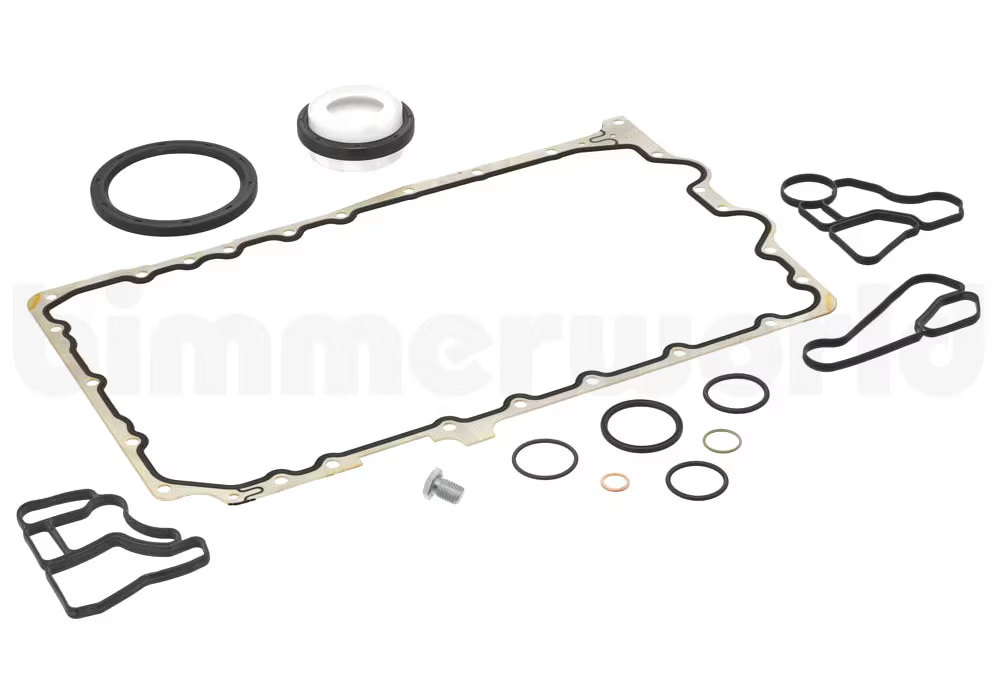

N20 lower gasket set includes:
oil pan gasket
oil filter housing profile gasket*
oil heat exchanger profile
front crankshaft seal
rear main seal
hydraulic valve o-ring (green)
oil pressure sensor seal ring
oil condition sensor o-ring
oil pan drain plug with crush washer

Note that this gasket set fits multiple years and models and some extra parts may be included that you won't use. Conversely, certain related items that should be replaced are not included. This may include single-use bolts, belts, tensioners, coolant hoses, and other "while you're in there" items. See below for some of these Related Items.

*this kit includes a profile gasket for both aluminum and plastic oil filter housings.

This is an OEM Bottom-End Gasket Set for N20 engines manufactured by Elring Klinger - an original supplier to BMW for many gaskets and seals. As an OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.



BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i xDrive
5 Series
F10 / F11 (11-16) > 528i xDrive N20 (2012-2016)
X1 Series
E84 X1 (2013-2015) > X1 28i xDrive
X3 Series
F25 X3 (2011-2017) > X3 xDrive28i
X4 Series
F26 X4 (2015-2018) > X4 28i xDrive
