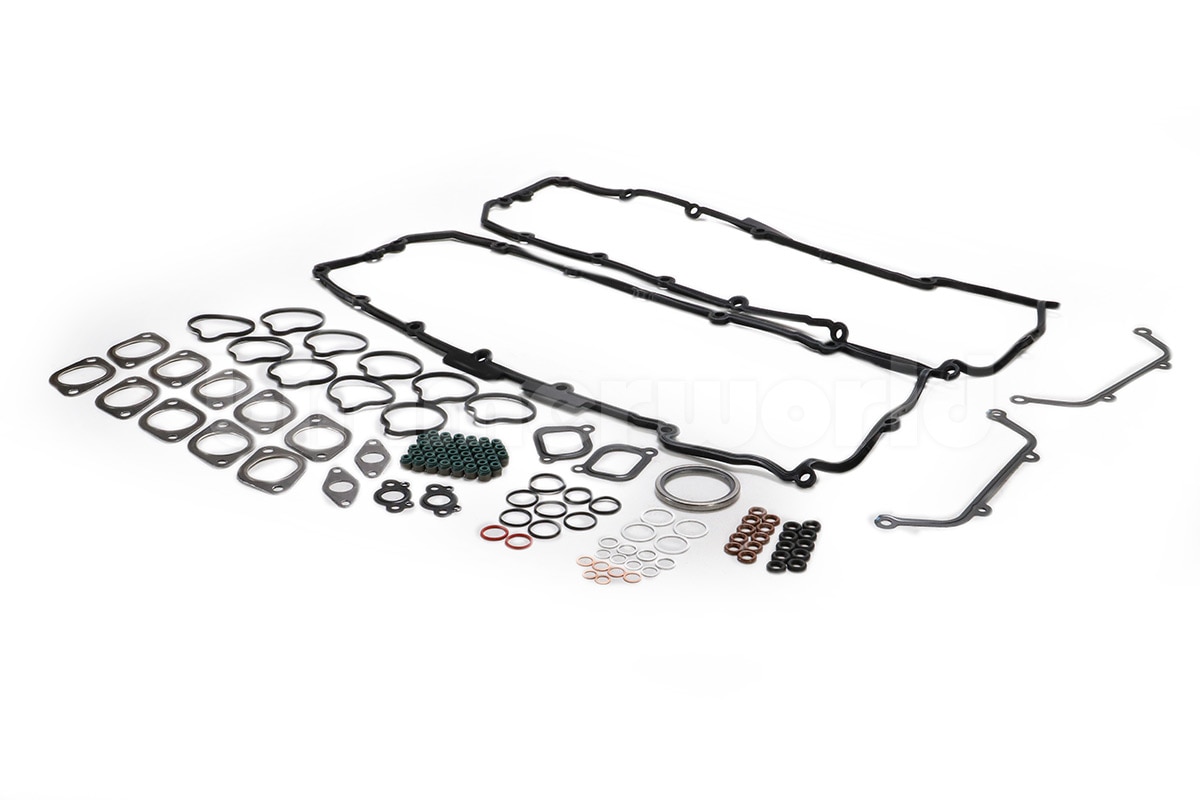

Top-End Gasket Set, BMW - E60 M5, E63 M6

This top-end gasket set for 2006-2010 E60 M5 and E63 M6 with the S85 V10 engine has all of the gaskets and seals typically replaced during a head gasket repair, timing cover gaskets, or intake manifold removal. Instead of buying just the head gaskets (BMW part #11127837460) you can get all of the other gaskets and seals needed to complete the job. Note: head gaskets are NOT included with this kit.

S85 V10 cylinder head gasket set includes:
2 x 07119963042, connector gasket ring, 8x11.5mm
4 x 07119963072, VANOS oil line gasket ring, 10x13.5mm
4 x 07119963073, screw plug gasket ring, 10x13.5mm (up to 1/2008)
4 x 07119963129, VANOS oil line gasket ring, 12x15mm
2 x 07119963355, screw plug gasket ring, 22x27mm
1 x 11127834110, Bank 1 valve cover gasket
1 x 11127834111, Bank 2 valve cover gasket
1 x 11127836488, oil filler neck o-ring, 26x2.5mm
2 x 11317507432, timing tensioner gasket ring, 22x27mm
2 x 11340032548, valve stem seal kit (40 total)
2 x 11367836242, front VANOS cover gasket (steel)
1 x 11531312287, thermostat gasket ring (may not be used)
2 x 11537834168, cooling pipe profile gasket
5 x 11537835497, cooling pipe o-ring, 22x2mm
2 x 11537835651, cooling pipe profile gasket
2 x 11617836178, non-return valve o-ring, 20x2.5mm
10 x 11627833278, exhaust manifold gasket
2 x 11727834047, secondary air valve gasket (steel)
2 x 13417834429, idle control valve o-ring, 24.5x2.5mm
2 x 13417836405, idle control valve preformed seal
10 x 13547834023, throttle body profile gasket
2 x 13627836245, camshaft sensor o-ring
10 x 13641437476, fuel injector o-ring, 7.52x3.51mm
10 x 13647675557, fuel injector o-ring, 8.3x3.05mm

Additional parts such as head gaskets, head bolts, other hardware, and sensors are sold separately.

Symptoms of head gasket failure include: white residue (tapioca) in the valve cover, under the oil filler cap, and in drained oil, low coolant (not caused by failure in cooling system), low oil, oil leak onto exhaust manifold, and loss of power from loss of compression. Cooling system trouble on the S85 must be addressed quickly as the aluminum head is easily damaged if overheating occurs.

This is a Genuine BMW S85 gasket set with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.
