Head Gasket, Standard, BMW - E46, E39, E60, E83 X3, E53 X5, Z3, Z4

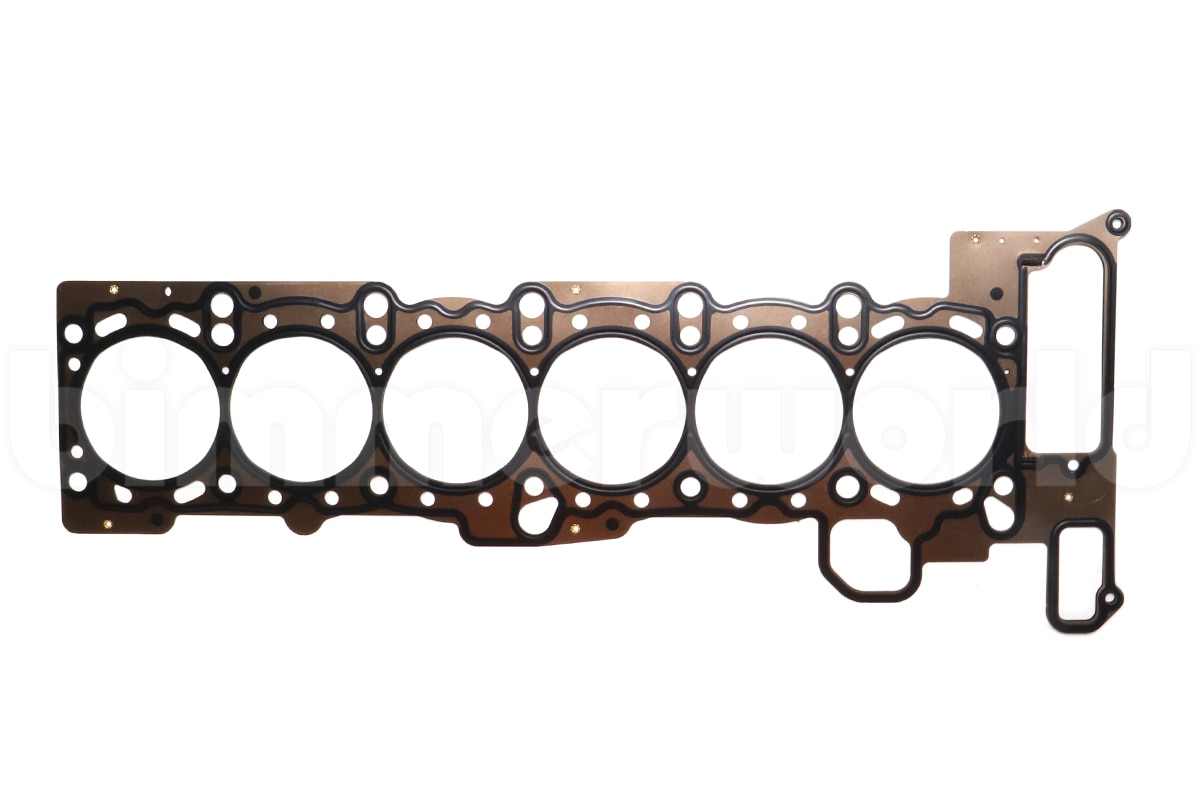

This is BMW part number 11127501304 (11 12 7 501 304) and is described by BMW as a head gasket for M52TU, M54, and M56 engines found in E46 323i/325i/328i/330i, E39 525i/528i/530i, E60 535i/530i, E83 X3, E53 X5, Z3, and E85 Z4 models. BMW has two gaskets available: original .7mm thickness for non-machined cylinder head and a thicker 1.00mm gasket if the head has been machined.

The rest of the gaskets for this job are sold separately (see below).

This part number replaces previous BMW part #11121435584.

This is a Genuine BMW head gasket with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

BMW Fitments:

3 Series
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 325xi
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
5 Series
E39 (97-03) > 525i
E39 (97-03) > 528i 99-00
E39 (97-03) > 530i
5 Series
E60 / E61 (04-10) > 525i M54 (2004-2005)
E60 / E61 (04-10) > 530i M54 (2004-2005)
X3 Series
E83 X3 (04-10) > X3 2.5i M54 (2004-2005)
E83 X3 (04-10) > X3 3.0i M54 (2004-2006)
X5 Series
E53 X5 (00-06) > X5 3.0i M54
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 2.3
E36/7 / E36/8 Z3 (96-02) > Z3 2.5
E36/7 / E36/8 Z3 (96-02) > Z3 2.8 99-00
E36/7 / E36/8 Z3 (96-02) > Z3 3.0
Z Series
E85 / E86 Z4 (03-08) > Z4 2.5i M54
E85 / E86 Z4 (03-08) > Z4 3.0i M54
