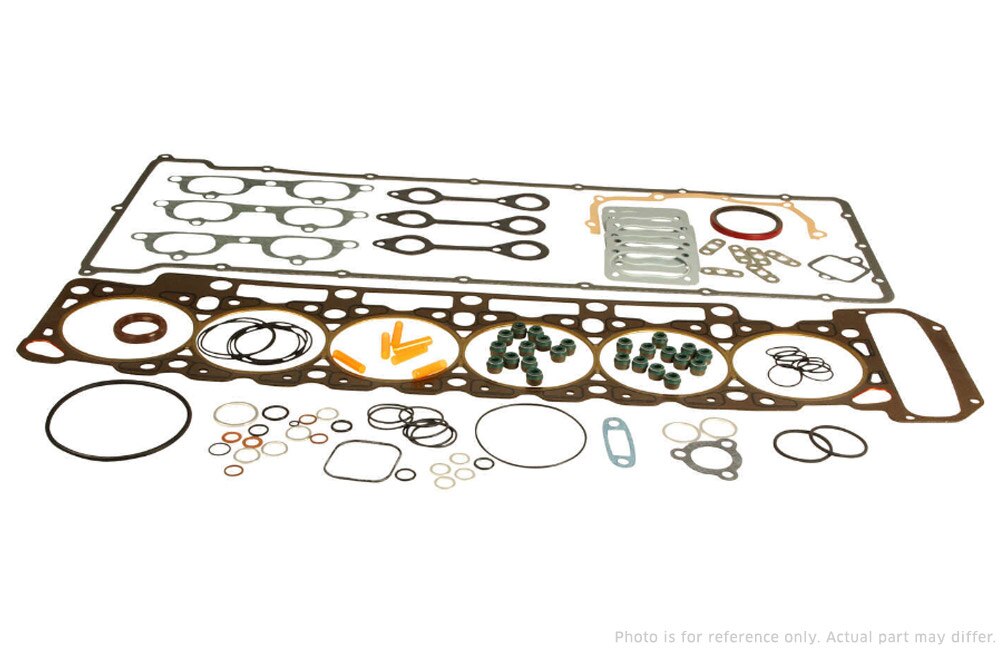

Genuine BMW Head Gasket / Top End Set - E34 M5 3.6 Liter

Extremely hard to find and extensive gasket/seal package for S38 work above the engine block. Genuine BMW part # 11129059244

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

This item has been discontinued by BMW. Need help finding a replacement? Call us at 877.639.9648

  • This item is no longer available.

Price:
$1,197.45

This gasket kit has been discontinued by BMW and OEM sources. Sorry - it is no longer available as of April, 2024. Individual pieces may still be available - use the kit contents list below and email us with your needs.



Head gasket failure is a not uncommon S38 issue and it's something to take seriously. This head gasket set for E34 M5 has all of the gaskets and seals associated with nearly any work done above the engine block, including head gasket replacement, intake manifold removal, camshaft work, and more. It's good planning to have a top-end and bottom-end gasket on hand in your garage because you never know when you need a gasket in a pinch. Gasket sets are like having your very own BMW parts department at your finger tips!

S38 head gasket kit includes:
2 x 07119963063, front connector gasket seal ring
4 x 07119963073, screw plug gasket seal ring
1 x 07119963130, temp sensor gasket seal ring
3 x 07119963200, screw plug and temp sensor seal ring
2 x 11211304173, camshaft tray o-ring
6 x 11121304174, camshaft tray o-ring
1 x 11121306729, rear cover gasket
1 x 11121312172, valve cover gasket
3 x 11121312173, spark plug hole gaskets
1 x 11121316705, head gasket
1 x 11141709060, distributor shaft seal
1 x 11151312176, rear coolant tube gasket
1 x 11151312757, crankcase vent connector gasket (no longer available)
1 x 07119963418, tensioner gasket seal ring
2 x 07119963355, tensioner gasket seal ring
2 x 07119906328, tensioner rail pivot o-ring
1 x 11311307408, tensioner rail bolt o-ring
2 x 11349059172, valve stem seals
7 x 11411304178, oil return tube/coolant tube o-ring
1 x 07119963075, oil filter bolt seal ring (535i only)
1 x 11421711076, oil filter bolt lower o-ring
1 x 11421741000, oil filter cap o-ring
2 x 11531304176, coolant tube o-ring (see 11517729587)
1 x 11531312287, thermostat gasket seal ring
1 x 11531312635, thermostat housing gasket
6 x 11611305124, throttle body o-ring
1 x 11611312937, oil separator o-ring (no longer available)
1 x 11631271346, throttle screw o-ring (no longer available)
3 x 13541261197, throttle screw o-ring (M1 only?)
2 x 13541307380, throttle body/ICV connector o-ring
1 x 13541312459, throttle body connection flange gasket (no longer available)
3 x 13541315939, throttle body gasket
6 x 11621312992, exhaust manifold gasket
6 x 11721312800, exhaust manifold air pipe gasket

Symptoms of head gasket failure include: white residue (tapioca) in the valve cover, under the oil filler cap, and in drained oil, low coolant (not caused by failure in cooling system), low oil, oil leak onto exhaust manifold, and loss of power from loss of compression. Cooling system trouble on the S38 must be addressed quickly as the aluminum head is easily damaged if overheating occurs.

This is a Genuine BMW S38 head gasket set with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

Because this kit fits multiple models it may include duplicate or redundant parts.



BMW Fitments:
5 Series
E34 (89-95) > M5 (91-95)
