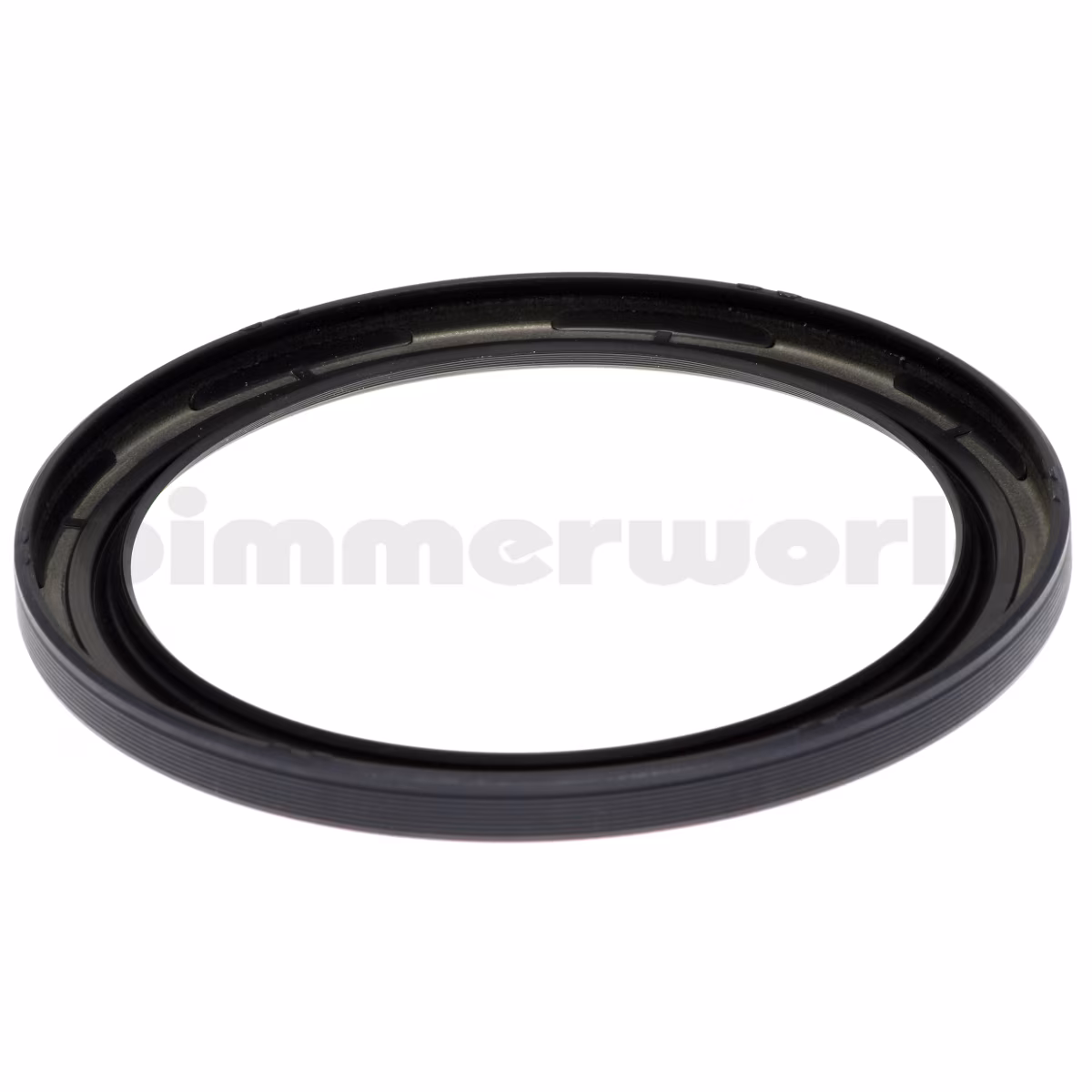

Rear Main Crankshaft Seal (8mm), Corteco - N20, N51, N52, N54, N55, S55

Seals the rear of the crankshaft from oil leaks. OEM replacement to BMW part #11117587168.

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$17.99

The rear crankshaft seal, also known as a rear main seal, is located around the back of the crankshaft and keeps engine oil from leaking out of the back of the engine. These seals typically last a long time but it's a good time to replace it any time the transmission is removed (clutch, flywheel, trans service, turbo replacement, etc). The telltale sign of rear main seal failure is spots of engine oil where the engine block meets the transmission or spots on your driveway.

This rear seal measures 90x110x8mm and fits all 4 and 6 cylinder models in E70, E82, E85, E90, E91, E92, E93, F10, F13, F25, F26, F30, F32, F33, F34, F36, F80, F82, F83, F87 chassis.

This 8mm wide seal replaces the older 12mm seal.

This is an OEM rear main seal manufactured by Corteco - an original supplier to BMW for this part, as well as many other rubber components and gaskets. As the OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.

BMW Fitments:
1 Series
E82 / E88 (08-13) > 128i
E82 / E88 (08-13) > 135i N54 (08-10)
E82 / E88 (08-13) > 135i N55 (11-13)
E82 / E88 (08-13) > 135is N55 (11-13)
E82 / E88 (08-13) > 1M (11-12)
2 Series
F22 / F23 (2014-2021) > 228i
F22 / F23 (2014-2021) > 228i xDrive
F22 / F23 (2014-2021) > M235i
F22 / F23 (2014-2021) > M235i xDrive
F22 / F23 (2014-2021) > M235i-Racing
F22 / F23 (2014-2021) > M240i-Racing
2 Series
F87 (2016-2021) > M2 Competition S55 (2019+)
F87 (2016-2021) > M2 N55 (2016-2018)
3 Series
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 325xi
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 328xi
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 330xi
E90 / E91 / E92 / E93 (06-13) > 335i N54 (07-10)
E90 / E91 / E92 / E93 (06-13) > 335i N55 (11-13)
E90 / E91 / E92 / E93 (06-13) > 335is N54
E90 / E91 / E92 / E93 (06-13) > 335xi N54 (07-10)
E90 / E91 / E92 / E93 (06-13) > 335xi N55 (11-13)
3 Series
F30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
3 Series
F80 (2015-2018) > M3 (2015-2018)
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
4 Series
F82 / F83 (2015-2020) > M4 (2015-2020)
F82 / F83 (2015-2020) > M4 GT4
F82 / F83 (2015-2020) > M4 GTS
5 Series
E60 / E61 (04-10) > 525i N52 (2006-2007)
E60 / E61 (04-10) > 525xi N52 (2006-2007)
E60 / E61 (04-10) > 528i
E60 / E61 (04-10) > 528xi
E60 / E61 (04-10) > 530i N52 (2006-2007)
E60 / E61 (04-10) > 530xi N52 (2006-2007)
E60 / E61 (04-10) > 535i
E60 / E61 (04-10) > 535xi
5 Series
F10 / F11 (11-16) > 528i N20 (2012-2016)
F10 / F11 (11-16) > 528i N52 (2011)
F10 / F11 (11-16) > 528i xDrive N20 (2012-2016)
X1 Series
E84 X1 (2013-2015) > X1 28i
E84 X1 (2013-2015) > X1 28i xDrive
X3 Series
E83 X3 (04-10) > X3 3.0i M54 (2004-2006)
E83 X3 (04-10) > X3 3.0si N52 (2007-2010)
X3 Series
F25 X3 (2011-2017) > X3 sDrive28i
F25 X3 (2011-2017) > X3 xDrive28i
F25 X3 (2011-2017) > X3 xDrive35i
X4 Series
F26 X4 (2015-2018) > X4 28i xDrive
F26 X4 (2015-2018) > X4 35i xDrive
X5 Series
E70 X5 (07-13) > X5 3.0si
X5 Series
F15 X5 (2014-2018) > X5 sDrive35i
F15 X5 (2014-2018) > X5 xDrive35i
