Top-End Gasket Set, Elring - E32 750iL, E31 850i/CSi

Head gasket failure is a not uncommon M70 issue and it's something to take seriously. This head gasket set for E32 750iL, E31 850i, and E31 850CSi has all of the gaskets and seals associated with nearly any work done above the engine block, including head gasket replacement, intake manifold removal, VANOS and camshaft work, and more. It's good planning to have a top-end and bottom-end gasket on hand in your garage because you never know when you need a gasket in a pinch. Gasket sets are like having your very own BMW parts department at your finger tips!

The head gasket is sold separately (see below). Head gaskets are available in more than one thickness to account for a shaved or milled cylinder head. Use a stock thickness if you are not shaving the head.

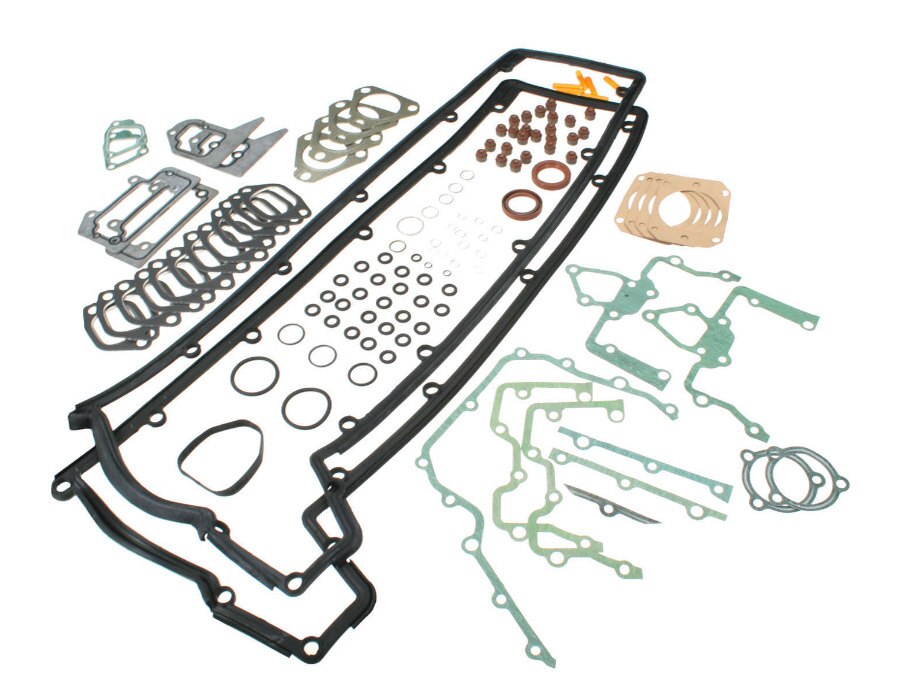

Instead of buying just the head gasket you can get all of the other gaskets and seals needed to complete the job. This M70 top end gasket set includes:
6 x 07119963037, gasket ring
8 x 07119963041, oil distribution pipe gasket ring
3 x 07119963130, sensor gasket ring
1 x 07119963200, sensor gasket ring
1 x 07119963355, timing tensioner gasket ring
1 x 11121725002, valve cover gasket, bank 1
1 x 11121725003, valve cover gasket, bank 2
2 x 11141709060, Distributor shaft seal
1 x 11141710173, gasket, bank 1
1 x 11141710174, gasket, bank 2
1 x 11141710175, gasket
1 x 11141725249, gasket, bank 1
1 x 11141725540, gasket, bank 1
1 x 11141725541, gasket, bank 2
1 x 11141725700, timing case gasket, 1 hole
1 x 11141725701, timing case gasket, 2 hole
1 x 11141725703, timing case gasket, 1 hole
1 x 11141725704, timing case gasket, 2 hole
2 x 11141725780, Distributor cover gasket
2 x 11141725787, rear cover profile gasket
1 x 11141729459, oil fill cap gasket ring
1 x 11311702953, timing tensioner gasket ring
2 x 11349059172, valve stem seals (24 total)
2 x 11531713852, water pipe gasket
1 x 11537501776, coolant pipe o-ring
2 x 11531710048, coolant pipe o-ring
1 x 11531710055, coolant pipe o-ring
4 x 11611708475, throttle body & intake manifold cover gasket
12 x 11621708966, exhaust manifold gasket
4 x 11761711717, exhaust manifold gasket
2 x 13531720251, fuel pressure regulator o-ring
2 x 13531720252, fuel pressure regulator o-ring
24 x 13641730767, fuel injector o-ring (2 per injector)

Additional parts such as the head gasket, head bolts, other hardware, and sensors are sold separately (see below).

Symptoms of head gasket failure include: white residue (tapioca) in the valve cover, under the oil filler cap, and in drained oil, low coolant (not caused by failure in cooling system), low oil, oil leak onto exhaust manifold, and loss of power from loss of compression. Cooling system trouble on the M70 must be addressed quickly as the aluminum head is easily damaged if overheating occurs.

This is an OEM head gasket set manufactured by Elring - one of the original suppliers to BMW for these gaskets, as well as many other gaskets and seals. As the OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. These parts have a two year warranty.

Because this kit fits multiple models it may include duplicate or redundant parts.

BMW Fitments:

7 Series
E32 (88-94) > 750iL
8 Series
E31 (91-97) > 850CSi
E31 (91-97) > 850Ci
