B58 Turbocharger Install Kit, BMW - G30 540i, G12 740i, X5/X6 40i

This kit includes all of the commonly-replaced gaskets and hardware related to swapping the turbo on your G30 540i, G12 740i, G15 840i, G05 X5, G06 X6, and G07 X7 "40i" models with the B58C engine. These are all Genuine BMW or OEM parts - no aftermarket - so you can be assured the parts are of the same quality and performance as when the car was new.

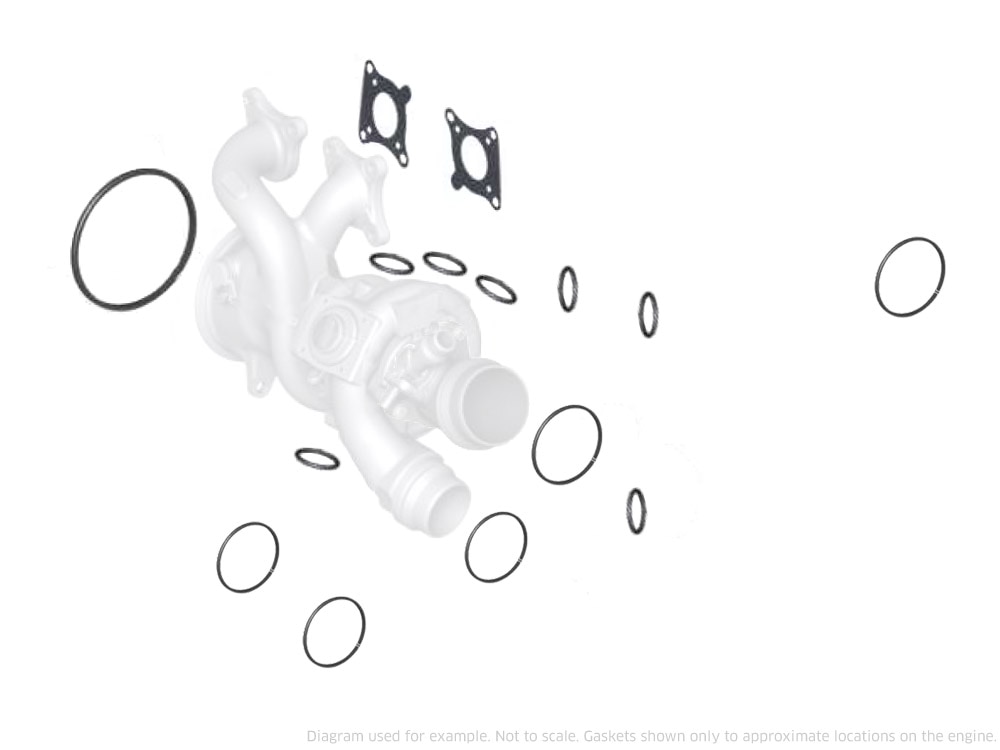

Kit Contents:
2 x 11658669732, exhaust manifold gasket
6 x 11628597827, exhaust manifold copper nut
1 x 18328612538, downpipe gasket
2 x 11427590576, oil supply pipe o-ring
2 x 11428604872, oil drain pipe o-ring
3 x 11277702625, coolant pipe o-ring
1 x 13718696103, preformed seal, intake charge pipe
1 x 13718696104, throttle body gasket seal
1 x 13718648429, preformed seal, turbo inlet
2 x 13719894670, intake duct profile gasket

When replacing the B58C turbo there are many parts that must be replaced and some that are simply a good idea to replace. This kit covers both and sits in between a minimalist kit for the ace DIYer and the ultra kit for the DIY or shop that wants a completely fresh install. Additional parts may also be recommended - see below for links.

These parts should also fit 2019-2020 A90 Supra with the B58 engine, although we have not confirmed fitment and design.

All of the parts in this kit are Genuine BMW or from the OEM, just as if you went to the local dealer or the factories. All parts include a two year warranty.

BMW Fitments:

5 Series
G30 (20-24) > 540i
G30 (20-24) > 540i xDrive
7 Series
G11 / G12 (17-19) > 740i
G11 / G12 (17-19) > 740i xDrive
8 Series
G14 / G15 (2019+) > 840i
G14 / G15 (2019+) > 840i xDrive
X5 Series
G05 (19-23) > X5 40i
X6 Series
G06 (19-23) > X6 40i
X7 Series
G07 (19-22) > X7 40i
