N54 Turbocharger Install Kit, Rein - E9X 335i

Oil hoses, Coolant lines, gaskets, and hardware to help make your N54 turbo install go smoothly

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

Your selection is out of Stock

  •

Price:
$636.99

This kit includes the N54 turbo oil and coolant lines plus installation hardware and gaskets for swapping turbos on your 2007-2010 E90/E92/E93 335i N54 model.

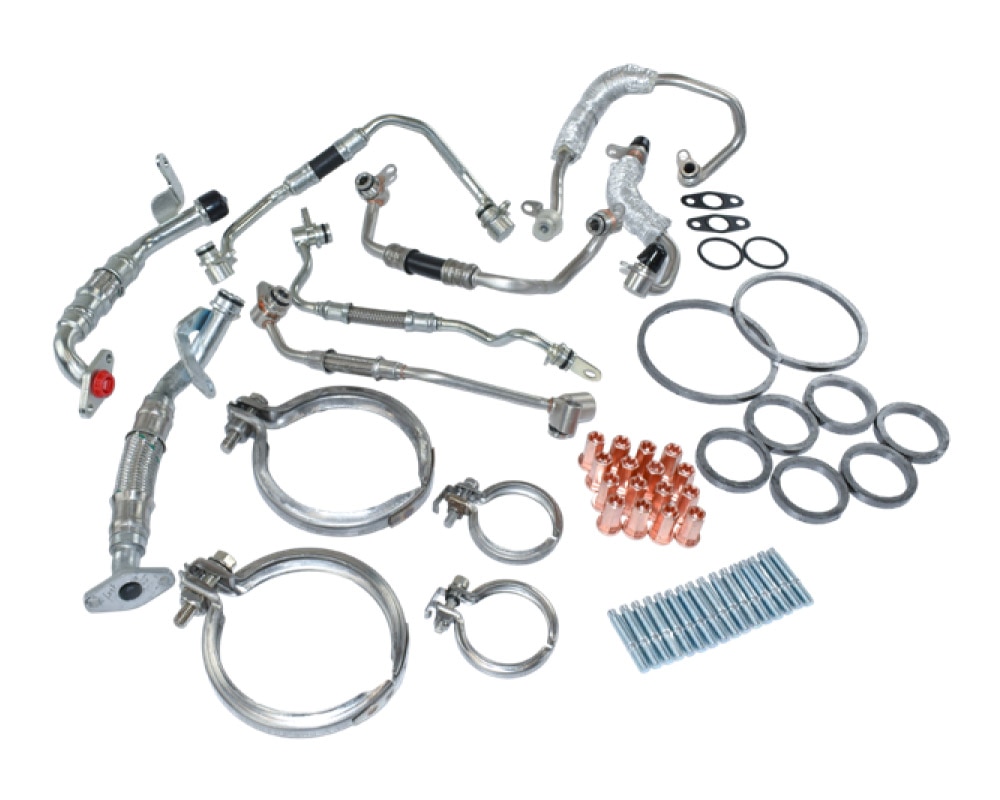

Kit Contents:
1 x 11427563713, front turbo oil return line with o-ring
2 x 11422246091, profile gasket for oil return line
1 x 11537558900, cooling return pipe, bank 1
2 x 13717568030, hotside chargepipe to turbo flange o-ring
1 x 11537558902, cooling return pipe, bank 2
6 x 11627558906, turbo manifold gasket
1 x 11427562797, front turbo oil supply line with o-rings
2 x 18307553601, turbo to downpipe gasket ring
1 x 11427562798, rear turbo oil supply line with o-rings
16 x 11127593376, exhaust manifold stud
1 x 11427562800, rear turbo oil return line with o-rings
16 x 18407502196, copper flange nut
1 x 11537558899, front turbo coolant supply line
2 x 11657620508, turbo to downpipe flange t-bolt clamp
1 x 11537558901, rear turbo coolant supply line
2 x 11657558922, hotside chargepipe to intercooler t-bolt clamp

This kit from Rein/CRP includes the full set of turbo oil lines and coolant lines as well as the basic installation hardware required for replacing N54 turbos. This kit does not cover every gasket, nut, or bolt that can be replaced during turbo installs. But it includes a lot of the core pieces. Replacing turbos can be done several ways and your method of removal/install will dictate your complete list of replacement parts. If you need additional N54 top end gaskets see our Related Items below.

Note for 335xi models: more parts must be removed to access the turbos on Xi AWD models. This may include the axle shaft, subframe, right side engine mount, and steering rack. How much you remove is dependent on your abilities and tool chest. All of the parts in this kit are common to the Xi models, however, there may be other parts needed depending on how much more is removed for access. Contact us via phone or email for a group of parts we have available to assist you.

This kit of N54 turbo parts is manufactured by Rein Automotive (CRP) - a front-line supplier of original equipment, private label, and in-house engineered replacement parts. Rein replacement products meet or exceed all of BMW's original design, fitment, and performance requirements and they carry out testing with ISO and German TUV for quality control. Rein parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. These parts have a two year warranty.

Don't forget to prime your turbo(s) with engine oil before running the engine!

For full BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.

BMW Fitments:
3 Series
E90 / E91 / E92 / E93 (06-13) > 335i N54 (07-10)
E90 / E91 / E92 / E93 (06-13) > 335is N54
E90 / E91 / E92 / E93 (06-13) > 335xi N54 (07-10)
