When replacing the turbo on the N55 535xi, 640xi, and 740xi there are several ways to access the turbo and remove it (with the manifold). If you're removing the right side motor mount and axle shaft this Kit should on your workbench.
Most of this list is hardware pieces that you should be able to re-use but we like to have fresh hardware for any work we do on our own cars. This list should be everything needed if you're removing all components listed above. Contact us if you only need a partial Kit.

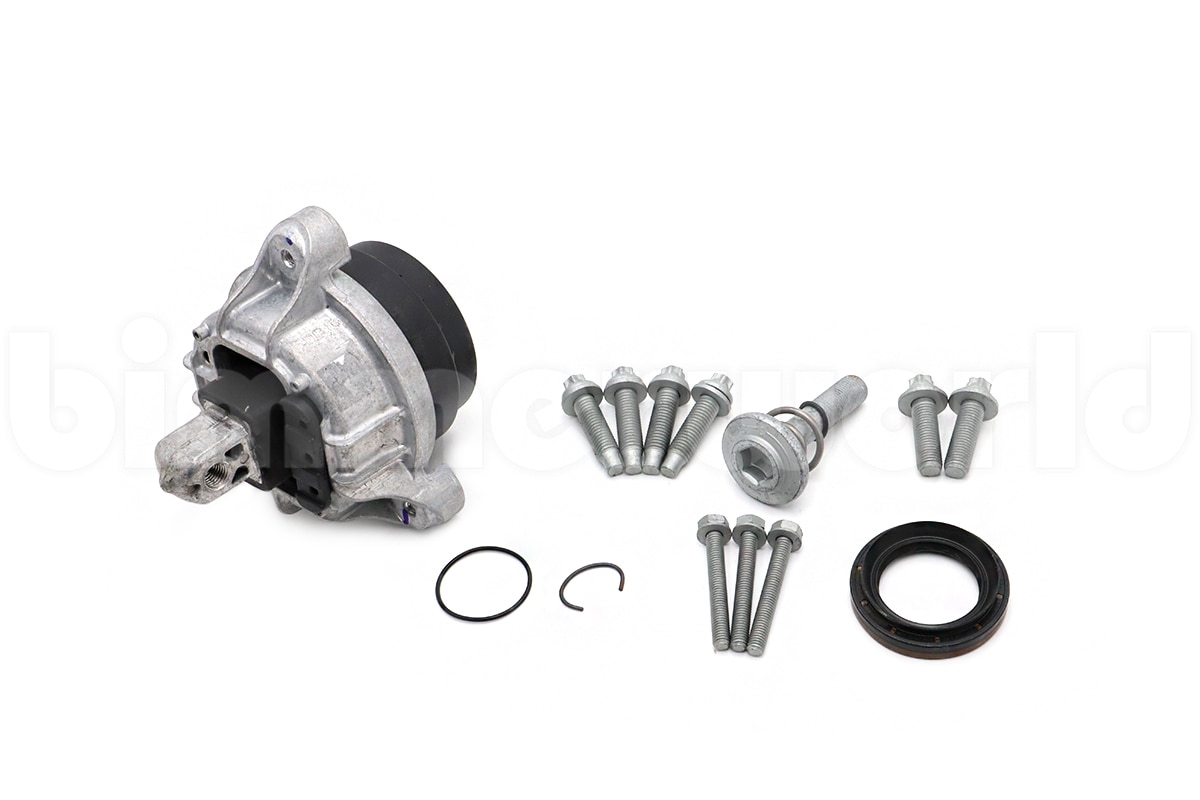

This kit includes - 1 x 22116859846, engine mount 3 x 07119905848, engine mount bolt 2 x 07119908507, engine mount screw 4 x 22116778231, engine mount bolt 1 x 31206795249, outer axle shaft bolt with spring 1 x 33131214961, inner axle shaft snap lock ring 1 x 33107505601, inner axle shaft seal* 1 x 31511213527, inner axle shaft o-ring*
* The last two items are also included with BMW part #31507578652. This is the support bracket and inner bearing for the axle shaft. It may be better to buy this bracket as it includes bearings that are not available separately. See link below.
This Kit is meant to complement our other N55 turbo install kits - 100.11.610.3501 (Basic) and 100.11.610.3502 (Preferred). The xDrive parts will be needed along with the parts from either of those two kits. As mentioned above, there are a number of ways to remove the N55 turbo and this is just one. Additional parts may also be required that are not included here. Make sure you fully understand what will be removed and replaced before starting work. Contact us if you have any questions or want more advice.
All of the parts in this Kit are Genuine BMW or from an OEM supplier to BMW.
BMW Fitments:
5 Series F10 (11-16) > 535xi 6 Series F06 / F12 / F13 (12-17) > 640xi 7 Series F01 (12-15) > 740xi F02 (12-15) > 740xLi
|
$141.99
xDrive Right Side Motor Mount Hardware Kit - F10, F06, F13, F02
Additional parts that may be replaced during turbo overhaul on xDrive N55 models.
|
|
