N20 Turbocharger Install Kit, Rein - F22, F3X, F10, E84, F25, F26, E89

Oil hoses, Coolant lines, gaskets, and hardware to help make your N20 turbo install go smoothly

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -



This kit includes the N20 turbo oil and coolant lines plus installation hardware and gaskets for swapping the turbo on your 228i/328i/428i/528i, X1/X3/X4 28i, Z4 28i.

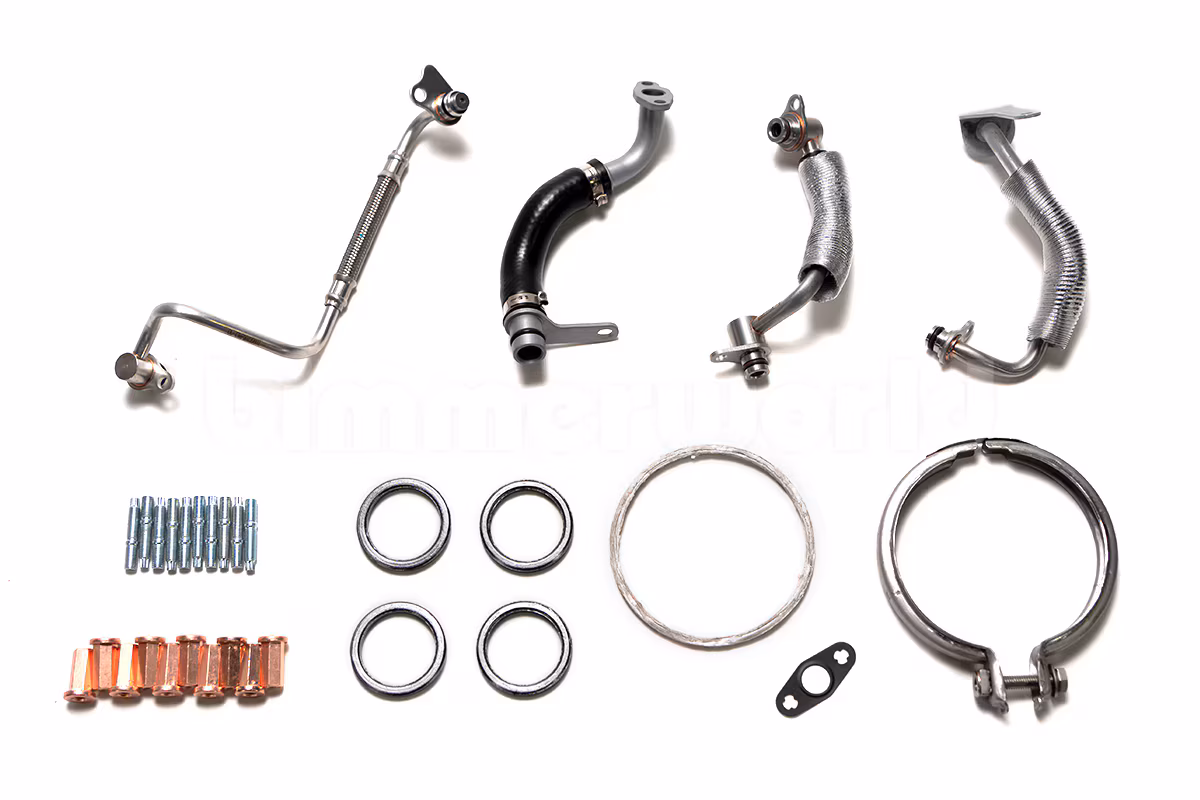

Kit Contents:
1 x 11427577017, oil return line gasket
4 x 11657625293, manifold to cylinder head gaskets
1 x 18307581970, turbo to downpipe gasket ring
1 x 11538663516, turbo coolant supply line
10 x 18407502196, manifold mounting copper nuts
1 x 11538663517, turbo coolant return line
10 x 11127593376, manifold mounting studs
1 x 11428678840, turbo oil supply pipe
1 x 18307606136, turbo to downpipe t-bolt clamp
1 x 11428626653, turbo oil return pipe

This kit from Rein/CRP includes the full set of turbo oil lines and coolant lines as well as the basic installation hardware required for replacing a N20 turbo. This kit does not cover every gasket, nut, or bolt that can be replaced during turbo installs. But it includes a lot of the core pieces. Replacing the turbo can be done several ways and your method of removal/install will dictate your complete list of replacement parts. If you need any other N20 cylinder head or top end gaskets, see our Related Items below.

This kit of N20 turbo parts is manufactured by Rein Automotive (CRP) - a front-line supplier of original equipment, private label, and in-house engineered replacement parts. Rein replacement products meet or exceed all of BMW's original design, fitment, and performance requirements and they carry out testing with ISO and German TUV for quality control. Rein parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. These parts have a two year warranty.

Don't forget to prime your turbo with engine oil before running the engine!

For full BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.

BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i
F22 / F23 (2014-2021) > 228i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
5 Series
F10 / F11 (11-16) > 528i N20 (2012-2016)
F10 / F11 (11-16) > 528i xDrive N20 (2012-2016)
X1 Series
E84 X1 (2013-2015) > X1 28i
E84 X1 (2013-2015) > X1 28i xDrive
X3 Series
F25 X3 (2011-2017) > X3 sDrive28i
F25 X3 (2011-2017) > X3 xDrive28i
X4 Series
F26 X4 (2015-2018) > X4 28i xDrive
Z Series
E89 Z4 (2009-2016) > Z4 sDrive28i
