N55 Turbo Overhaul Package, OEM - F22 M235i, F30 335i, F32 435i, F87 M2 N55

A complete N55 turbo hardware kit with all OEM and Genuine install parts

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$219.99

Do your N55 turbo overhaul job right!

This very comprehensive kit includes all of the commonly replaced gaskets and hardware for replacing the N55 turbo on the 2014+ F22 M235i, F30 335i, F32 435i, and 2016-2018 F87 M2.

Our installation kit consists of only Genuine BMW and OEM parts - nothing that we wouldn't use on our own BimmerWorld employee or project BMWs. As OEM these meet all of BMW's original design, fitment, and performance requirements and are TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. All parts have a two year warranty.

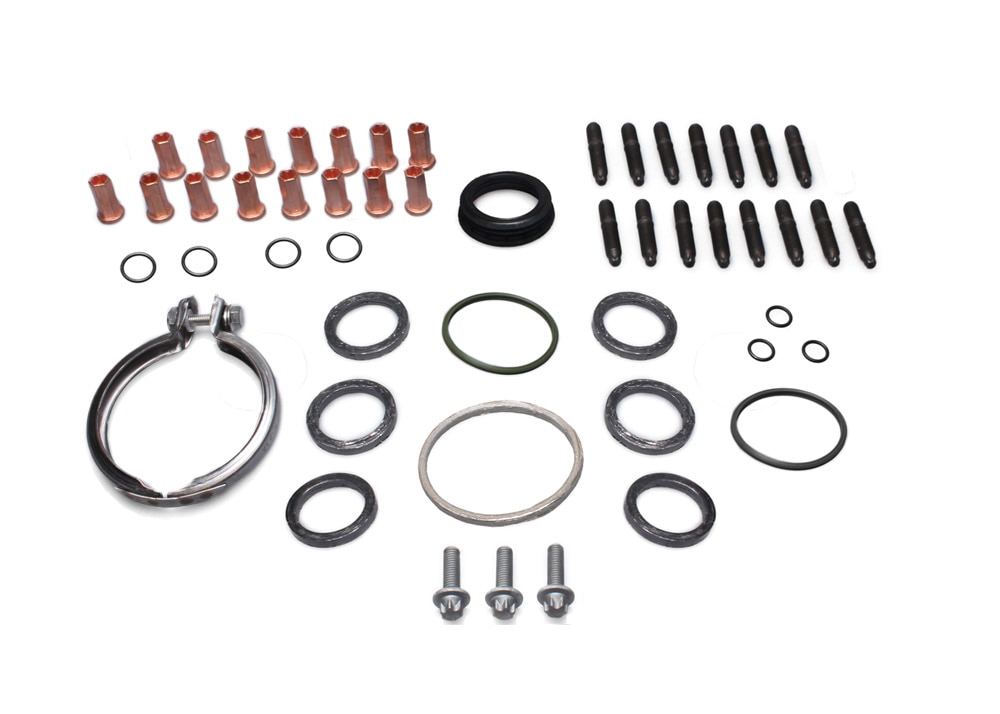

N55 Turbo Installation Kit Includes:
6 x 11657593303, Exhaust Manifold Gasket Ring
15 x 18407502196, Exhaust Manifold Copper Flange Nut
15 x 11127593376, Exhaust Manifold Stud
2 x 11427590576, Oil Supply Line O-Ring
2 x 11427590577, Oil Return Line O-Ring
3 x 11537590575, Coolant Line O-Ring
1 x 18307606136, Turbo to Downpipe T-Bolt Clamp
1 x 18307581970, Turbo to Downpipe Gasket
1 x 13717599291, Turbo Inlet Gasket Ring
1 x 11618506782, Preformed Seal Gasket, Turbo to Hotside Chargepipe
1 x 13718596850, Preformed Seal Gasket, Hotside Chargepipe to Intercooler
3 x 11517602123, Water Pump Bolts
1 x 11537584829, Water Pipe-to-Engine Block O-Ring

When replacing the N55 turbo there are many parts that must be replaced and some that are simply a good idea to replace. This kit covers both and sits in between a minimalist kit for the ace DIYer and the ultra kit for the DIY or shop that wants a completely fresh install.

It should be noted that there are multiple methods for replacing the turbo and manifold on N55 models. BMW will remove the right side steering mount arm. Others say to remove the steering rack and sway bar. We have also seen the entire subframe, engine, and transmission dropped from underneath. With any method additional parts are likely required. Plan ahead to have all of your parts on hand before beginning the work. See below for additional product links or contact us for advice.

Note for 335xi models: more parts must be removed to access the turbo on Xi AWD models. This may include the axle shaft, subframe, right side engine mount, and steering rack. How much you remove is dependent on your abilities and tool chest. All of the parts in this kit are common to the Xi models, however, there may be other parts needed depending on how much more is removed for access. Contact us via phone or email for a group of parts we have available to assist you.
BMW Fitments:

2 Series
F22 / F23 (14-17) > M235i
F22 / F23 (14-17) > M235i xDrive
F22 (14-18) > M235i Racing
F22 (2019+) > M240i Racing
2 Series
F87 (16-18) > M2
3 Series
F30 / F34 (14-15) > 335i
F30 / F34 (14-15) > 335i xDrive
4 Series
F32 / F33 / F36 (14-15) > 435i
F32 / F33 / F36 (14-15) > 435i xDrive
