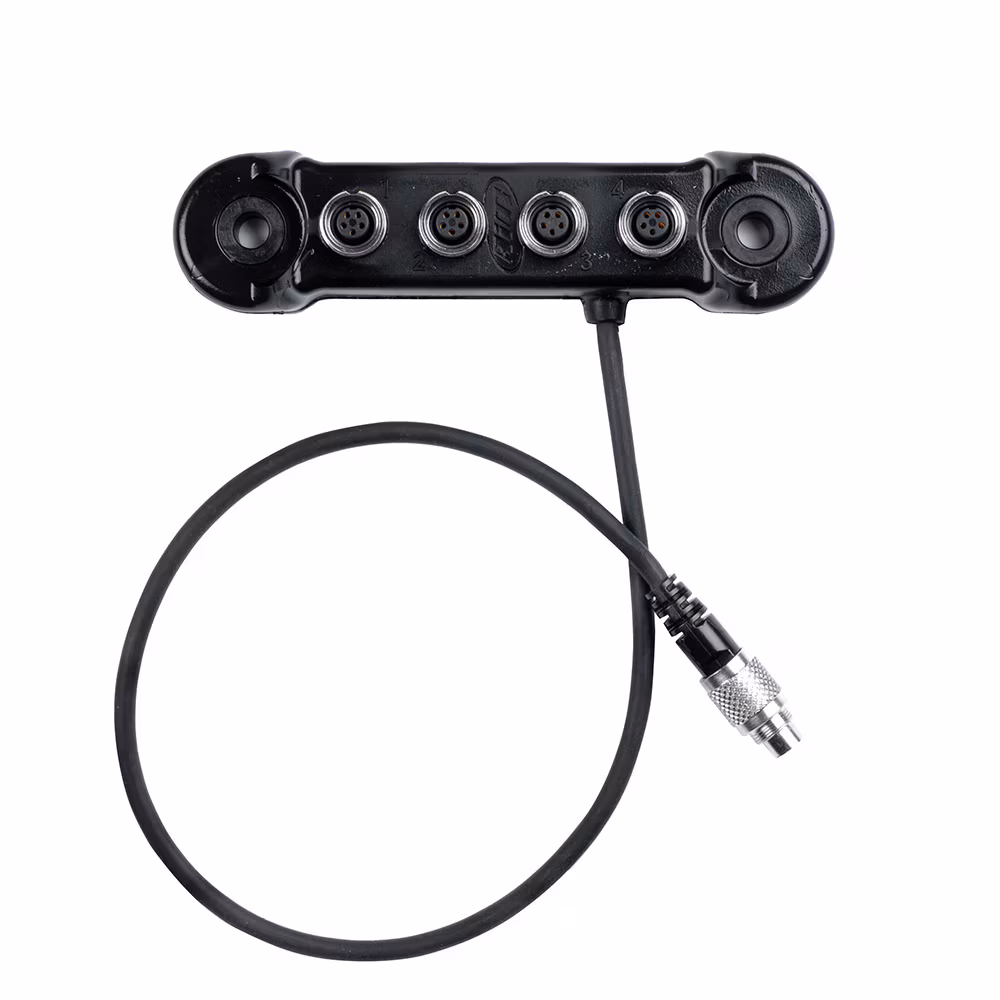

AiM 4-Way Data Hub

Consolidate Sensor, Lambda, GPS, or Thermo data into one hub

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$76.99

The Data Hub has 4 ports to receive data from peripheral modules: Channel Expansion Hubs, Lambda Controllers, SmartyCam, GPS, or Thermocouple Hubs. Most AiM dash displays/loggers have only two Data CAN connectors in the harness that will quickly become occupied. The Data Hub can use one while providing you with four more data ports for your peripheral connections. A typical BMW OBD-II AiM system will have one Data Hub to connect with a ECU Bridge, GPS module, Memory Card module, and possibly more. An OBD-I system will add Channel Hub(s) for additional data. The AiM Data Hub pays for itself by freeing up data ports and keeping your data sources organized.

The Expansion Hub will connect to your Data Hub or dash/logger with a 5-pin Binder 712 screw-on connector (included). All of your peripheral hardware will connect with the Data Hub with their own 5-pin Binder 712 connectors.
