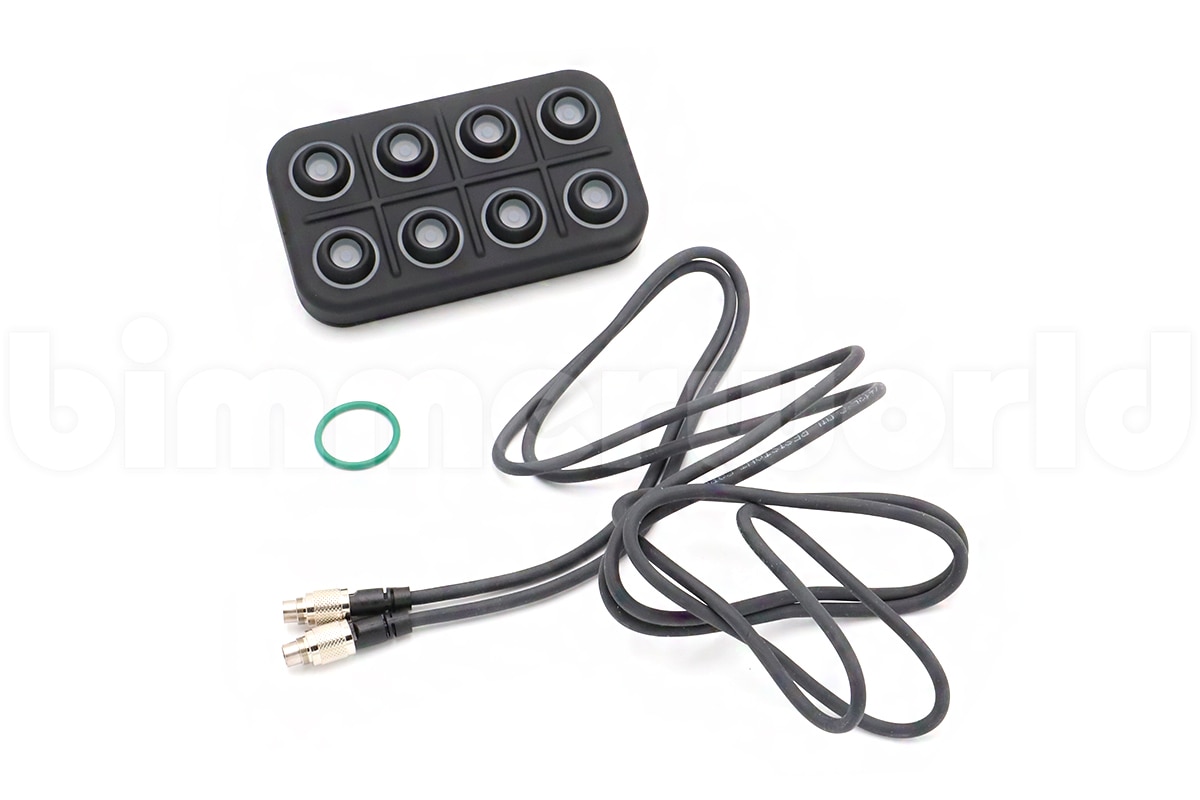

This is a CAN-programmable 8-button panel compatible with AiM master devices such as dashes, dash loggers and PDM systems. This keypad comes pre-configured for use with AiM protocols and is ready to be programmed through AiM's RaceStudio software. The buttons are a large 15mm size and the overall panel size is 127.4 x 71.4 x 24 mm (5.01x2.81x0.94").
IMPORTANT: BUTTON LABELS ARE NOT INCLUDED AND MUST BE PURCHASED SEPARATELY. The button panel comes ready to be programmed but the button labels ("inserts") are not included. This panel system does not use typical stick-on labels and the inserts are a required add-on. There is a large selection of automotive-related inserts available including blank. See the Related Items below.
Each button function and backlight is programmed using AiM software and can be set up as momentary, toggle, or multi-position. Once programmed install the button insert for each button. Rear connector is a motorsport-grade Deutsch 5-pin connector wired for CAN+, ground, +Vb, CAN-, and Vbext.
Specifications:
8 programmable keys (momentary, toggle, multistatus)
Vertical or horizontal mount
LED backlit rings and icons
RGB key color with dimming option
2 blinking mode
CAN-Bus system compatible
Supply Voltage: 12-24Vdc, Nominal 8-32Vdc
Connector: CAN AiM Binder 5 pins
Operating Temperature: -40C to +70C
Thermal Shock: -40C to +85C
Salt Spray Standard: ASTMB117
Chemical Resistance: dirt, engine cleaner, Isopropyl alcohol, multi-purpose cleaner, Muriatic acid
Waterproof Rating: IP67
Weight: 150g (5.29 oz)
