The VBOX Video HD2 system features 1080p 30fps video and real-time synchronized video/data with graphical overlay. The included OLED Predictive Display uses GPS data to display and record live speed, max speed, and predictive lap timing information.

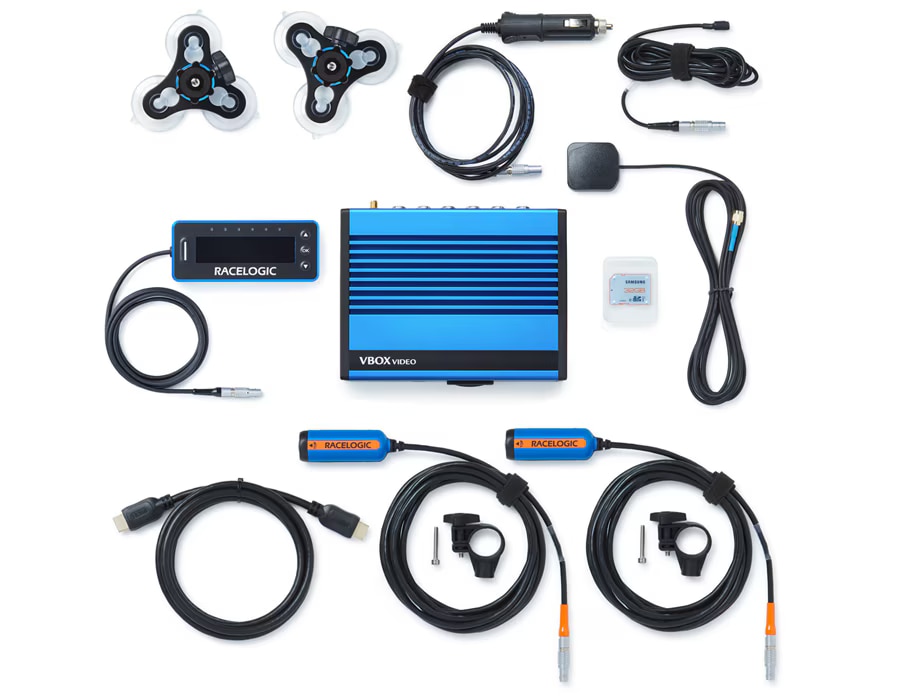

Package Contents:
- HD2 Data Logger
- 2x 1080p Cameras
- OLED Predictive Lap Timing Display
- HDMI Output
- Microphone

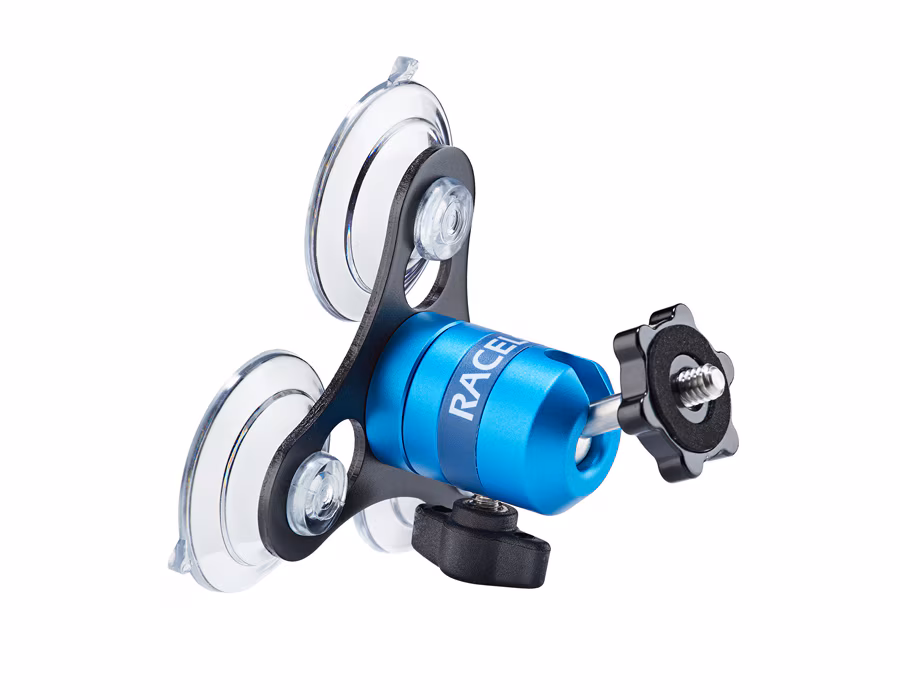

- 2 Suction Mounts
- 2 Camera Clamps
- In Car Power Supply
- Antenna
- 32 GB SD Card
2 HD Camera Inputs: Two waterproof cameras capture high-definition video at 30 frames per second, and their output is seamlessly synchronized with the 25 Hz GNSS data.
Real-time Graphics: Cameras are fully synchronized and embed a real-time graphical overlay on your video, allowing you to instantly analyze your performance and pinpoint areas for improvement. The overlays can display speed, track position, lap times, and other crucial metrics, which are invaluable for drivers seeking to improve performance or teams needing detailed post-race analytics.
Predictive Lap Timing: OLED display gives accurate, real-time lap comparison between your current and your fastest lap time. To achieve our unrivalled accuracy, we compare two different laps using GPS position rather than distance. This means our lap time stays accurate, even if the driver takes a different line each lap. Position based delta-T is also far superior on long tracks.
High Accuracy Data: The 25 Hz GNSS receiver provides parameters such as circuit position, lap timing and speed accurate to ±0.06 MPH.
Compatible with AiM: Record CAN data directly from an AiM dashboard or logger.
Compatible with MoTeC: Align HD2 video with fully synchronized data that can be reviewed in Circuit Tools or MoTeC software.
Free Analysis Software: Circuit Tools analysis software is aimed at drivers and is quick and simple to use. The software is designed to automate many tasks and present a driver with the information required to improve lap times.
CAN Bus Input: VBOX Video HD2 is compatible with any dash or ECU that outputs CAN so you can log up to 80 channels of vehicle CAN data, such as throttle angle, RPM, or brake pressure.
Power Backup: Internal power backup ensures that no data loss or corruption occurs should power be lost during recording.
Live Preview for Camera Alignment: Use the VBOX Preview App with live output allows you to check the alignment of your cameras on your iPhone or Android Phone. You can set an exposure window on the camera preview, ensuring absolutely perfect video capture every time, avoiding the 'letterbox' effect that can occur on very bright days.
Live Streaming (Option): HDMI output allows you to stream video to an HDMI compatible monitor, recorder or streaming device like LiveU Solo.
