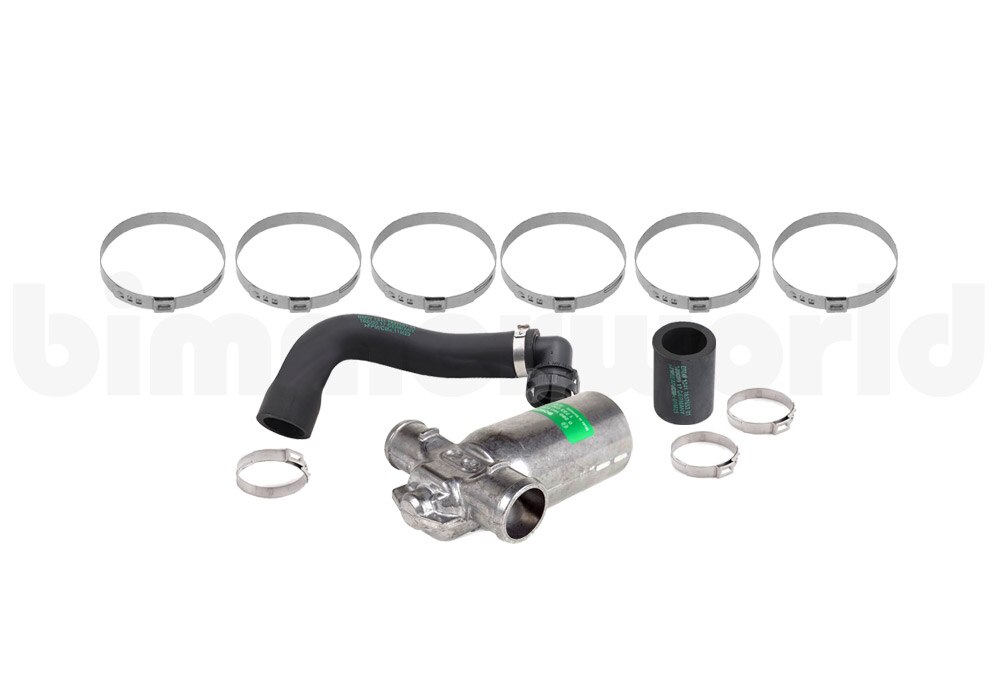

This package includes the ICV and attached hoses and other hardware for replacing the idle control valve on S54 engines in E46 M3, MZ3, and E85/E86 Z4M.
Included -
13411733090, Genuine BMW idle control valve
13417837597, Genuine BMW lower ICV hose elbow
13417831794, Oetiker crimp-clamp, ICV to Elbow hose
13417837653, Genuine BMW upper ICV hose (short)
13417831793, Oetiker crimp-clamp (x2), ICV to short hose and pipe
11617831745, Genuine BMW Oetiker crimp-clamp (x6), intake plenum to throttle bodies
This is a basic kit focusing on the two hoses attached to the ICV, the clamps for the hoses, and the clamps for removing the intake airbox plenum, and a new idle control valve. New clamps are not required - IF you can properly remove the original crimp-style clamps with the correct crimp pliers. But we didn't want you to be without proper clamps while doing the job. Contact us if you'd like a kit without the clamps.
Following the BMW procedure for replacing the ICV requires removing the intake plenum. There are several other hoses and hardware attached to the plenum that could be replaced. These are related to the crankcase vent, brake vacuum, and other systems. However, replacement parts are quite pricey and makes a “basic kit” much more expensive. USE CAUTION REMOVING OTHER HOSES on the plenum!! BMW used plastic for nearly everything and cheaper aftermarket replacements do not exist. See our Related Items section below for these additional items.
This is also a prime time to replace your throttle position sensors (part #13637840383), see Related Items below.
BMW Fitments:
3 Series
E46 (01-06) > M3
Z Series
E36/7 E36/8 (01-02) > M Coupe
E36/7 E36/8 (01-02) > M Roadster
Z Series
E85 E86 (06-08) > M Coupe
E85 E86 (06-08) > M Roadster
