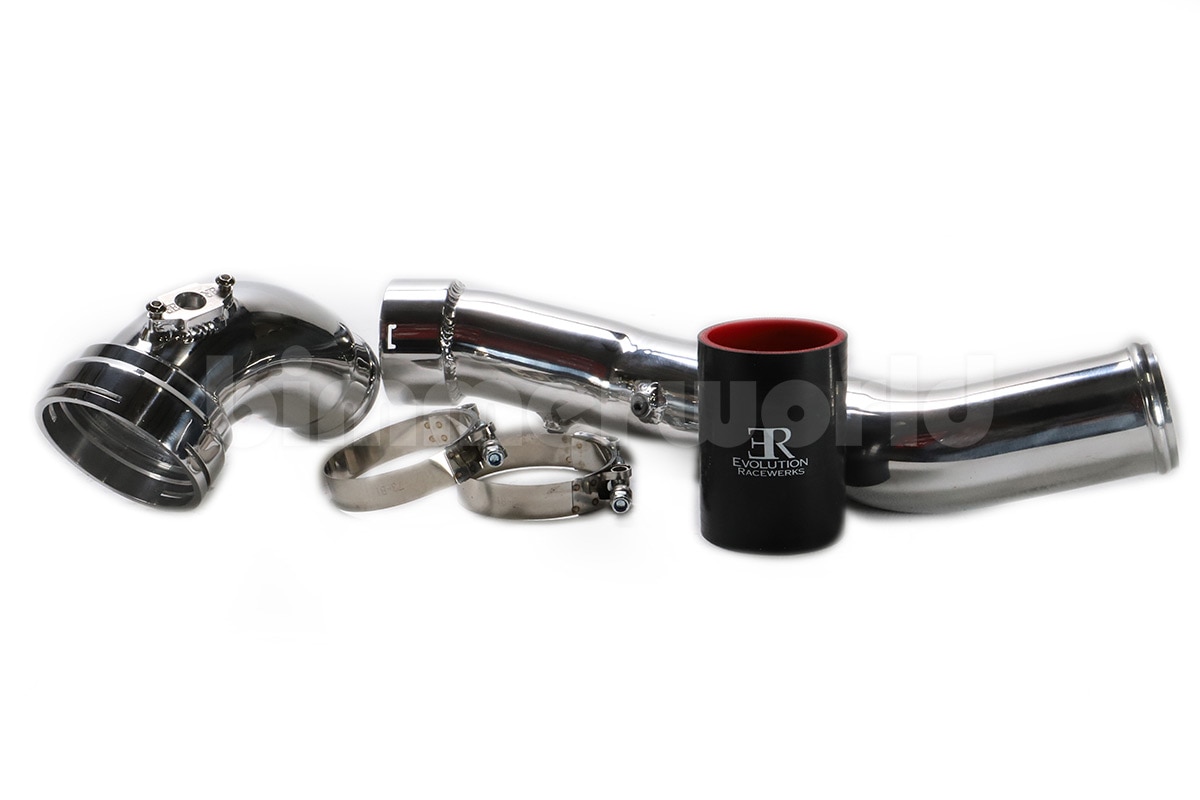

Evolution Racewerks Intake Chargepipe - M235xi/335xi/435xi (N55)
High performance chargepipe won't crack under pressure
Turn up the boost with a tune and find your factory charge pipe break apart? Fear not! The solution is here! Replace your F22 M235xi, F30 335xi, and F32 435xi intake chargepipe with a higher flowing, stronger aluminum charge pipe. Made of 6061 high grade aluminum, this will never happen again, backed by a Limited Lifetime Warranty!
Often ignored, charged intake airflow characteristics greatly affect throttle response, turbo lag and ultimately maximum power potential. Smooth bends and minimal obstructions are ideal. 6061 aluminum (lightweight) mandrel bent piping was used to ensure smooth transitions. The upper pipe features 3" piping to match up to the factory throttle body (factory pipe is 2.5"), ensuring maximum flow without obstruction. The MAP sensor flange is also designed to mimic the factory setup. The CNC machined MAP sensor flange utilizes the factory o-ring seal for strength and reliability.
The ER N55 Charge Pipe is available in 3 finish options. Mirror Polish, Type III Hard Black Anodizing, or Brushed Aluminum. An added benefit of the Type III Hard Black Anodizing is that it hardens the aluminum piping and makes it more durable against accidental damage (like dropping the pipe).
Two 1/8" NPT threaded bungs (for methanol injectors) are included. This allows quick and easy installation of methanol injectors. The 1/8" NPT bungs will come with plugs so that you can run with or without the methanol injector. This is perfect for those who do not have the Methanol Injection yet but plan to do so in the future. Or it's the perfect place to source a boost gauge.
Select from manual or automatic transmission models. The automatic version includes the vacuum port on the pipe. Manual transmission pipes do not use this line so the port is deleted for better flow and one less potential failure point.
A new c-clip connector is recommended and sold separately.
Notice of Emissions Non-Compliance. The intake component is part of a vehicle's emissions equipment. Removing, disabling, or altering emissions equipment on a pollution-controlled road vehicle is illegal. Installing devices or software that trick, disable, or modify emissions controls and monitors on a pollution-controlled road vehicle is also illegal. Unless noted above, this product is not legal for sale or use in California on any pollution controlled motor vehicle.
F22 / F23 (2014+) > M235xi
F30 / F31 / F34 (2012+) > 335xi
F32 / F33 / F36 (2014+) > 435xi
