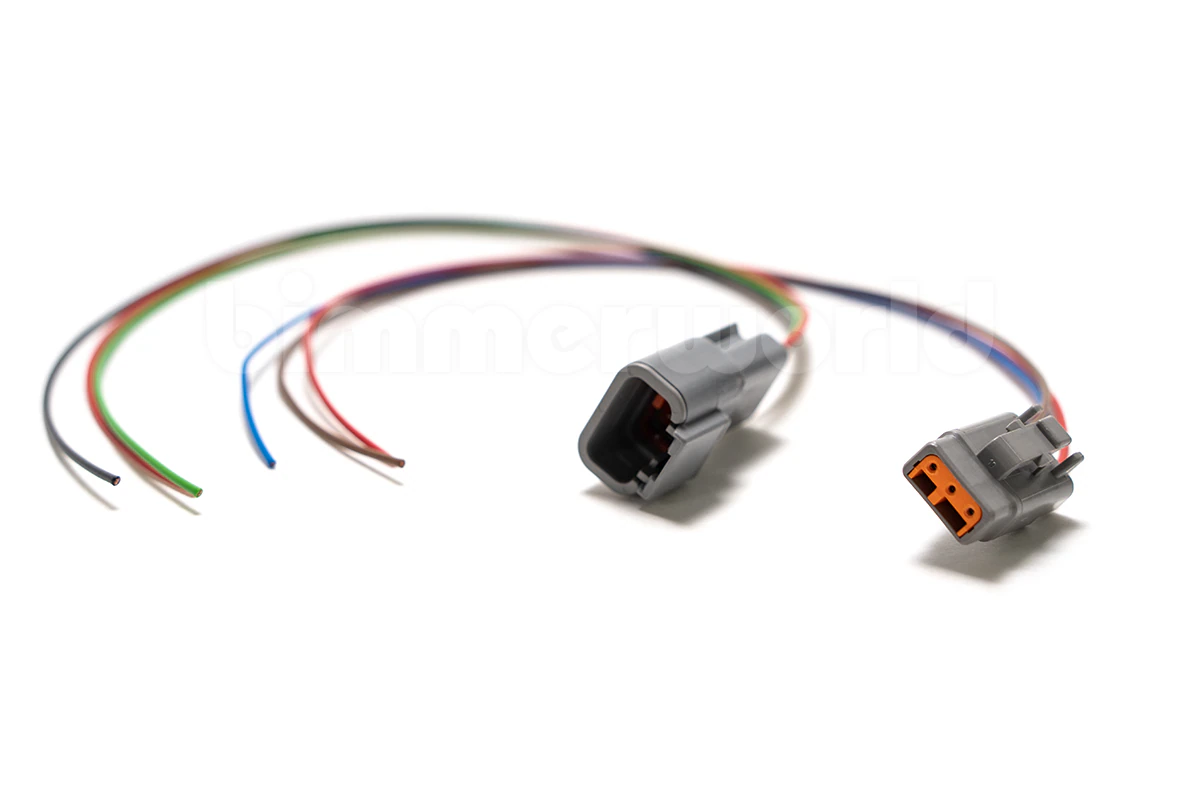

Lifeline Rain Light Pigtail Set - 3-Pin Deutsch DTM Connectors

Preassembled 3-pin Deutsche pigtails for installation of a Lifeline Rain Light Adapter.

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$13.75

Lifeline Rain Light Pigtails for easy installation of rain lamp controls using a 3-pin Deutsch DTM connector and receptacle. If you’re looking to install a controller for your Lifeline rain light, but do not have the tools or ability to properly crimp the Deutsch pins, these fully assembled pig tails can easily be spliced in.

Chassis Connector – 3-pin Deutsch DTM Plug:
1 – 0.50mm² Red – +12V from On/Off Switch
2 – 0.50mm² Blue – +12V from Brake Switch
3 – 0.50mm² Brown – Chassis Ground

Rain Light Connector – 3-pin Deutsch DTM Receptacle:
1 – 0.50mm² Red – Lifeline Red Wire
2 – 0.50mm² Green – Lifeline Green Wire
3 – 0.50mm² Black – Lifeline Black Wire

Note: Wire Length: 305mm / 12″
