ChillOut cooling systems are the next wave in keeping your drivers cool during sessions. Using a proprietary cooling solution instead of ice makes the ChillOut system lighter, more reliable, and more consistent for longer stints. The system requires no ice and uses its own propylene glycol formula with distilled water to give you continuous cooling through the ChillOut shirt. You get cooling for as long as the system is running! There are so many advancements with ChillOut because the system was designed by and for racers.

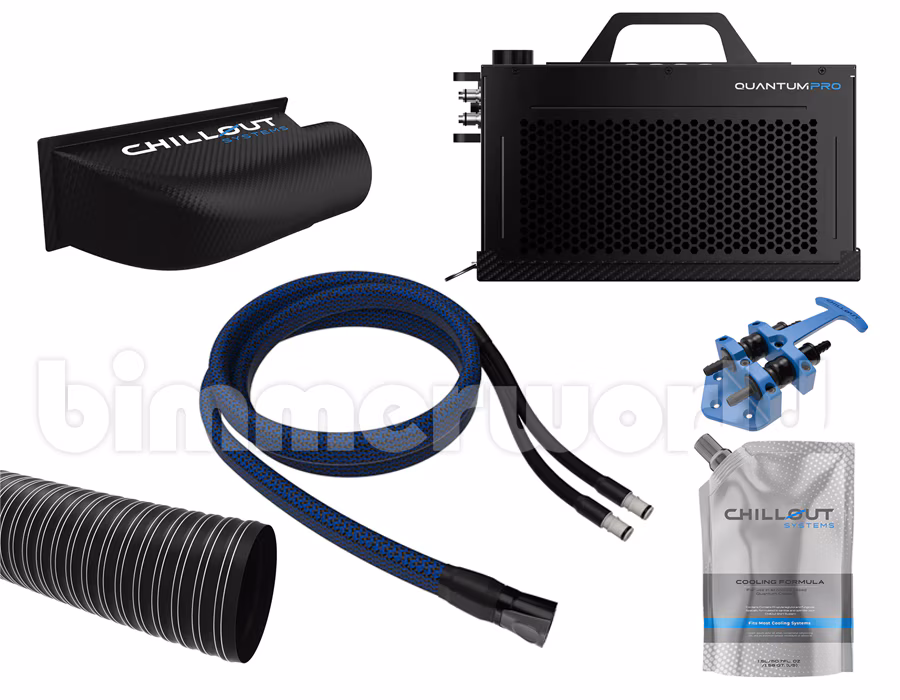

A minimum kit requires the Cooler, baseplate, hardwired to a dedicated 30A circuit, coolant, coolant hose, and a shirt. We recommend 4" ducting and hose to supply the Cooler with the cleanest, coolest airflow (it's not recommended to mount the Cooler against a hot panel or any place where it may draw chemical fumes). Using 4 inch ducting eliminates the need for a supplemental blower. 3 inch ducting, though effective, can be very restrictive and require the use of a high performance (250+ cfm) blower. Exhaust venting is not necessary as the system basically cools itself. Additional accessories include breakaway connectors, longer hoses, different shirt styles, ducts, and blowers.
FEATURES:- 13oz tank capacity
- Fully loaded with fluid and the mounting plate the ChillOut Cooler weighs just 12lbs!
- Internal 360 cfm brushless circulation fan.
- Dual 220 cfm intake fans

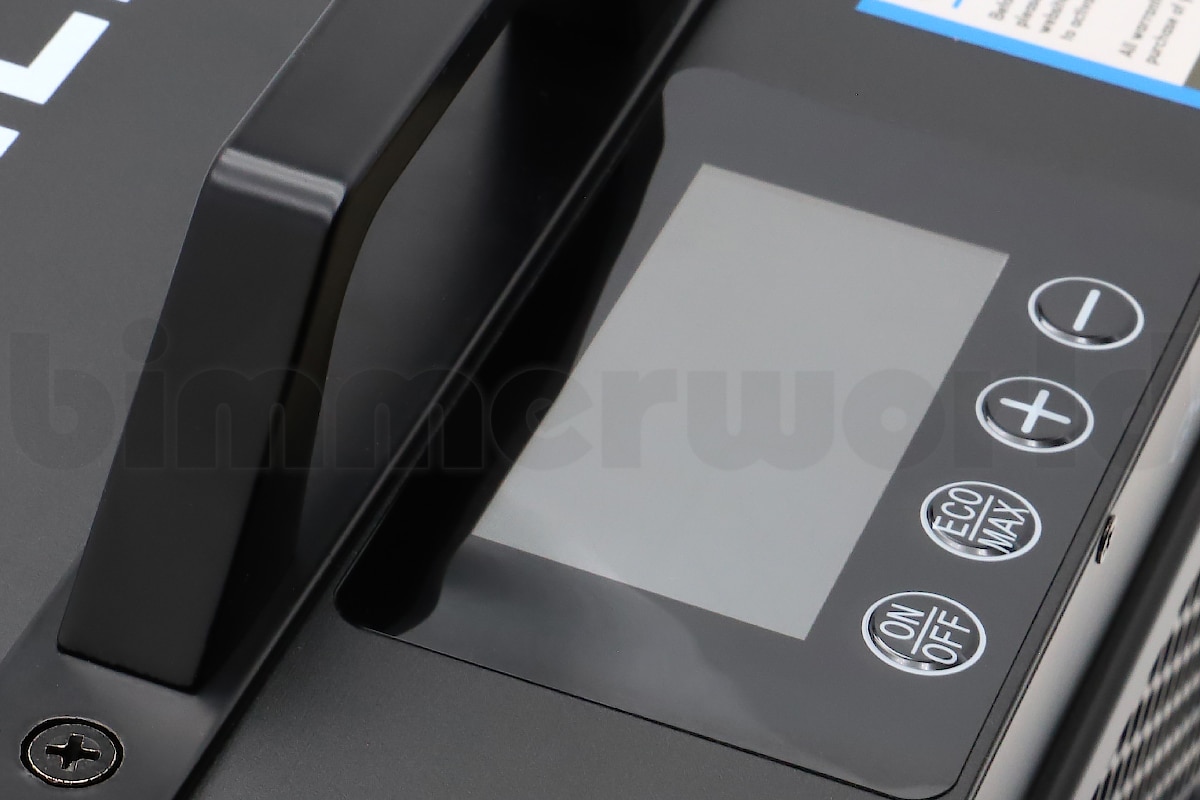

- Full color LCD control panel and display (remote control optional).
- 5 temperature settings that support varying performance conditions
- Eco mode maintains system under 18 amps at all times
- 50% larger condenser and 25% larger evaporator compared to V3
- No more cooling loops needed to pre-cool! System stays running and cooling during driver changes.
- Proprietary internal valve system that allows the cooler to continue to cool and circulate even when a shirt is not connected.
- Quick release pin mounting mechanism.
- IP65 rated.

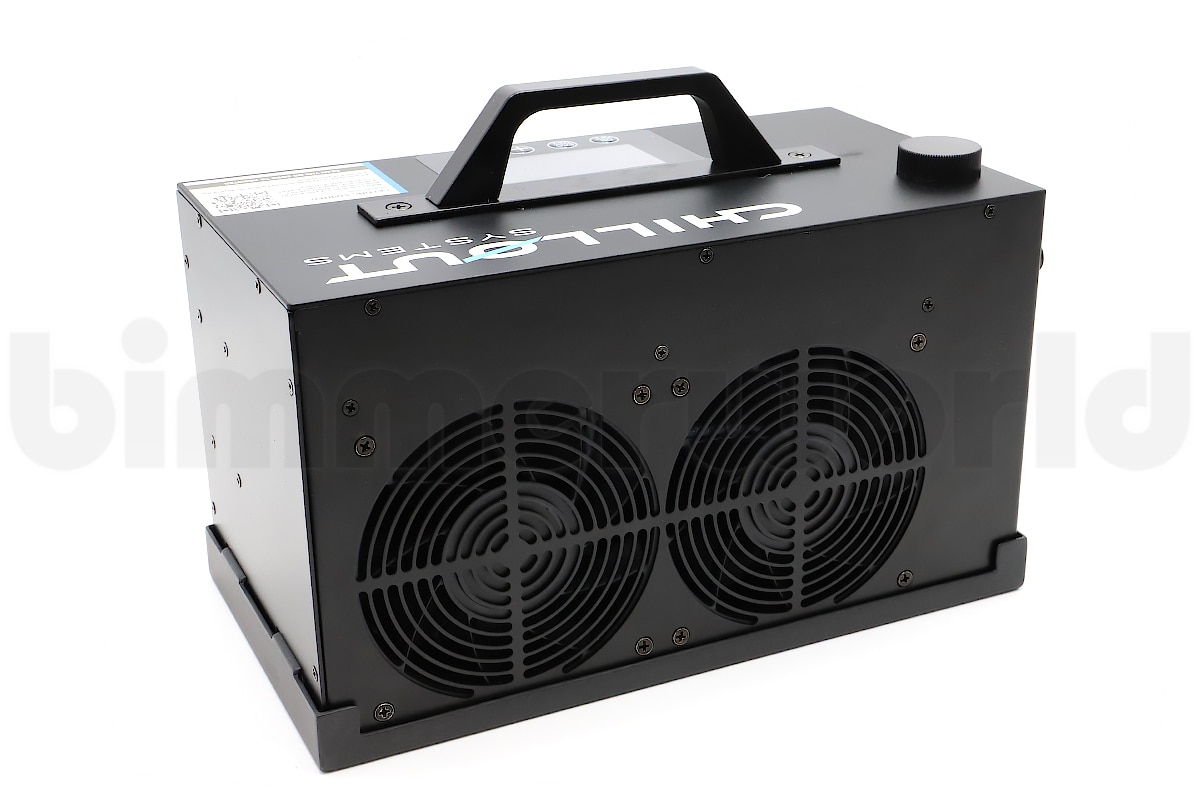

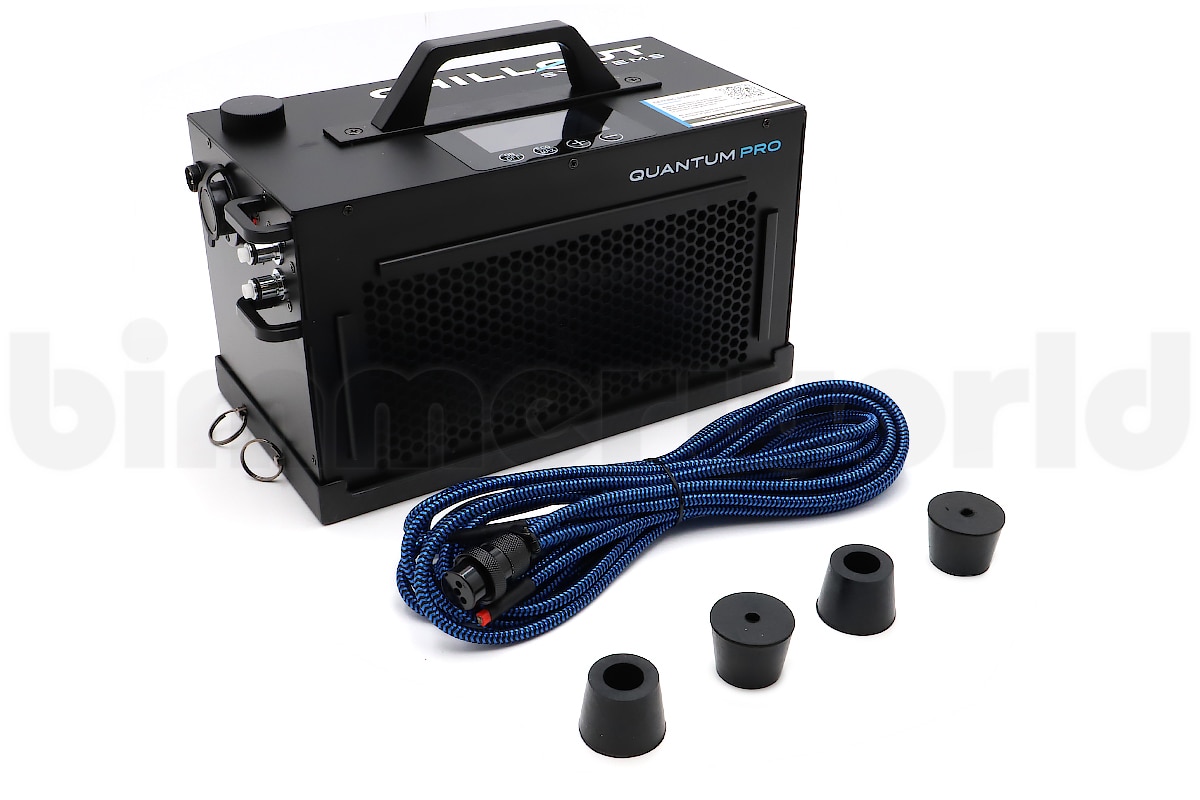

INCLUDED:- Quantum Pro Cooler
- Mounting Plate

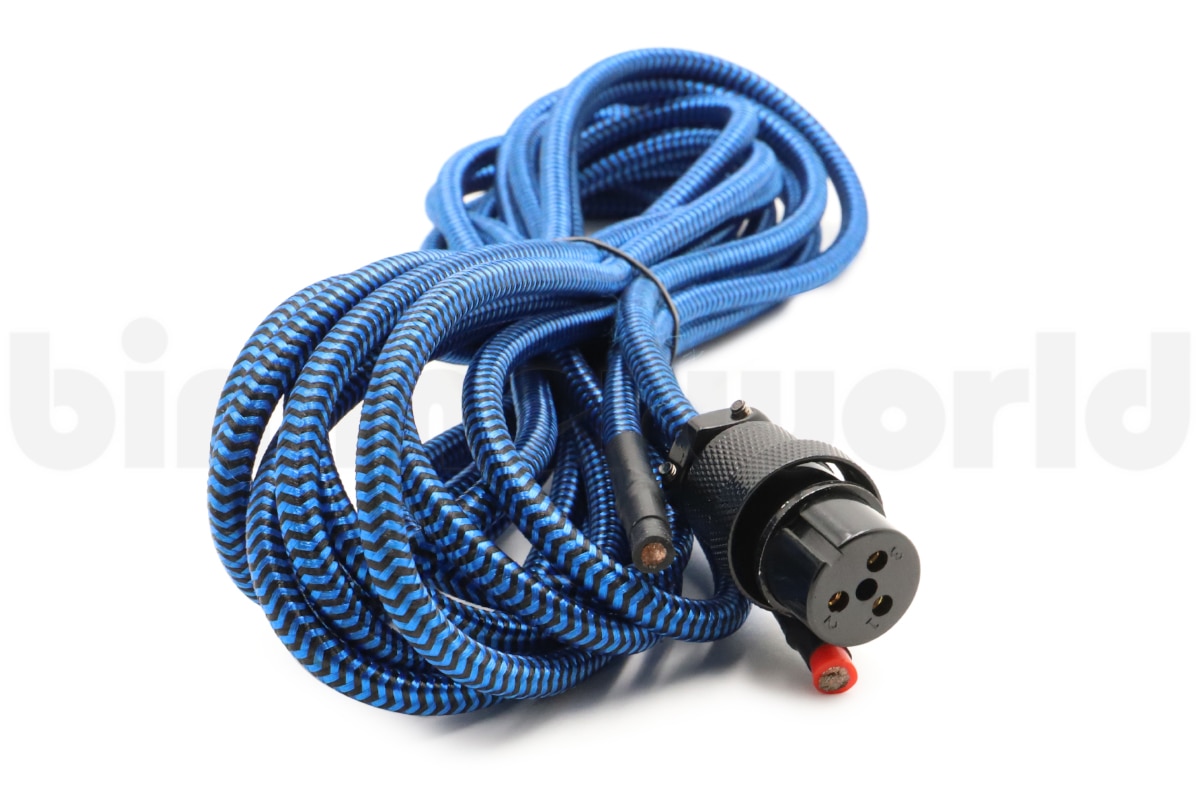

- Wiring Harness
- Locking Ball Pins
- Priming Tube
ChillOut systems is a new approach to driver cooling with a focus on high quality components, minimal maintenance and downtime, and light weight. The heart of the system is the blower which produces as much cooling power as systems 5x its size. Next is the use of a unique coolant formula that does not rely on ice. This means more consistent cooling for a longer period of time and no lost time refilling a cooler. ChillOut Systems is nothing less than a total overhaul of driver cooling, designed by and for racers. We feel that even at a premium price point all of your expectations will be exceeded. All ChillOut products have a 18 month warranty.
