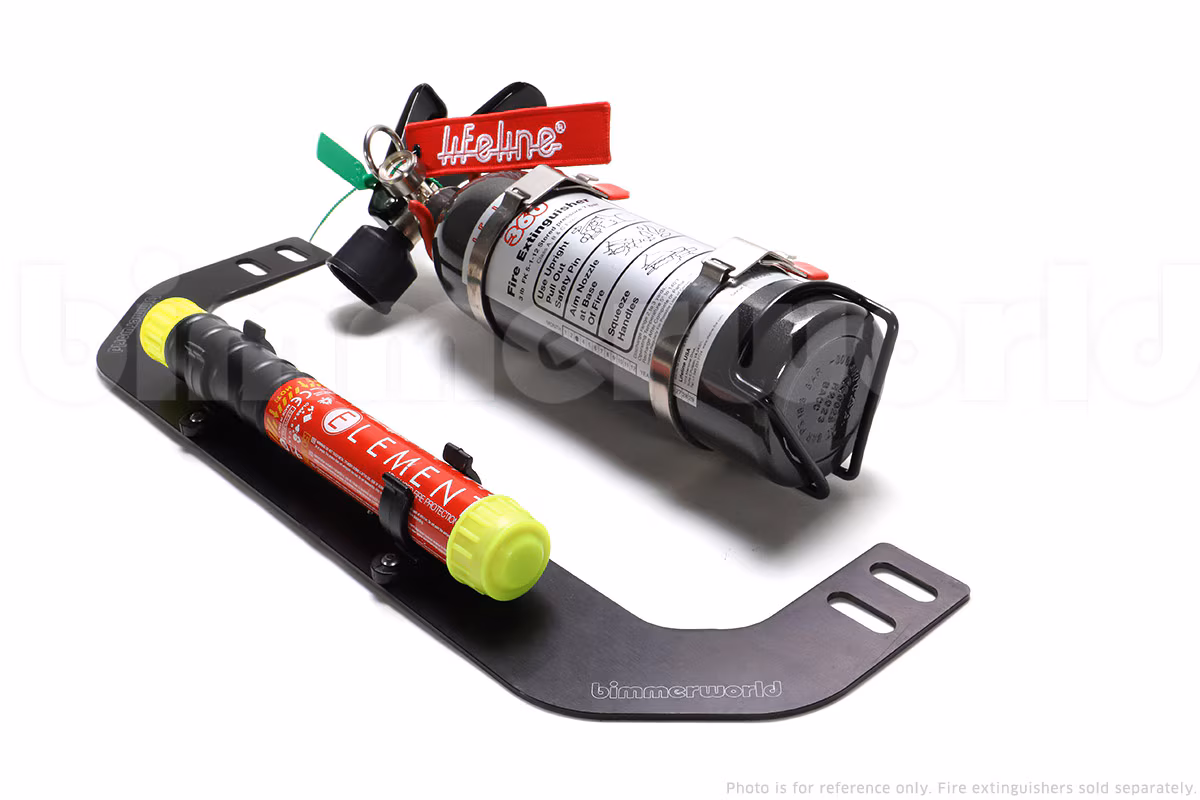

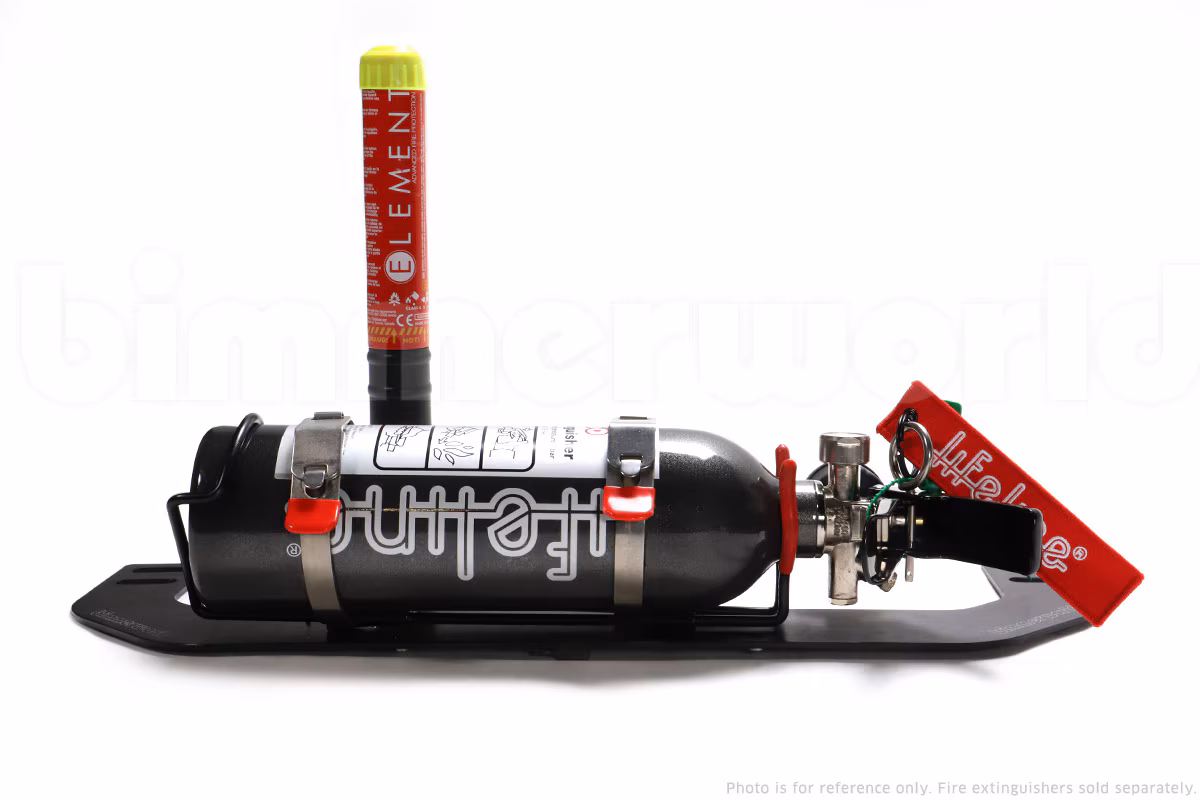

Bracket to mount an Element Fire Stick or fire extinguisher bottle under the front of the passenger seat on E30, E46, E90/E92 3-series models.

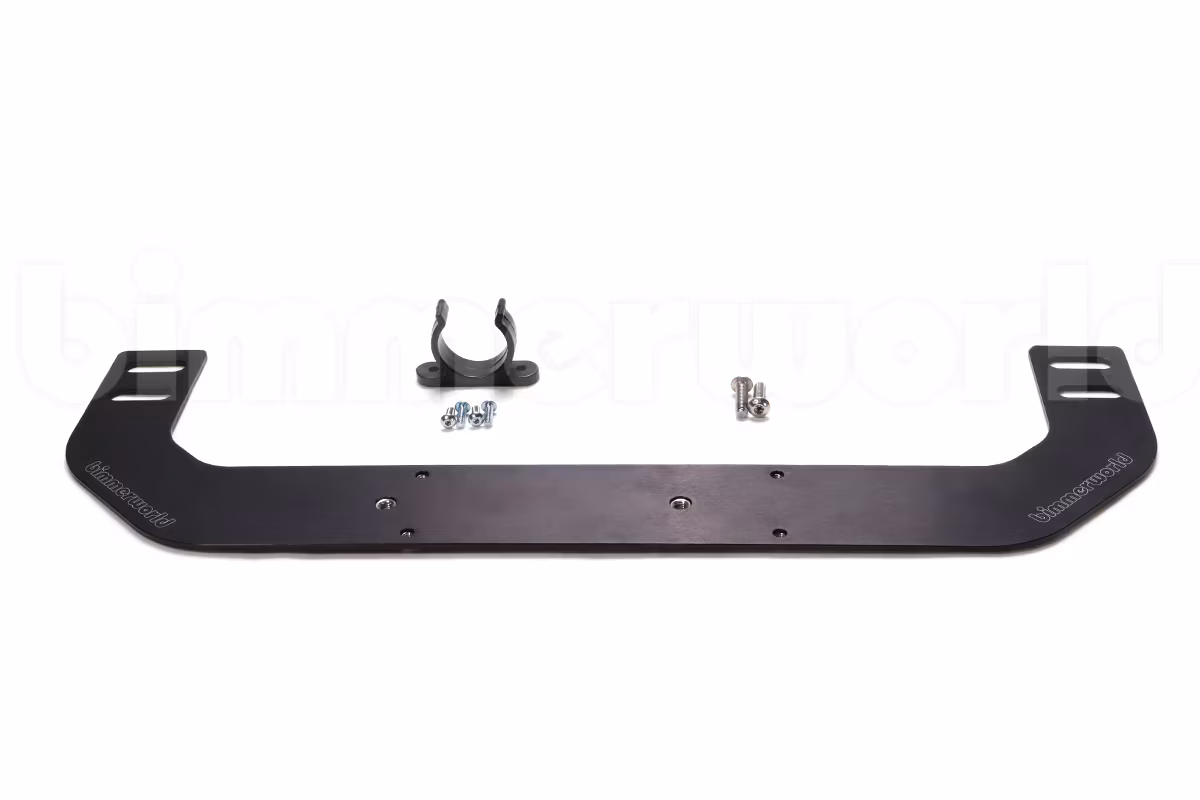

This bracket is an easy bolt-on solution to mounting an Element Fire Stick or small fire extinguisher bottle under the passenger seat of most 3-series BMWs - E30, E46, E90*, E91*, E92*. Unlike other universal brackets on the market, ours is designed specifically for the Element or Lifeline fire extinguishers and is Made in the USA. Other brackets are made outside of the US and are not bottle-specific, leading to inadequate and potentially unsafe mounting.
+ True bolt-on under the existing seat sliders. The mounting holes are channeled to accommodate different seats
+ Slim design and profile to not interfere with seat cushions or features
+ Specific mounting holes for two (2) Element mounting clamps (2nd clamp included!)
+ Specific mounting holes for the Lifeline 3lb FK (aka Novec) fire extinguisher bottle
+ Pre-installed captive nuts, saving you time and hassle during the install
+ Will fit either passenger (recommended) or driver seats
+ Completely reversible and transferrable to other chassis
+ 6061-T6 aluminum and anodized with bimmerworld logo
+ Made in USA
*E9X Fitment Note: The seat track width is the narrowest of the models listed and fitment will be tight but we confirmed installation on multiple E9X models before release.
Element note: we designed this for the smaller Element E50 fire stick. The larger E100 will also fit but will reduce clearance to the seat.
Other bottle note: other fire extinguisher bottles may also fit. The bolt spacing for the Lifeline bottle bracket is 124mm (4.89").
BMW Fitments:
3 Series
E30 (84-91) > 318i
E30 (84-91) > 318is
E30 (84-91) > 325e
E30 (84-91) > 325es
E30 (84-91) > 325i
E30 (84-91) > 325is
E30 (84-91) > 325ix
E30 (84-91) > M3
3 Series
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 325xi
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
E46 (99-05) > M3
3 Series
E90 / E91 / E92 / E93 (06-13) > 323i
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 325xi
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 328xi
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 330xi
E90 / E91 / E92 / E93 (06-13) > 335i
E90 / E91 / E92 / E93 (06-13) > 335is
E90 / E91 / E92 / E93 (06-13) > 335xi
E90 / E91 / E92 / E93 (06-13) > M3
