4-Point Bolt-In Roll Bar - F32 4 Series Coupe

4-point roll bar improves safety with harnesses

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •


  •

Price:
$1,930.00 – $2,100.00

A roll bar is the safest and best way to mount harnesses in your F32 4 Series Coupe track car and provide additional safety during a roll over. The right combination of safety equipment will produce the best and safest results. A roll bar offers additional safety when used properly with harnesses. This roll bar is specifically made for the 2014-2020 4 Series Coupe, such as the 440i Coupe, 435i, Coupe, 430i Coupe, and 428i Coupe models.


  • If you're running with a HANS device, harnesses should be routed straight back from the seat to a roll/harness bar. Running harnesses down to the rear seat belt anchors is not the preferred installation. Wrapping the harness ends around the bar keeps the harness squared on your shoulders.
  • In addition, most seats are not tested or approved for downward harness installations. The seatback may not be strong enough for the types of loads coming from your body strapped in by a harness. The harness bar gives you a better angle if you choose to mount the harness at a downward angle. Or wrap the harness around the bar.

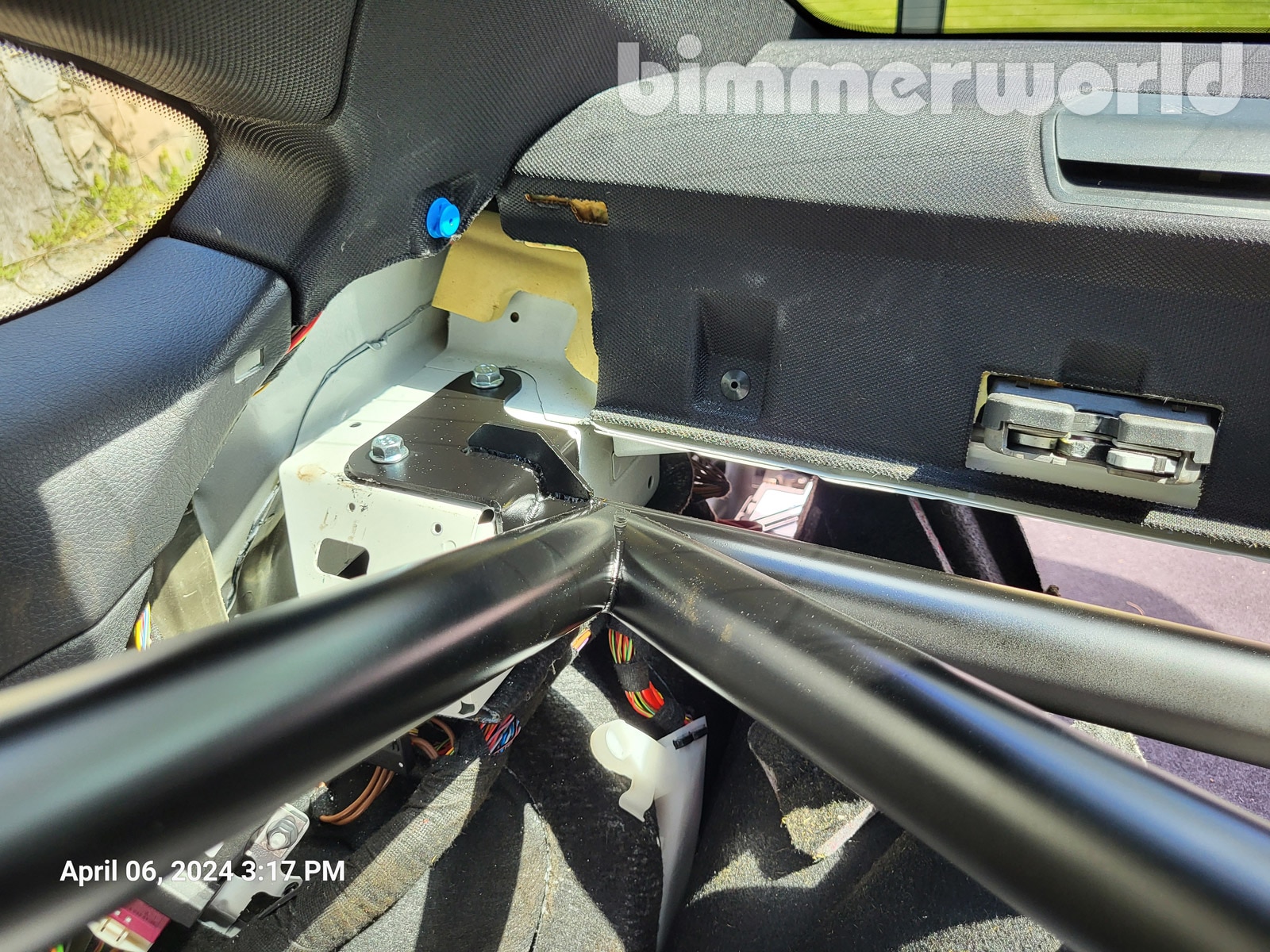

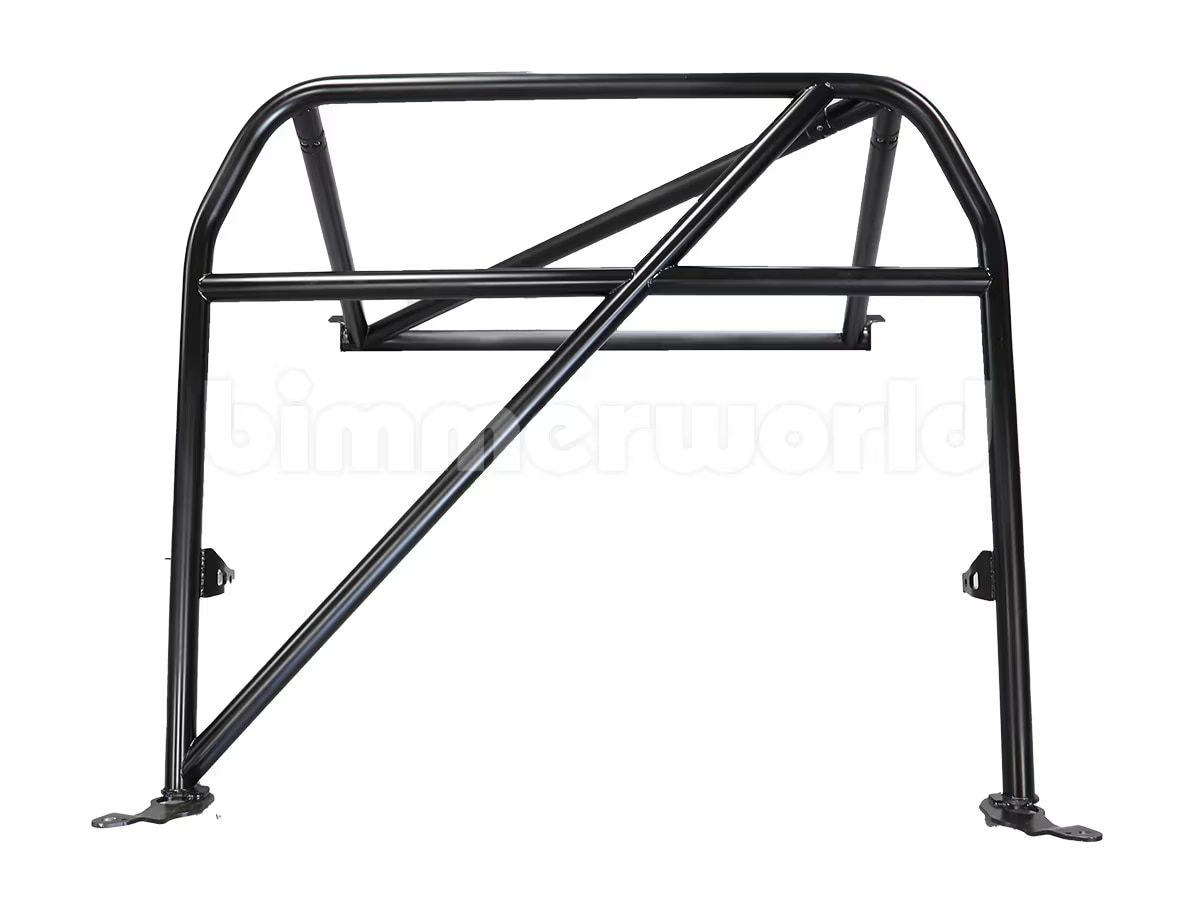

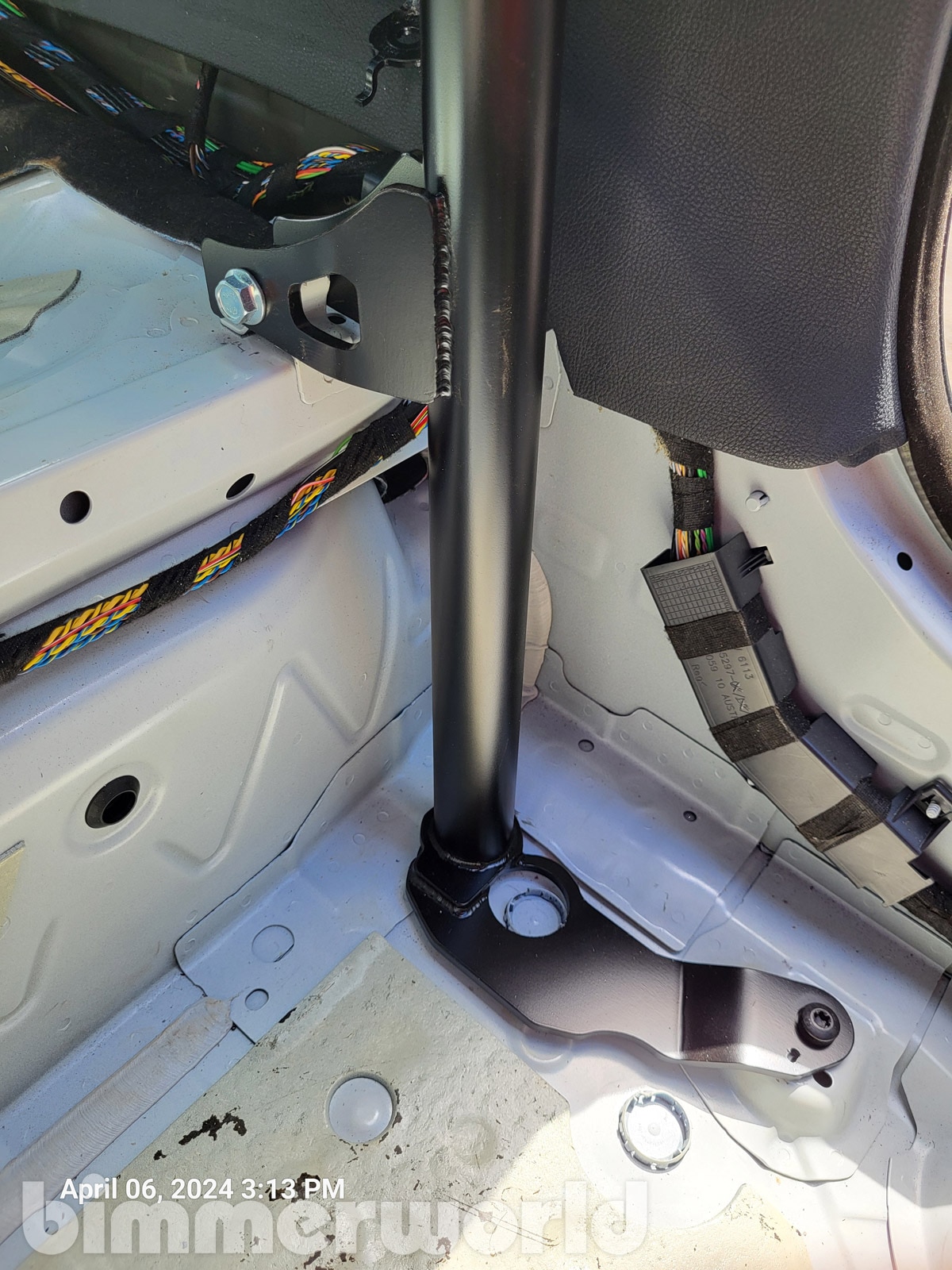

This bolt-in roll bar/harness bar is the best we have seen for the F32 coupe. It attaches to the chassis at six points - floor, rear seat bulkhead, and rear shock towers. It's a true bolt-in using existing seat belt anchor points (some of the strongest points on the whole chassis). Unlike other harness or roll bars, there is no drilling or cutting required and it fits with or without a headliner. It fits with the stock or racing seats and the stock carpet (small carpet cut is required or remove it altogether) and meets the requirements for NASA and SCCA for HPDE/TT events. The bars are TIG-welded, 1.75" DOM tubing with Chromoly interlocking tubes and high grade hardware. Base plates are 1/4" thick high tensile steel. Since no permanent changes are required this bar is also completely removable.

Finish options -
Unfinished / unpainted,
Standard Black (additional cost),
Custom (additional cost). Choose from hundreds of powdercoat colors from these samples (click for larger)


Angle options -

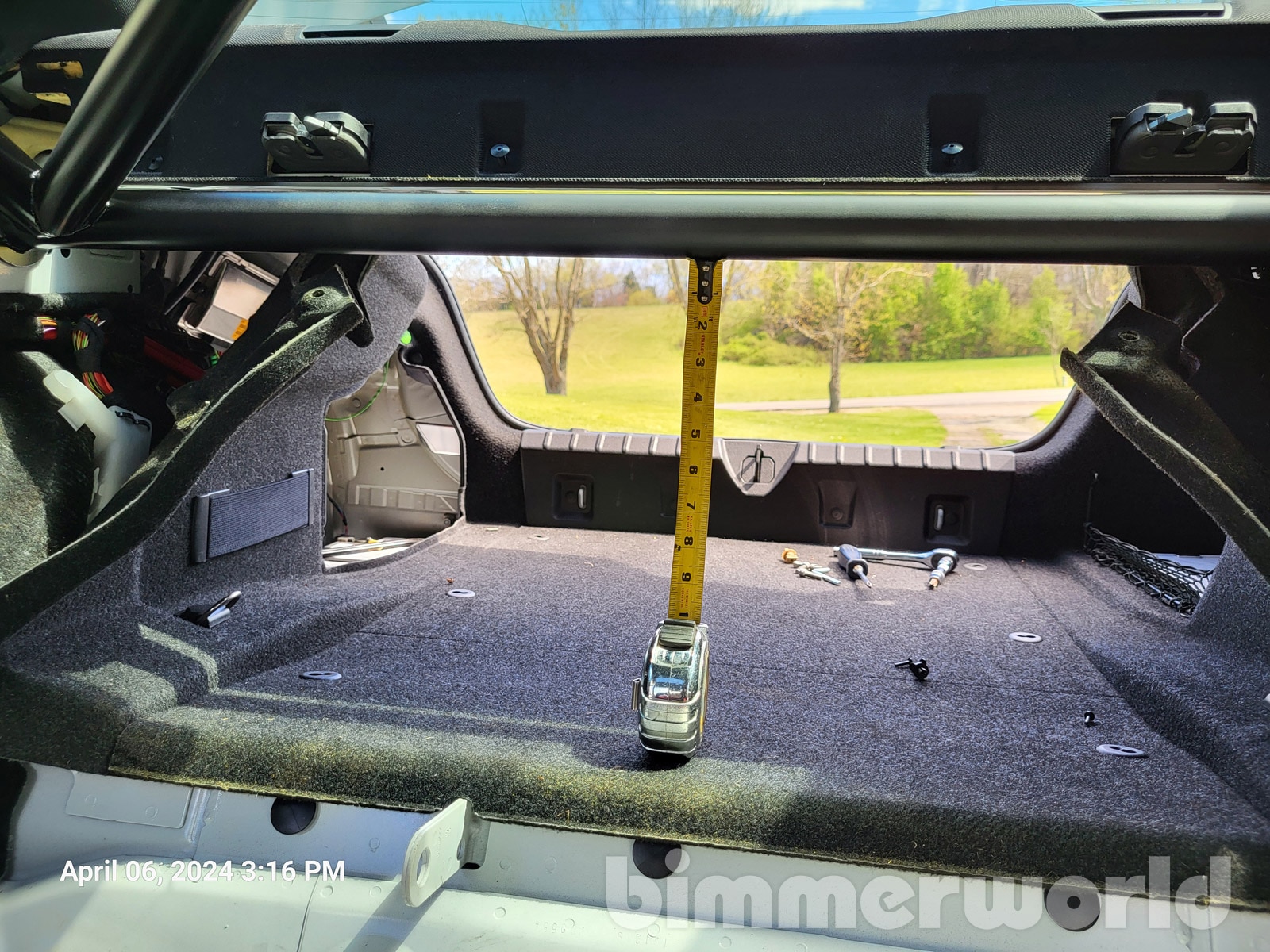

- High puts the rear crossbar 13" off the floor so you can store tires underneath it. (A Low option is not available at this time).

Spec options -
- With unmodified factory interior, including sunroof.
- Without interior and headliner installed (2" taller bar).

Made in the USA.
Ships via truck freight.



BMW Fitments:
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive
