Programmable button panel for racing steering wheels on G80 M3, G82 M4, and G87 M2 without the optional ACC Active Cruise Control.
+ User-programmable button panel

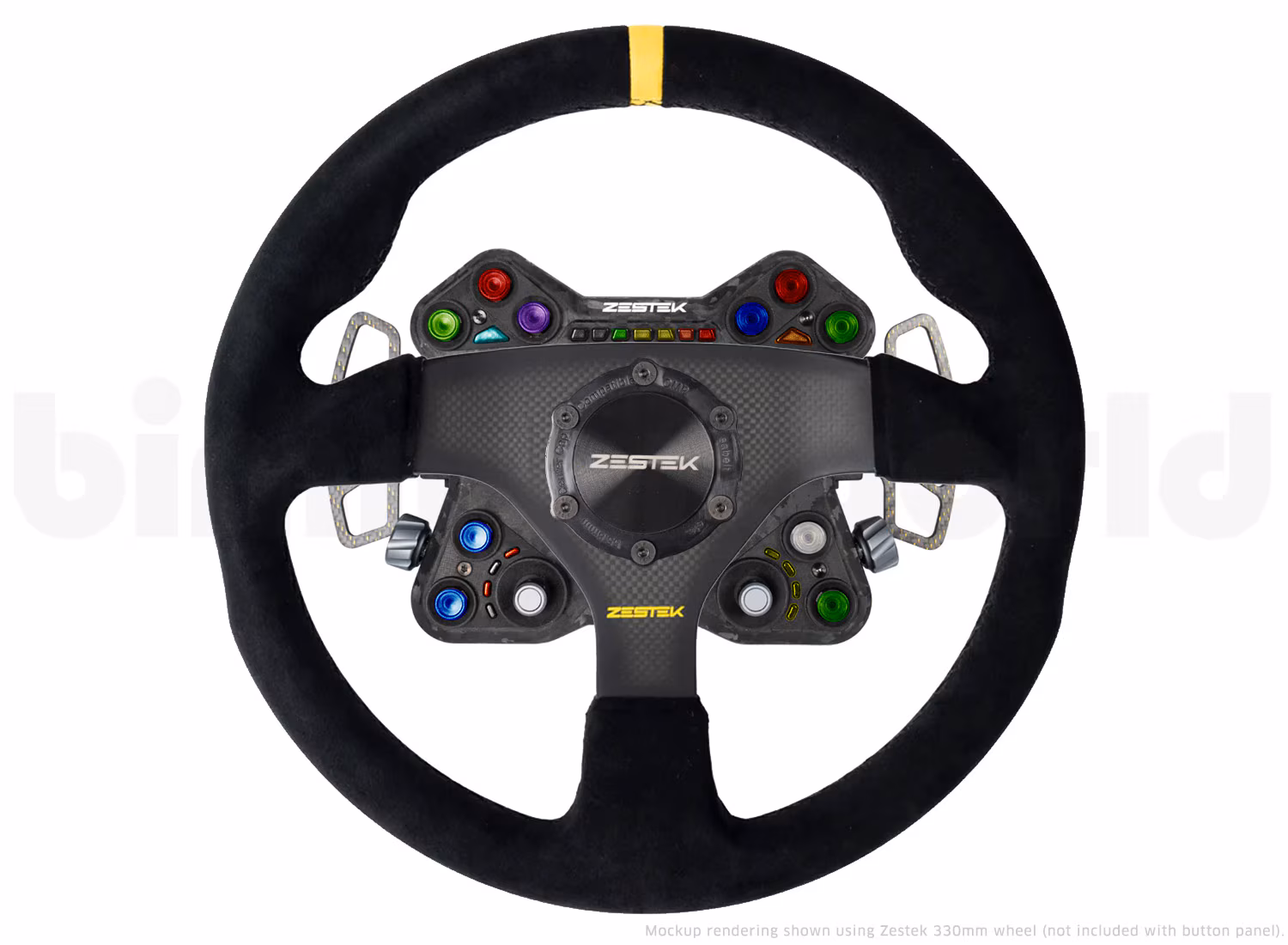

+ Fits any racing wheel with the common 6x70mm bolt pattern (wheel sold separately)
+ Fits under 350mm and 330mm wheels (330 might be tight on clearance)
+ Includes quick-release hub
+ Includes G8X steering hub adapter
+ Magnetic paddle shifters with adjustable position*
+ Direct pin connection (no coil harness)
+ Near Plug-and-play connection to factory controls and wiring
+ Vehicle-specific electronic interface
+ Retains OE steering wheel functions
+ OBD data connection**
+ Optional wireless LCM data connection (control light functions from the wheel)
+ Optional wireless BCM data connection (control body and chassis features from the wheel)
+ Optional wireless switching control (control 3rd party auxiliary or analog components from the wheel)
10 round push buttons
2 triangle push buttons
2 thumb wheel dials
2 rotary dial joysticks
2 paddle shifters*
The G8X steering column hub adapter is included.
For Pre-LCI models only. This includes cars in the 2021, 2022, 2023, and 2024 model year which were before the LCI / facelift changes were made. Not for cars after the 2024 model year.
Each control is fully programmable using Zestek software on your Windows PC or laptop via a USB-C connection. You have access to everything on your stock BMW multi-function wheel - and more! Program mode, horn, radio volume, cruise control, and anything else from your stock wheel. You're not losing any functionality switching to a race wheel and gain personalization over other racing button wheels on the market. The six push buttons can be color-coded through the software and color-coded decals are included for other controls. Pictogram, text, and alphanumeric labels are also included.
Using one of the optional Zestek modules you will be able to map the controls to other existing functions like the HUD, iDrive menus, ECU map switching, etc. These modules are under development and price is TBD.
Note: Zestek makes button panels that work with either the OEM CAN or an aftermarket CAN (such as AIM or Motec), but not both. This will not control your radio volume and toggle your AiM dash with the same Zestek controller. This particular product is for the OEM vehicle CAN only. Contact us if you want a Zestek hub for your aftermarket CAN / ECU.
* paddle shifters are included, even for manual transmission cars. The paddles can be removed or be programmed as controls.
** OBD connection is wireless via a dongle plugged into the 16-pin OBD port. This is an ongoing development and not all data from the OBD port will be available to the wheel at this time. There are a lot more features in development! The OBD port can only support one dongle at a time so if you use the port for data logging, a dash display, or any other peripheral it cannot be used for the wheel.

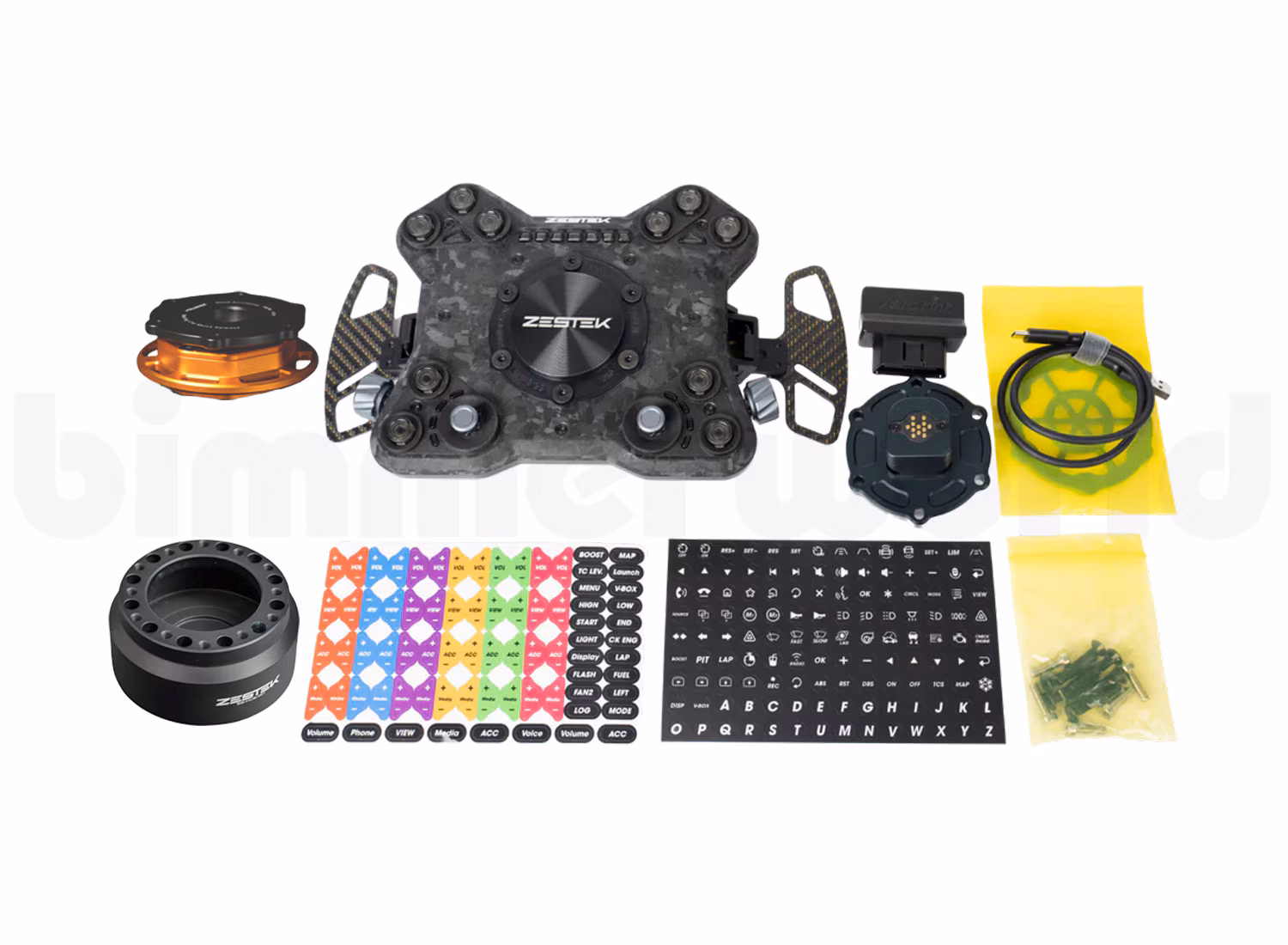

What's in the box?
Button Control Panel
G8X Vehicle Protocol Adapter
G8X steering hub adapter
Quick-Release
Hub spacers
Zestek wheel center
Magnetic paddle shifters
VeloLink OBD wireless dongle
USB-C cable
Hardware kit
Labels
Allen wrench
BMW Fitments:
2 Series
G87 (2023-) > M2 (2023-2024)
3 Series
G80 (2021-) > M3 (2021-)
G80 (2021-) > M3 Competition RWD (2021-2024)
G80 (2021-) > M3 xDrive Competition (2021-2024)
4 Series
G82 / G83 (2021-) > M4 (2021-2024)
G82 / G83 (2021-) > M4 CSL
G82 / G83 (2021-) > M4 Competition RWD (2021-2024)
G82 / G83 (2021-) > M4 xDrive Competition (2021-2024)
