Front Strut Hardware Kit, BMW - F15 X5, F16 X6 (with Adaptive M suspension)

This part is listed by BMW as BMW part number 31352475201 (31 35 2 475 201) and is described as a hardware kit for a front strut replacement on F15 X5 and F16 X6 with the optional Adaptive M suspension (option code 2VF). This is the perfect complement to a new front strut replacement as it includes nearly all of the hardware that can be replaced*.

Do I need new hardware? Yes… The factory BMW torque spec for these bolts is to tighten to a specific torque value and then tighten an additional specific amount. The additional tightening will stretch the bolt and help ensure it does not become loose. Unfortunately, the stretch means the bolt is 1-time use and it will not take another tightening without compromising its strength. These bolts will likely fail if re-used!

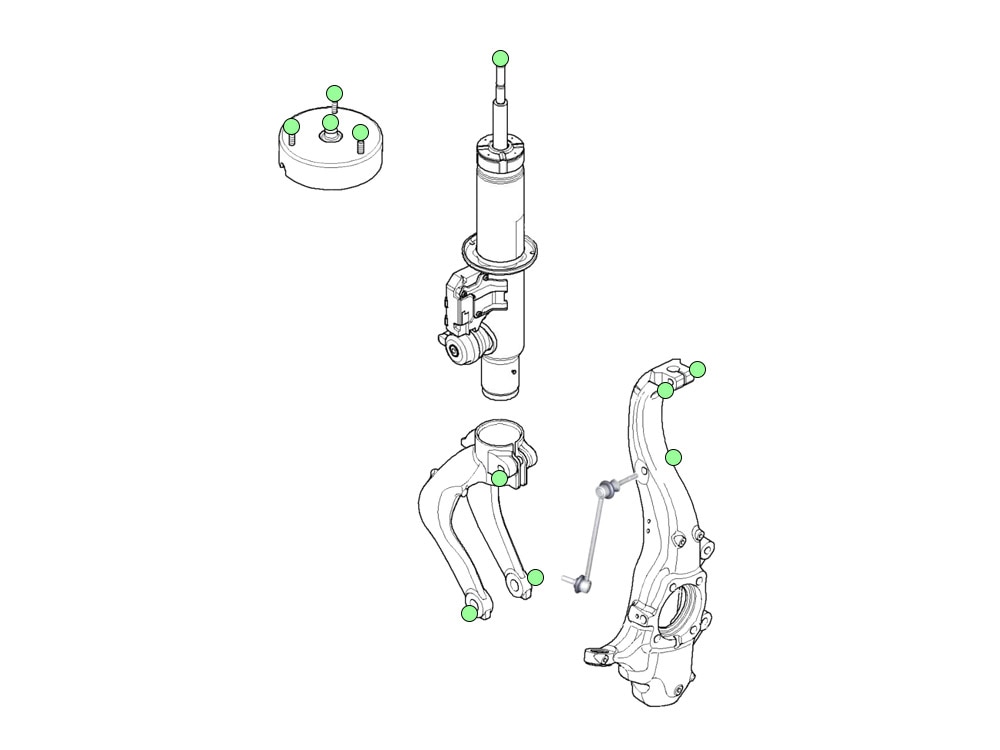

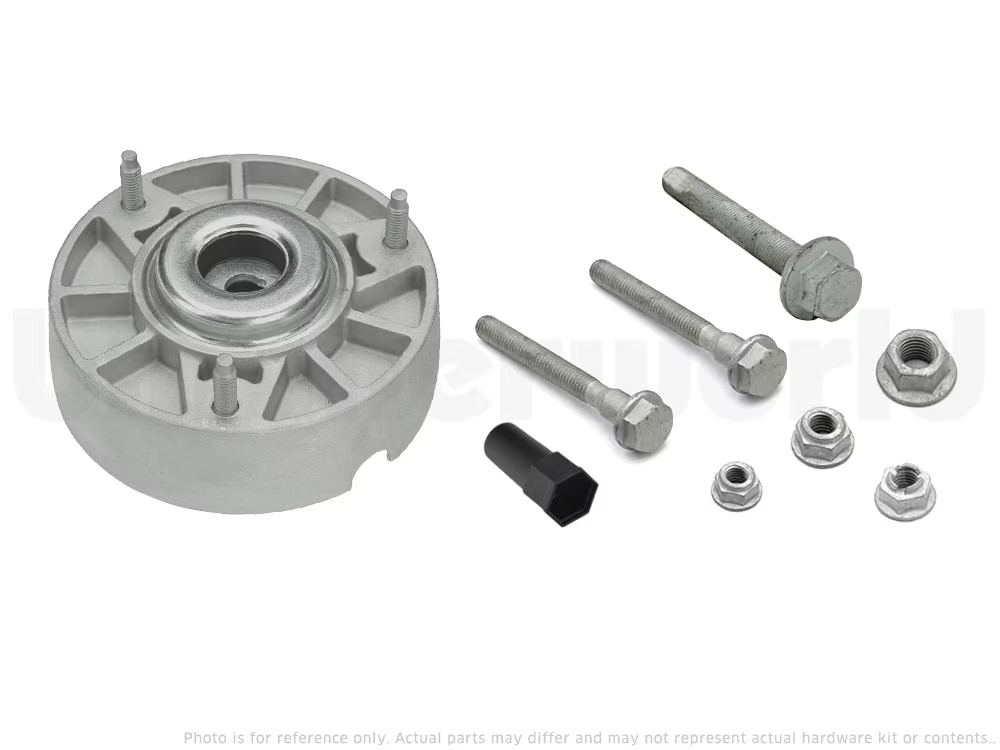

X5 Front Strut Hardware Kit contents -

1 x 07119905862, upper pinch bolt (M10x60mm)
1 x 33306760585, upper pinch nut
1 x 07119906898, lower fork hex bolt (M14x105mm)
1 x 31106768934, lower carrier pinch hex bolt (M12x50mm)
1 x 31306864780, top nut cap
1 x 31306851880, strut top mount (guide support)
3 x 31316771889, strut top mount M8 hex nut
1 x 32216769539, strut top nut (M12x1.5)
1 x 33326760374, sway bar link nut

This is the hardware for a strut replacement or removing top strut mount.

*BMW also calls for a new bump stop and dust boot. See our Related Items below.

This is a Genuine BMW X5 strut hardware kit with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

For full BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.
