Vorshlag Camber Plates - F8X M2/M3/M4

This Vorshlag front camber kit is designed for use on F87 M2, F80 M3, and F82/F83 M4 models. This kit includes left and right camber plates, which are compatible with 2.25", 2.5", or 60mm springs and a variety of different struts (see list above). These come pre-configured for 5-bolt strut towers and cars with 3-bolt strut mounts simply won't use two bolts from each plate.

Once installed, this kit allows approximately 2.5 degrees of camber adjustment. Adjustment can be made with basic hand tools.

Product Features:

• Camber adjustment range is approximately 2.5 degrees
• Compatible with all common coil over spring sizes - 2.25, 2.5, 60mm
• Installs with basic hand tools, no chassis modifications required.
• Camber is easily adjustable at the track with simple hand tools
• The spherical bearing used in the Vorshlag camber plate is the largest used in any BMW camber plate on the market. The result has much better durability and wear characteristics than the undersized bearings used in our competitors' plates.

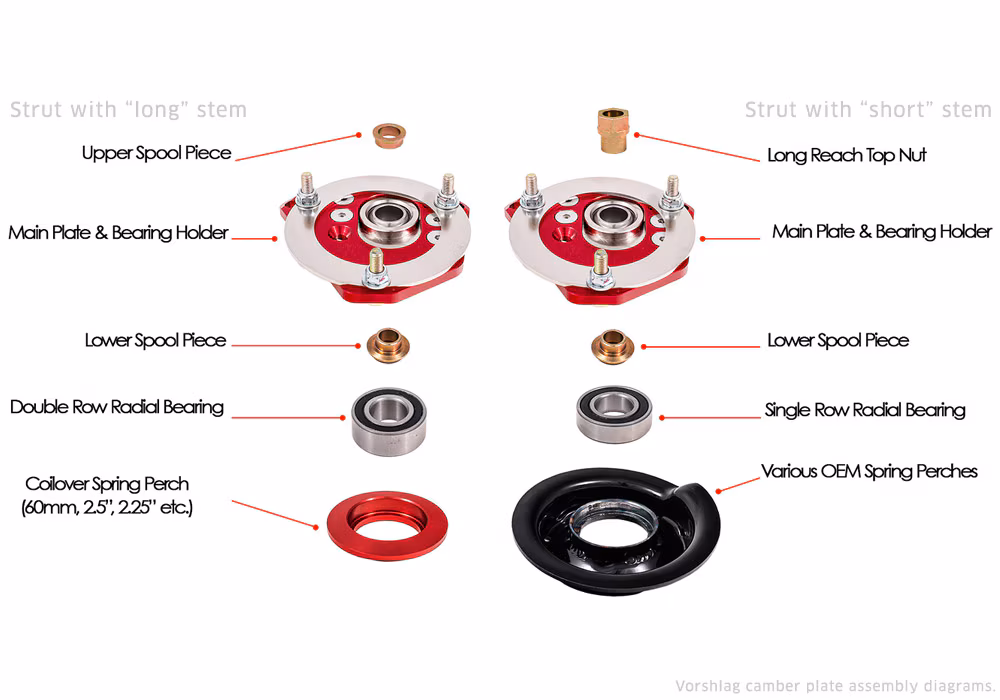

• Aluminum alloy main plate and 2-piece steel alloy bearing holder construction
• Sealed radial ball bearings isolate steering movement from spherical bearing. These do not have to be removed monthly and re-greased like competing models that use a flat, unsealed Torrington bearing
• All components machined in-house at Vorshlag on our CNC machines
• All components plated or anodized for maximum corrosion resistance and long life.

Select the spring size and strut brand from the menus above. Contact us if you don't see your combination listed.

Spring Notes: if your existing shocks/springs came with their own top mount you likely have a 60mm, 2.25", or 2.5" spring. If they are compatible with the stock front strut mount you likely need the “Stock/Sport Spring” option above. This is not always the case but is typical.

Shock Notes: the nut we include must match the strut pin on your car. But some strut manufacturers change the thread size. Select the correct shock type from the options above. In some cases a standard hex nut is not compatible with camber plates and a special extended deep nut is needed. We provide the correct nuts based on your selection. Contact us if you're not sure and we can send multiple top nut options.

Made in the USA
