Rear Differential Front Mount, BMW - E60/E61, E63/E64

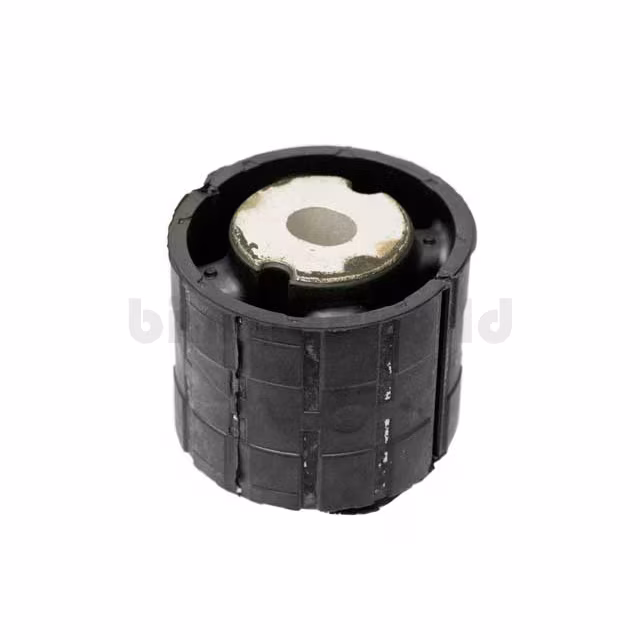

This part is listed by BMW as BMW part number 33176767525 (33 17 6 767 525) and is described as the front rubber mount on the rear differential.

This E60/E63 Lemforder OEM diff bushing is a direct replacement for the original bushing in the front of the subframe. As an OEM bushing it is the same in every way to the original BMW bushing. As torque is transmitted through the differential and rear subframe, the differential can twist on its mounts. The constant loading/unloading leads to worn out rubber bushings. Symptoms of worn differential mounts include "clunking" from rear end.

Sold per mount. Two required per car. An additional rear mount is also available.

This is an OEM diff mount manufactured by Lemforder - the original supplier to BMW for this part, as well as many other bushings and mounts. As the OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.

BMW Fitments:

5 Series
E60 / E61 (04-10) > 525i M54 (2004-2005)
E60 / E61 (04-10) > 525i N52 (2006-2007)
E60 / E61 (04-10) > 525xi N52 (2006-2007)
E60 / E61 (04-10) > 528i
E60 / E61 (04-10) > 528xi
E60 / E61 (04-10) > 530i M54 (2004-2005)
E60 / E61 (04-10) > 530i N52 (2006-2007)
E60 / E61 (04-10) > 530xi N52 (2006-2007)
E60 / E61 (04-10) > 535i
E60 / E61 (04-10) > 535xi
E60 / E61 (04-10) > 545i
E60 / E61 (04-10) > 550i
6 Series
E63 / E64 (04-10) > 645Ci
E63 / E64 (04-10) > 650i
