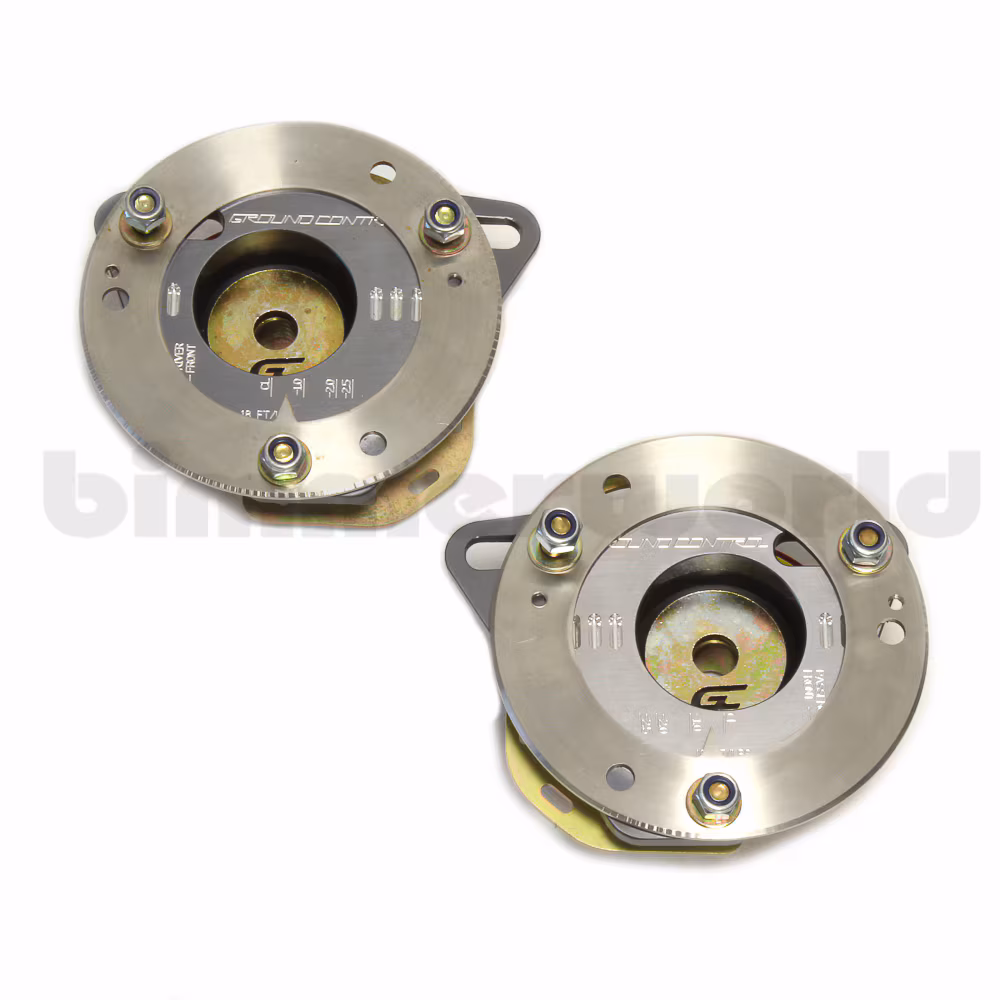

Ground Control Street/Sport Camber/Caster Plates - E82 128i/135i, E9X 325i/328i/330i/335i

Street-optimized adjustable mounts to correct front camber and caster

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

  •

Price:
$493.99 – $548.99

Ground Control Street Camber/Caster Plates for your E82 128i/135i and E9X 325i/328i/330i/335i are based on their race-proven designs but with special features to optimize them for street-use. This not a racing mount, loosely adapted for the street. Features and goals differ between Street and Race designs. Ground Control properly engineers each kit for its intended use - the Street design includes 23mm of camber change (16mm to the negative, 7.5mm towards positive) so you can improve performance but also correct for lowered suspensions. A urethane bushing isolates the bearing to absorb noise, vibration, and harshness much better than a solid metal design. Both camber and caster can be adjusted independently to correct or dial in alignment settings. Ground Control parts are covered with a limited lifetime warranty.

A Ground Control exclusive is the use of two separate bearings to manage load instead of the more typical single spherical. The strut shaft is supported by a proprietary spherical bearing. This supports the strut during side loads and range of motion only. The weight of the car is supported by another, separate needle bearing made specifically for Ground Control with an incredibly high axial rating of 12,100lbs. The two bearing layout greatly reduces the load and strain that a single bearing must support, which means less wear, longer life, quieter operation, and better performance.

E9X Street Camber Plate features:
  • No cutting or modification required for install or use
  • CNC-machined aluminum plates
  • Anodized or plated components for corrosion resistance
  • Aircraft-grade, waterproof spherical and needle bearings
  • Dual bearing layout has less load demands than a single bearing design
  • Isolated urethane bushing to absorb NVH - no metal-on-metal contact
  • Steel slider inserts
  • Rebuildable if you need to replace a bearing or hardware
  • Upper spring perch included
  • Strut-specific hardware included

Select your spring size and shock type from the menus above. The correct bearings, spacers, and hardware will be built into the camber plate for you. Ground Control applications cover all common spring sizes and many popular stock and performance dampers.

Spring Sizes: 60mm (2.3"), 2.5", or any spring that uses the stock upper spring plate including sport/lowering springs.

Shock Type: AST, Bilstein, H&R, KONI, KW, MCS, Moton, Ohlins, and Stock/OEM. If your damper is not in the list, please select "Other" and one of our reps will contact you.

Ground Control has been engineering suspension mounts for competition use since 1980. Their camber plates are based on this rich history of custom suspensions for all types of driving - street, track, and mixed use. Each camber plate is a ground-up design for its intended use, not a compromise. Ground Control-branded parts have a limited lifetime warranty (bearings excluded).

If you need assistance selecting the correct options, please reach out to us via chat, email, or phone. Our expertise in BMW suspensions is unparalleled and we're happy to get you the right parts. In rare cases we may need to contact you during the order process to verify specs or get additional information.

BMW Fitments:

1 Series
E82 / E88 (08-13) > 128i
E82 / E88 (08-13) > 135i
E82 / E88 (08-13) > 135is
3 Series
E90 / E91 / E92 / E93 (06-13) > 323i
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 335d
E90 / E91 / E92 / E93 (06-13) > 335i
E90 / E91 / E92 / E93 (06-13) > 335is
