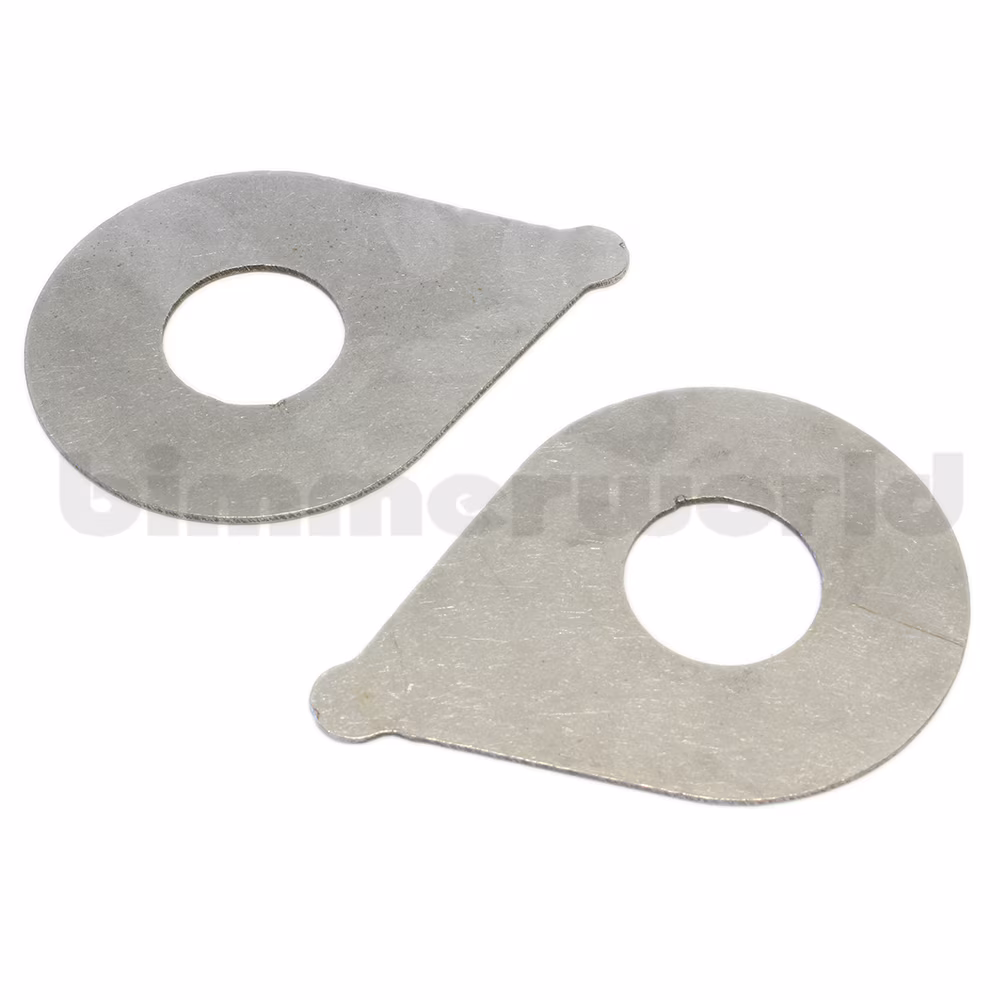

Rogue Engineering E46 Rear Spring Perch Reinforcement

Prevent damage to your rear spring perch

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -



For those that use coilovers on E46 vehicles, prevent damage to your rear spring perch with the Rogue Engineering E46 Rear Spring Perch reinforcement.  This ONLY applies to E46 vehicles (not E36) because of the cast aluminum construction of the lower arm.  The use of coilover rear spring adjusters concentrates the load onto the center of the arm, causing it to crack or break.  Damage to this lower arm can cost over $500!  This requires replacement of the arm (approximately $250 from the dealer) and labor (about 2-3 hours, side dependent).

These stainless reinforcements prevent this from happening.  By spreading out the load, it emulates the factory rubber pad by dispersing the load over a larger area preventing damage.  Unlike the factory rubber pad, our reinforcement is only 1/8" thick adding very little additional thickness.

Made here in the USA, plates are constructed from CNC plasma cut stainless steel.  They will never rust and requires no maintenance.  Just install and go!

Sold by the pair.

These reinforcement plates are a direct bolt in for the following vehicles:
  • All E46 Models - 1999-2006 323i, 323ci, 328i, 328ci, 325i, 325ci, 325xi, 330i, 330ci, 330xi - sedan, coupe, convertible, wagon
  • All E46 M3 - Coupe and Convertible

BMW Fitments:

3 Series
E46 (99-05) > 320i
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 325xi
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
E46 (99-05) > M3
