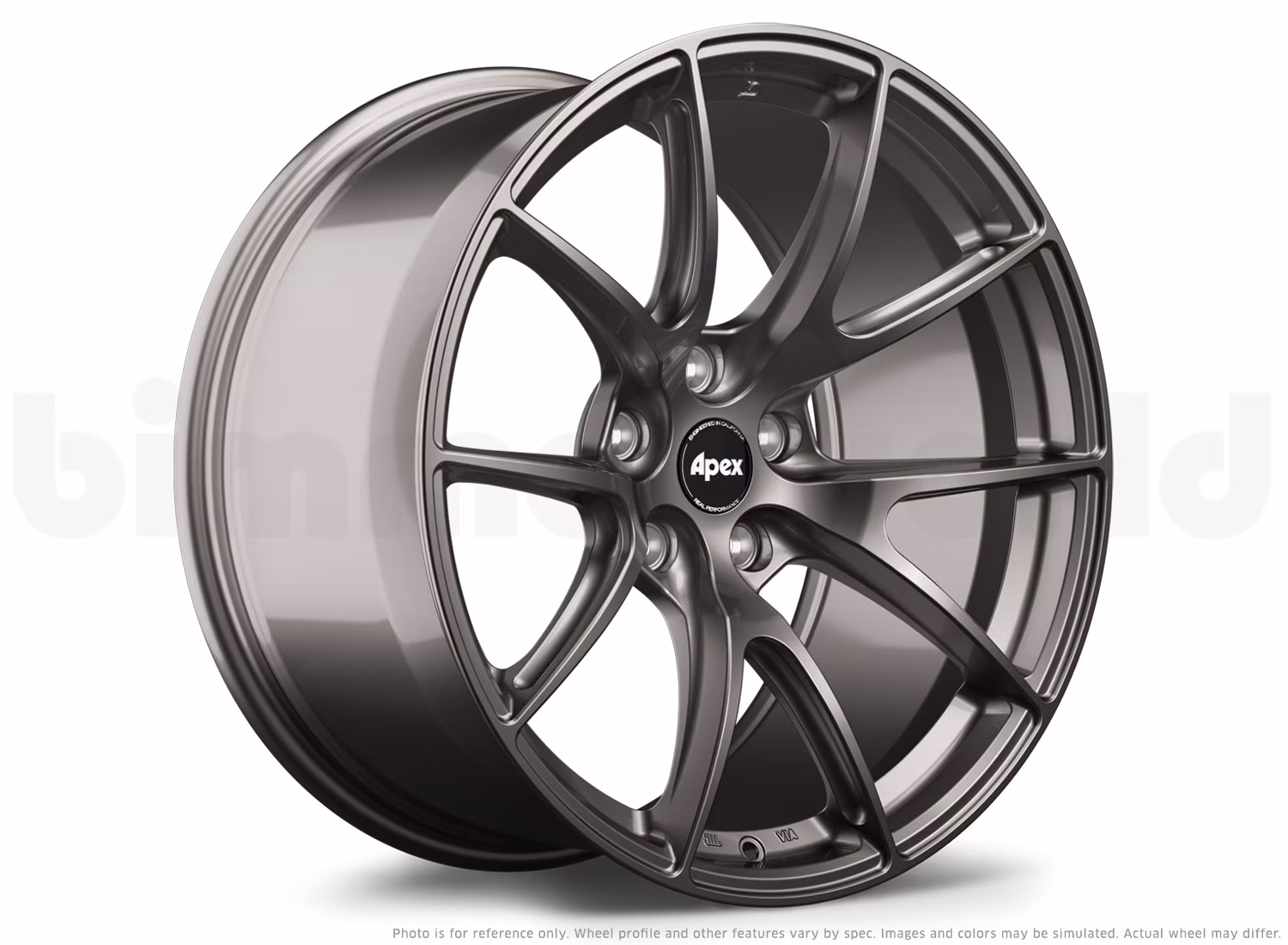

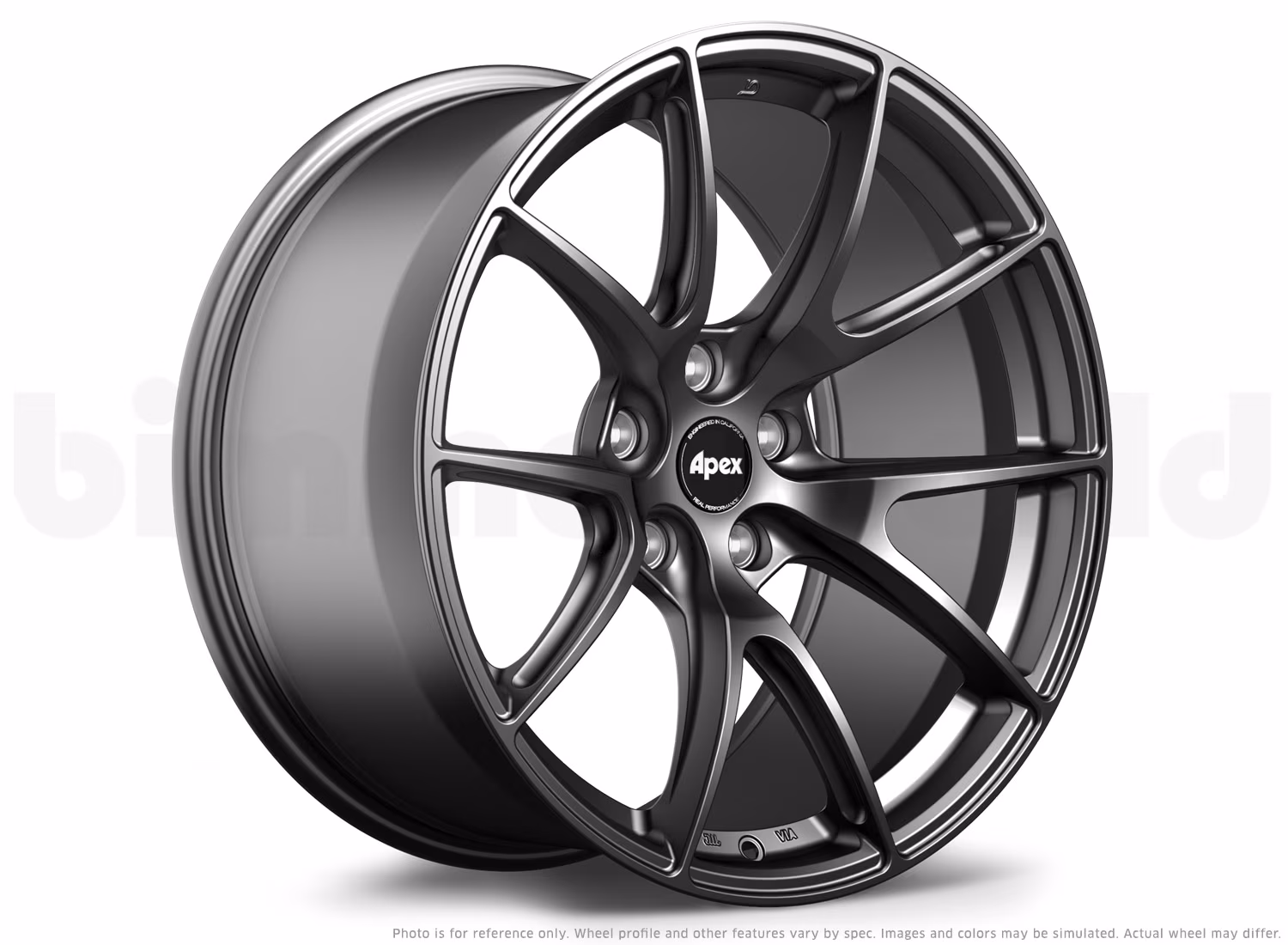

APEX VS-5 19" flow-formed wheels for G42 2-series, G20 3-series, G22/G26 4-series.
18x9.0 ET25
18x10.0 ET38
19x9.0 ET28
19x10.0 ET38
The VS-5 APEX wheel combines their flow-forming wheel manufacturing with the dynamic and striking split-5 spoke wheel design. Each of the spokes features "I-beam" finish machining that shaves weight without affecting strength. The profile of the spokes has been optimized for each offset and width to allow generous clearance with big brake kits and optimal strength.
The APEX VS-5 wheel achieves its combination of strength, light weight, and affordability through flow-forming technology. By flow-forming the wheel, weight is reduced in the barrel through a process sometimes referred to as "rotary forging." Rotary forging, while not the same as the traditional forging, is superior to regular casting. The rolling process occurs under extreme pressure, yielding a barrel that is stronger than a standard cast wheel, with certain material properties that are similar to a standard forged wheel. This added barrel strength allows for a reduction in overall wheel weight, while not sacrificing any of the strength you'd expect from durable flow-formed wheels.
Thanks to its lightweight barrel and robust face design, the VS-5 stands up well against the rigors of endurance racing, as well as your average street potholes.
Features:
+ I-beam spoke design - less mass while retaining strength
+ Flow-formed, roll forged barrel - superior strength and reduced weight
+ Excellent clearance for aftermarket big brake kits
+ Accepts OEM BMW center caps
+ Accepts factory lugs, wheel locks, or stud conversions
+ Tire pressure monitoring system (TPMS) compatible - not included
Priced per wheel (individually).

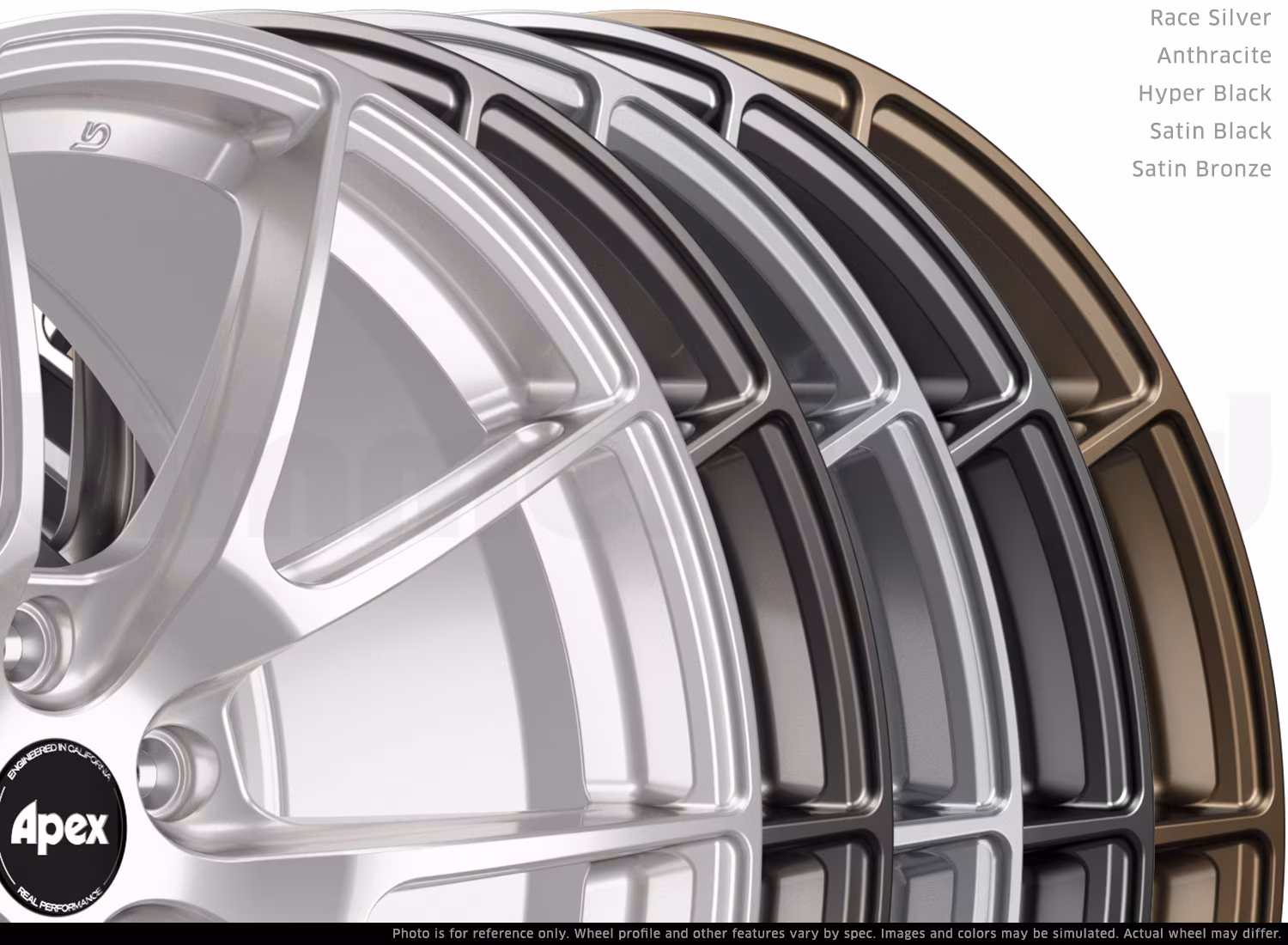

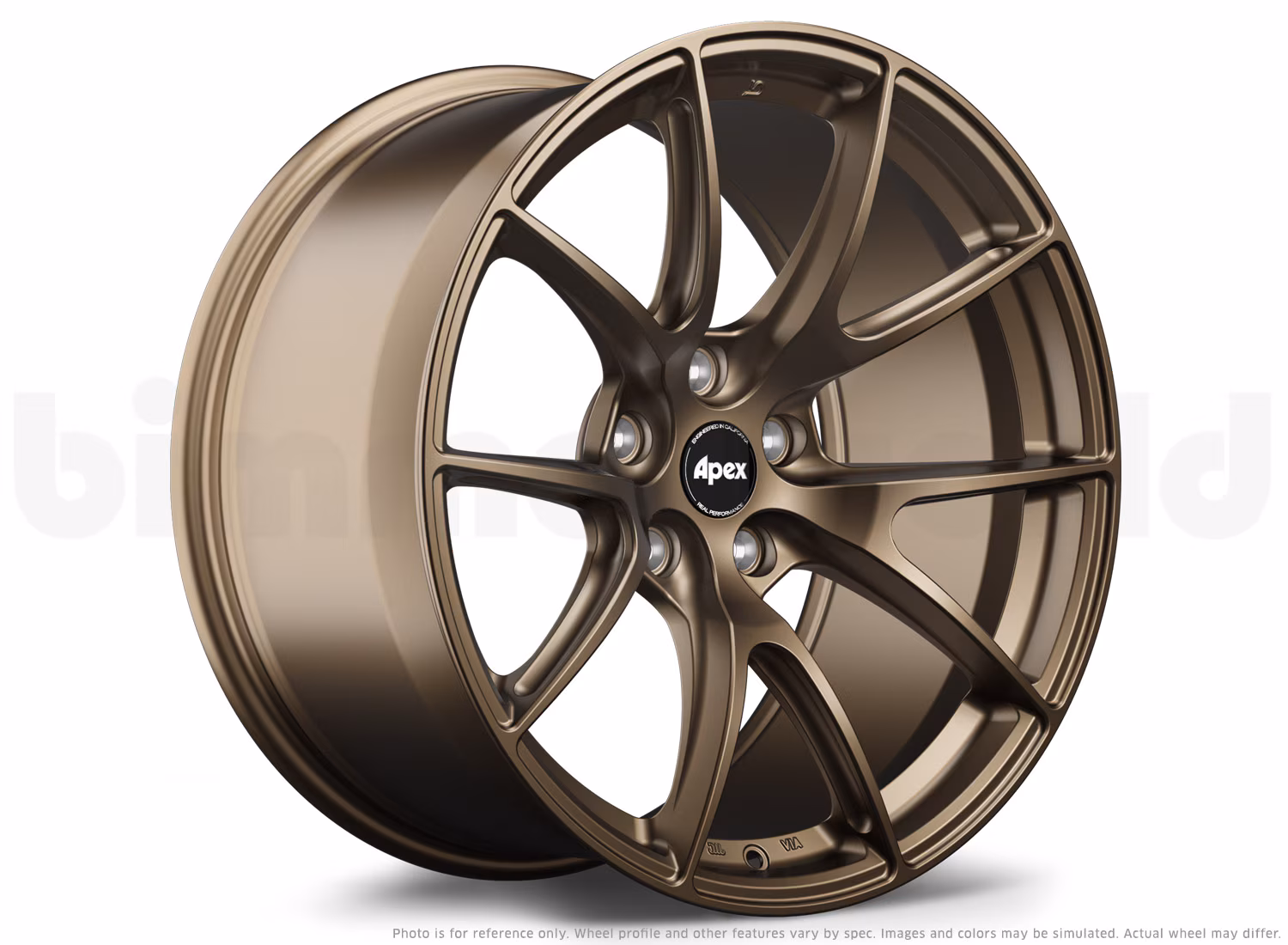

Satin Bronze color only available on select sizes.
Fitment Note: we do our best to display wheels that fit your BMW model, based on your model selection. Wheels with aggressive fitments or tight clearances may also be listed. Many variables must be considered for wheel fitment, especially when using larger wheels or different offsets. These variables include: suspension type and settings, ride height, tire size, bodywork changes, and alignment settings. In some cases, additional parts or modifications may be necessary for fitment that may not be listed in our catalog. These wheels, like many wheels, are not compatible with 10mm wheel spacers. We recommend using 12mm spacers, as 10mm hubcentric spacers have inherent design limitations that prevent them from sitting flush. Final wheel fitment and clearance is the responsibility of the customer, however, we welcome your questions on fitment, size, offset, or other wheel-related inquiries. Wheel returns are limited to quality issues only.
BMW Fitments:
2 Series
G42 / G43 (2022+) > 230i
G42 / G43 (2022+) > 230i xDrive
G42 / G43 (2022+) > M240i
G42 / G43 (2022+) > M240i xDrive
3 Series
G20 (2019+) > 330e
G20 (2019+) > 330i B46D (2019-2024)
G20 (2019+) > 330i xDrive B46D (2019-2024)
G20 (2019+) > M340i B58D (2019-2024)
G20 (2019+) > M340i xDrive B58D (2019-2024)
4 Series
G22 / G23 (2021+) > 430i B46D (2021-2024)
G22 / G23 (2021+) > 430i B48P (2025+)
G22 / G23 (2021+) > 430i xDrive B46D (2021-2024)
G22 / G23 (2021+) > 430i xDrive B48P (2025+)
G22 / G23 (2021+) > M440i B58D (2021-2024)
G22 / G23 (2021+) > M440i B58N (2025+)
G22 / G23 (2021+) > M440i xDrive B58D (2021-2024)
G22 / G23 (2021+) > M440i xDrive B58N (2025+)
4 Series
G26 (2022+) > 430i Gran Coupe B46D (2022-2024)
G26 (2022+) > 430i Gran Coupe B48P (2025+)
G26 (2022+) > 430i xDrive Gran Coupe B46D (2022-2024)
G26 (2022+) > 430i xDrive Gran Coupe B48P (2025+)
G26 (2022+) > M440i xDrive Gran Coupe B58D (2022-2024)
G26 (2022+) > M440i xDrive Gran Coupe B58N (2025+)
G26 (2022+) > i4 M50
G26 (2022+) > i4 eDrive35
G26 (2022+) > i4 eDrive40
G26 (2022+) > i4 xDrive40
