An 18x10" wheel is the perfect size for a track wheel set for E46 M3, E90 E92 M3, E82 1M, F80 M3*, and F82 M4*. Since understeer is built-in thanks to a narrower front tire, adding more rubber in the front is the simplest and most straight-forward way to reduce it. Our TE:AL (Technical Alloy) alloy wheel is constructed as a true forged piece, not "semi-forged" or "flow-forged". A fully forged wheel is stronger and lighter than cast wheels (a semi-forged wheel is still cast). The BimmerWorld racing team has been using forged wheels in multiple types of racing and we're convinced that forged wheels have greater all-around benefits than cast wheels. Because these are our own proprietary wheel, we're able to offer them at roughly half the cost of other forged race wheels in the BMW market!
Video: TA16 Square Set Fitment on E46 M3
Video courtesy of Sean54 on YouTube.

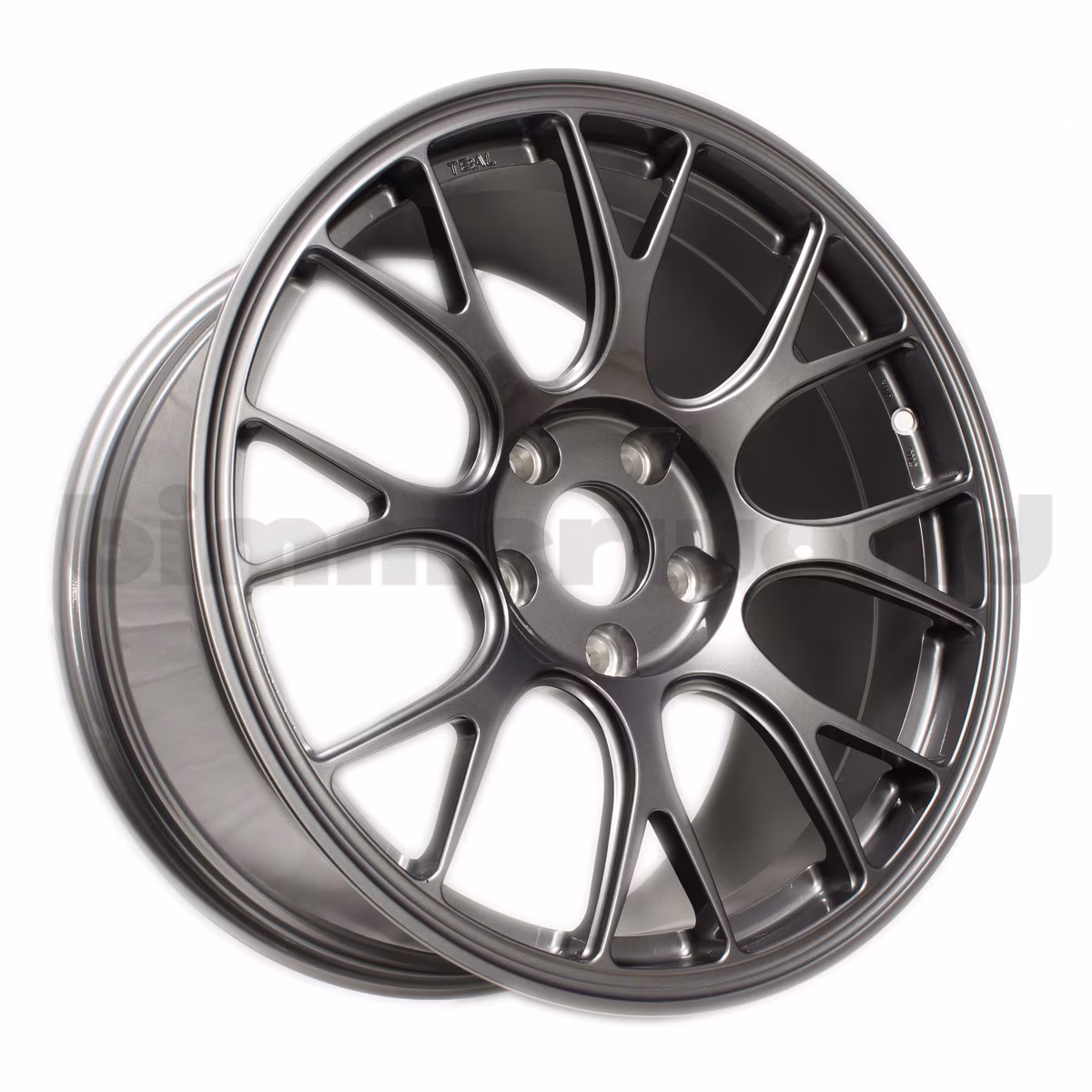

The BimmerWorld TA16 wheel is 18x10.0" with a ET25 offset and weighs less than 19lbs. The 16 spokes and barrel design leave generous room for big brakes - up to 380mm. These will clear the cast-iron brakes on the M3/M4! BimmerWorld wheels utilize the most advanced wheel design and manufacturing techniques available in the world to make the strongest, lightest wheel possible. Through careful design using CAD and FEA we were able to trim material to make a lighter wheel without sacrificing strength. We also incorporated several unique features normally found on high-end race wheels - knurled bead seat to minimize the wheel spinning inside the tire and a reverse-mount feature that makes it easier for race tires to be mounted from the backside of the wheel.
Key Features:
Ridged cross-spoke design and internal outer-barrel strengthening rib for ultimate strength, rigidity/camber stiffness, and durability
Massive Caliper Clearance - 18" versions fit up to 380mm brakes
Pocketed center pad to minimize weight without compromising strength
Machined from T6061 aluminum forgings, produced with an industry-leading 10,000 ton press for optimized grain flow
Shot peened and heat treated for exacting strength and increased durability
Gloss finish is easy to clean

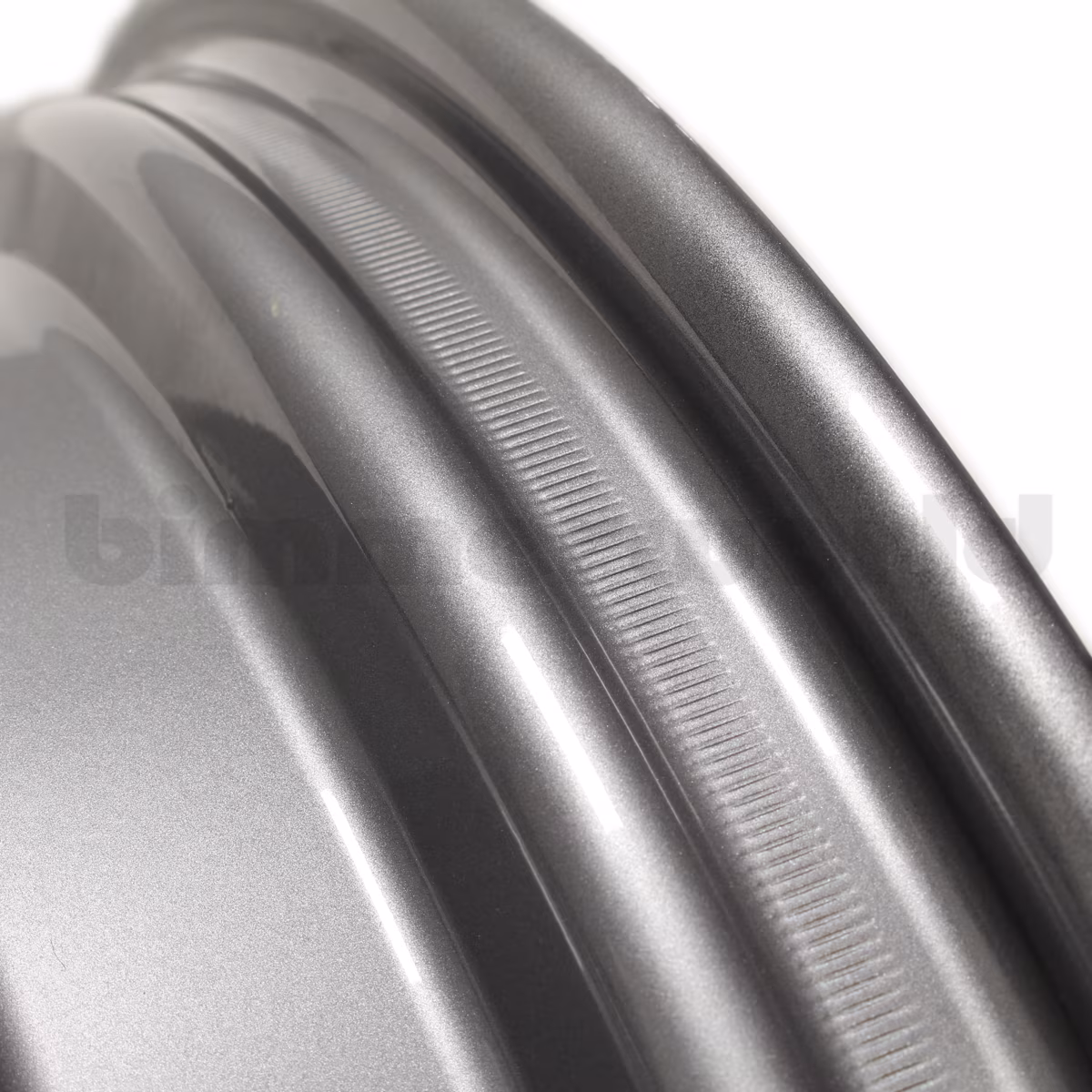

Knurled bead seat to minimize tire slippage with higher-powered cars and under heavy braking
BimmerWorld TA16 wheels have gone through rigorous testing and certification by JWL/VIA and proven at all levels of competitive racing, including years of wheel-to-wheel (literally) IMSA pro racing.
General Fitment Note: these are sold as a race-fitment only and rubbing with bodywork or on suspension may occur depending on tire choice and suspension settings. We cannot verify fitment with every combination of wheel-tire-suspension. Verification of wheel fitment is the responsibility of the customer. Please contact us directly if you have any questions or concerns. Returns are limited to quality issues only.
Note: We have sized these wheels so they should not require spacers for most applications. However, when spacers are necessary pay close attention to the fitment of the spacer to the inside of the wheel. The spacer must sit completely flush to the back of the wheel with zero gap. Our wheels are not compatible with 10mm spacers. For 12mm spacers check fitment closely as the chamfer on the spacer may not fit with the wheel. Use the paper test to confirm.
* Fitment for 2015+ F8X M3/M4: this set uses 18x10" ET25 wheels which is a great fit on the front of F8X but aggressive on the rear. The rear tire is more likely to contact the fender, even with additional camber, alignment, and ride height adjustments. Although this is a common size and offset in the industry we prefer the 18x10" ET33 with a spacer in the front. With the +33 offset we get a better fit in the rear and no issues in the front with the spacers. Please contact us directly if you have any questions or concerns.
BMW Fitments:
1 Series E82 (11-13) > M Coupe 2 Series F22 (14-19) > M235i Racing F22 (14-19) > M240i Racing 3 Series E46 (01-06) > M3 3 Series E90 / E92 / E93 (08-13) > M3 3 Series F80 (15-19) > M3 4 Series F82 / F83 (15-20) > M4
/5 stars ( reviews)
BimmerWorld Recommended Related Items
Recently Viewed Products

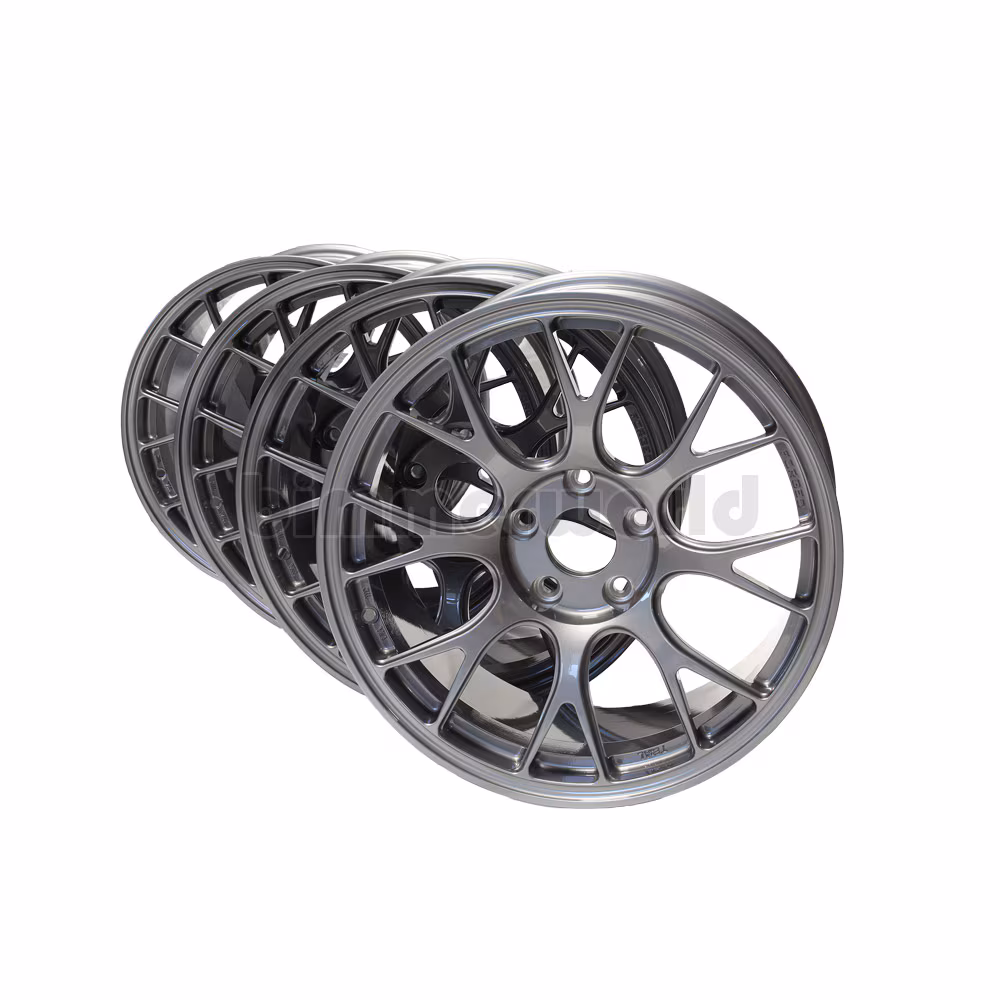

$2,319.96BimmerWorld TA16 18x10 Forged Wheel Set (Gunmetal) - E46 M3, E9X M3, F8X M3/M418x10" Gloss Gunmetal forged square set for track or race
