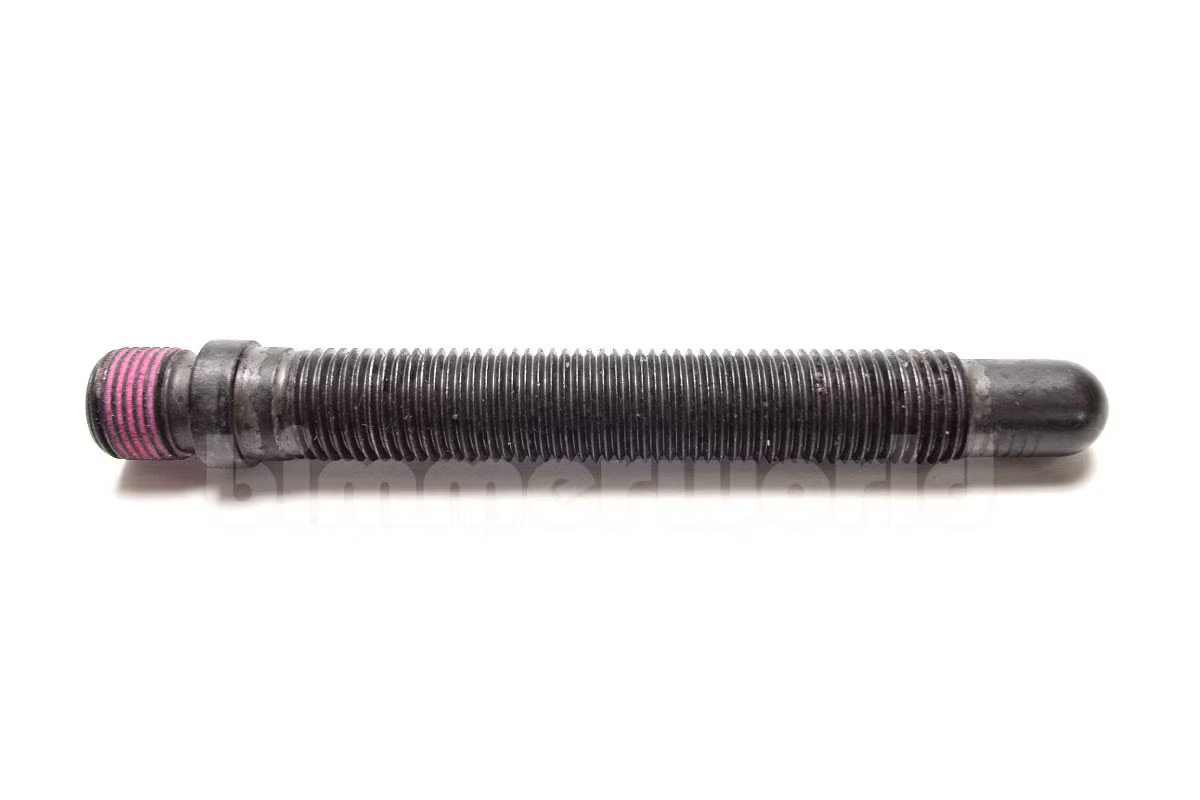

M14 Premium 121mm BimmerWorld Race Bullet Nose Wheel Stud (F8X GTMore)

Extra long wheel studs for use with our GTMore wheel and spacer packages. Intended fitment is ONLY cars setup for our GTMore wheel, spacer, and suspension package. Click here for more info and also see Related Items below.


This wheel stud is made exclusively for BimmerWorld by one of America's leading manufacturers of race fasteners to our exacting specifications. Wheel studs are not a one time purchase and do fatigue with torque cycles and use, however we have noticed shorter lifespans than expected in our race program with other studs. Further analysis showed stress risers created by screwing studs into the steel hub flange. We have addressed this issue in several ways:

• Large shoulder provides extra strength and is properly sized for BMW brake rotor hats
• Undercut relief to remove thread run-out section of stud that the steel hub would otherwise cut into
• All corners radiused to eliminate stress risers

M14x1.25 for BMW F-chassis. Heat treated 190,000psi Chromoly-steel, shot-peened, and double magnaflux inspected. This is a true professional quality stud. bullet nose feature allows easy starting for lug nuts - in hot pit situations they can be air-gunned on. Uses M14x1.5 wheel nut.

Available in 73mm, 82mm, 92mm, or 121mm total length includes bullet nose and threads into hub using a "Dri-Loc" locking adhesive for an extremely secure fit.

• Hub thread length - 14mm
• Nut thread length (to hub face) - 114.5mm
• Hub face to stud nose - 132.5mm

Even though the stud threads into the 14x1.25 hub (like the factory bolts), the wheel-side of the stud is 14x1.5 thread size. The coarser thread is faster and 14x1.5 nuts are more easily available.

Product Note: These wheel studs are intended for track/race applications where frequent wheel changes occur. These studs do not have a cosmetic finish applied. If used on street applications, especially in the winter, light surface oxidation/discoloration may occur. If your intent is for street use we recommend using our street line of studs.
