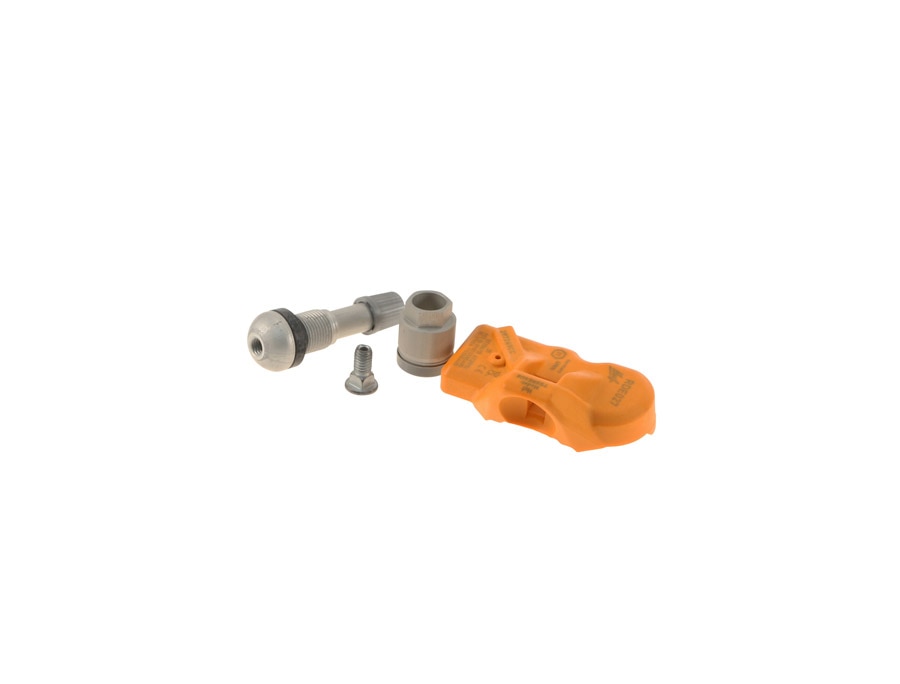

OEM TPMS tire pressure sensor with valve stem for F22, F30, F32, F80, F82, F87, X1, X5, X6 models from 3/2014 production. The iDrive or On Board Computer relies on these sensors in each wheel to determine if a tire is losing air. With a failing sensor, or no sensor at all, iDrive will display low tire pressure warnings that may be hard to clear.
If you're mounting up a set of wheels and tires for the above BMW chassis vehicles, you'll want a set of 4 of these sensors to make sure your BMW senses the tire pressure and temperature at each of the 4 corners of the car. If you don't, your car will trigger TPMS faults and indicators on your dash and iDrive systems. We recommend buying a set for each of your sets of wheels so that you don't have to pull them off your old wheels each time you change your wheels. If you're having your wheels and tires mounted elsewhere, you're tire installer will thank you for having the right parts! Includes valve stem and cap.
TPMS sensors are shipped in a "sleep mode" to save battery life. After installing and inflating tire to proper pressure, wait a minimum of four minutes to sync the new sensor to the vehicle. The low tire pressure warning may still display until the TPMS system is reset through iDrive or the BC button on the turn signal stalk.
This is an OEM TPMS from one of the original suppliers to BMW for this part, as well as other tire pressure sensors and monitors. As the OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.
Our sources supply us with either HUF (orange) or a VDO (black) sensor. Both are OEM and are compatible with your car.
BMW fitment data varies per model on this part. See specific fitment information below.
F22 F23 228i 230i M235i M240i 3/2014+
F87 M2 2016+
F30 Sedan 320i 320iX 328i 328iX 330i 330iX 335i 335iX 340i 340iX 3/2014+
F31 Wagon 328dX 328i 328iX 330iX 3/2014+
F34 GT 328i 328iX 335iX 330iX 340iX 3/2014+
F80 M3 2015+
F32 Coupe 428i 428iX 430i 430iX 435i 435iX 440i 440iX 3/2014+
F33 Convertible 428i 428iX 430i 430iX 435i 435iX 440i 440iX 3/2014+
F36 GranCoupe 428i 428iX 430i 430iX 435i 435iX 440i 440iX 3/2014+
F82 F83 M4 2015+ (but not GTS)
F48 X1 28i 28iX 2015+
F15 X5 35dX 35i 35iX 40e 50iX 2014+
F85 X5M 2014+
F16 X6 35i 35iX 50iX 2014+
F86 X6M 2014+
Replaces any of the the following part numbers:
36106856209 (36-10-6-856-209)
36106881890 (36-10-6-881-890)
36106855539 (36-10-6-855-539)
36106881891 (36-10-6-881-891)
BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i
F22 / F23 (2014-2021) > 228i xDrive
F22 / F23 (2014-2021) > 230i
F22 / F23 (2014-2021) > 230i xDrive
F22 / F23 (2014-2021) > M235i
F22 / F23 (2014-2021) > M235i xDrive
F22 / F23 (2014-2021) > M240i
F22 / F23 (2014-2021) > M240i xDrive
2 Series
F87 (2016-2021) > M2 Competition S55 (2019+)
F87 (2016-2021) > M2 N55 (2016-2018)
3 Series
F30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i
F30 / F31 / F34 (2012-2019) > 340i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
3 Series
F80 (2015-2018) > M3 (2015-2018)
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
4 Series
F82 / F83 (2015-2020) > M4 (2015-2020)
F82 / F83 (2015-2020) > M4 GTS
X1 Series
F48 X1 (2016-2023) > X1 28i
F48 X1 (2016-2023) > X1 28i xDrive
X2 Series
F39 X2 (2018-2023) > X2 M35i (18-23)
F39 X2 (2018-2023) > X2 sDrive28i FWD (18-23)
F39 X2 (2018-2023) > X2 xDrive28i (18-23)
X5 Series
F15 X5 (2014-2018) > X5 sDrive35i (14-18)
F15 X5 (2014-2018) > X5 xDrive35d (14-18)
F15 X5 (2014-2018) > X5 xDrive35i (14-18)
F15 X5 (2014-2018) > X5 xDrive50i (14-18)
X5 Series
F85 X5 M (2015-2018) > X5 M (15-18)
X6 Series
F16 X6 (2015-2019) > X6 sDrive35i N55 (15-19)
F16 X6 (2015-2019) > X6 xDrive35i N55 (15-19)
F16 X6 (2015-2019) > X6 xDrive50i (15-19)
X6 Series
F86 X6 M (2015-2019) > X6 M (15-19)
i Series
I01 i3 (2014-2022) > i3 60Ah
I01 i3 (2014-2022) > i3 60Ah Rex
I01 i3 (2014-2022) > i3 94Ah
I01 i3 (2014-2022) > i3 94Ah Rex
i Series
I12 i8 (2015-2021) > i8 Coupe
