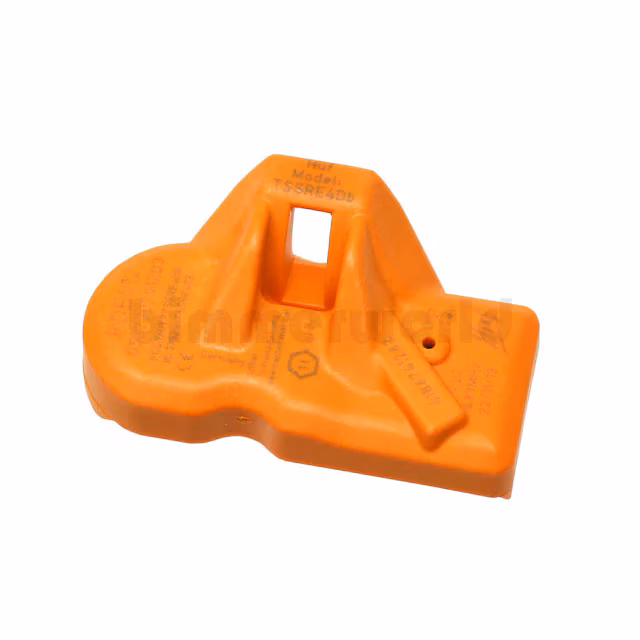

TPMS Sensor (433MHz), Huf - E82, E9X, F10, F13, F01, X3, X5, Z4

OEM TPMS sensor for many 2010-2014 models, replacement for BMW part #36106856227

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$67.99

OEM HUF TPMS tire pressure sensor with valve stem for some E82, E90/E91/E92/E93, F10, F13, X3, X5, X6, and Z4 models. Generally, the applications cover from 2010 to 3/2014 but we list specific models and years below. The iDrive or On Board Computer relies on these sensors in each wheel to determine if a tire is losing air. With a failing sensor, or no sensor at all, iDrive will display low tire pressure warnings that may be hard to clear.

If you're mounting up a set of wheels and tires for the above BMW chassis vehicles, you'll want a set of 4 of these sensors to make sure your BMW senses the tire pressure and temperature at each of the 4 corners of the car. If you don't, your car will trigger TPMS faults and indicators on your dash and iDrive systems. We recommend buying a set for each of your sets of wheels so that you don't have to pull them off your old wheels each time you change your wheels. If you're having your wheels and tires mounted elsewhere, you're tire installer will thank you for having the right parts! Includes valve stem and cap.

TPMS sensors are shipped in a "sleep mode" to save battery life. After installing and inflating tire to proper pressure, wait a minimum of four minutes to sync the new sensor to the vehicle. The low tire pressure warning may still display until the TPMS system is reset through iDrive or the BC button on the turn signal stalk.

This is an OEM TPMS manufactured by HUF - the original supplier to BMW for this part, as well as other tire pressure sensors and monitors. As the OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.

BMW fitment data varies per model on this part. See specific fitment information below.

BMW Fitments:

1 Series
E82 / E88 (11-13) > 128i
E82 / E88 (11-13) > 135i
E82 / E88 (11-13) > 135is
E82 (11-12) > 1M Coupe
3 Series
E90 / E91 / E92 / E93 (10-13) > 328i
E90 / E91 / E92 / E93 (10-13) > 328xi
E90 / E92 / E93 (10-11) > 335d
E90 / E92 / E93 (10-13) > 335i
E92 / E93 (11-13) > 335is
E90 / E92 / E93 (10-13) > 335xi
E90 / E92 / E93 (10-13) > M3
5 Series
F10 (11-3/2014) > 528i
F10 (11-3/2014) > 528i xDrive
F10 (11-3/2014) > 535d
F10 (11-3/2014) > 535d xDrive
F10 (11-3/2014) > 535i
F10 (11-3/2014) > 535i xDrive
F10 (11-3/2014) > 550i
F10 (11-3/2014) > 550i xDrive
F10 (12-3/2014) > M5
6 Series
F06 / F12 / F13 (12-3/2014) > 640i
F06 / F12 / F13 (12-3/2014) > 640i xDrive
F06 / F12 / F13 (12-3/2014) > 650i
F06 / F12 / F13 (12-3/2014) > 650i xDrive
F06 / F12 / F13 (12-3/2014) > M6
7 Series
F01 / F02 (11-3/2014) > 740i
F01 / F02 (11-3/2014) > 740Li
F01 / F02 (11-3/2014) > 750i
F01 / F02 (11-3/2014) > 750Li
F01 / F02 (11-3/2014) > 760Li
X1 Series
E84 (13-3/2014) > X1 28i
E84 (13-3/2014) > X1 28i xDrive
E84 (13-3/2014) > X1 35i xDrive
X3 Series
F25 (11-3/2014) > X3 sDrive28i
F25 (11-3/2014) > X3 xDrive28d
F25 (11-3/2014) > X3 xDrive28i
F25 (11-3/2014) > X3 xDrive35i
X5 Series
E70 (11-13) > X5 35d
E70 (11-13) > X5 35i
E70 (11-13) > X5 4.8i
E70 (11-13) > X5 50i
E70 (11-13) > X5 M
X6 Series
E71 (11-13) > X6 35i
E71 (11-13) > X6 50i
E71 (11-13) > X6 M
Z4 Series
E89 (11-3/2014) > Z4 sDrive28i
E89 (11-3/2014) > Z4 sDrive35i
E89 (11-3/2014) > Z4 sDrive35is
