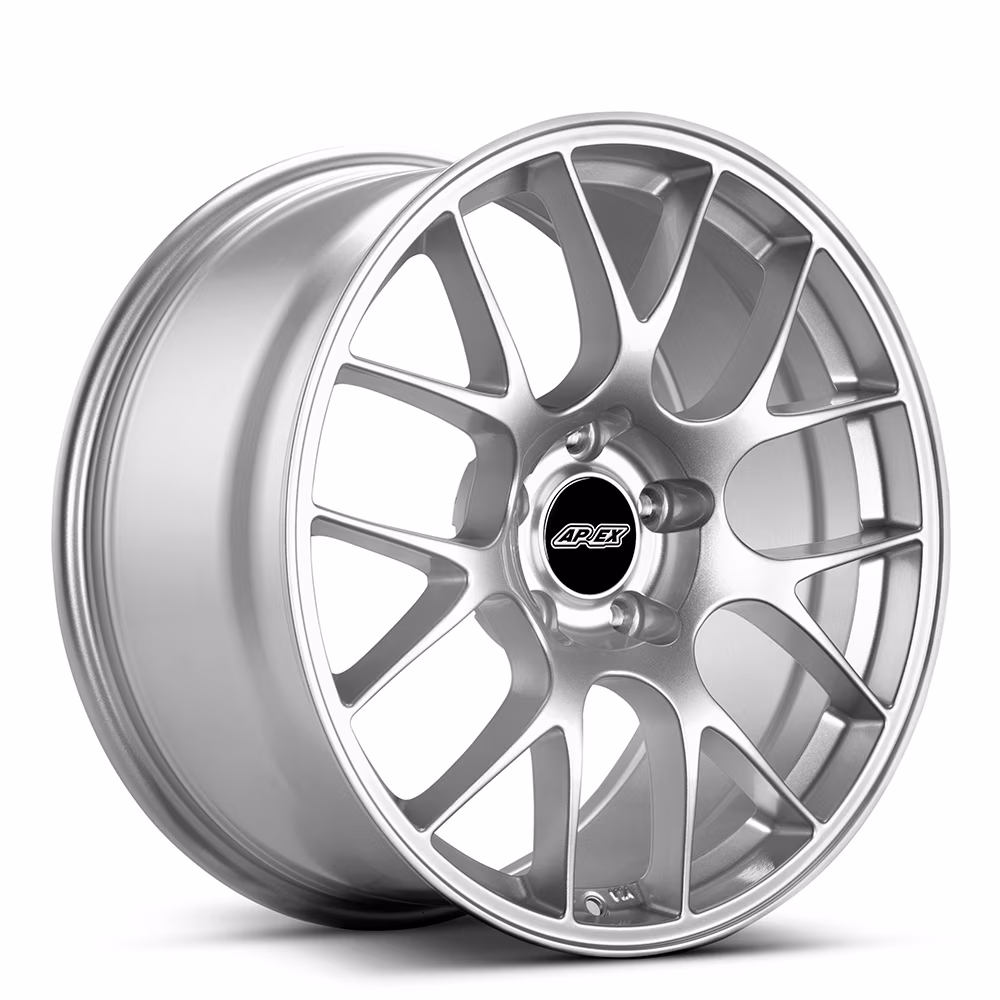

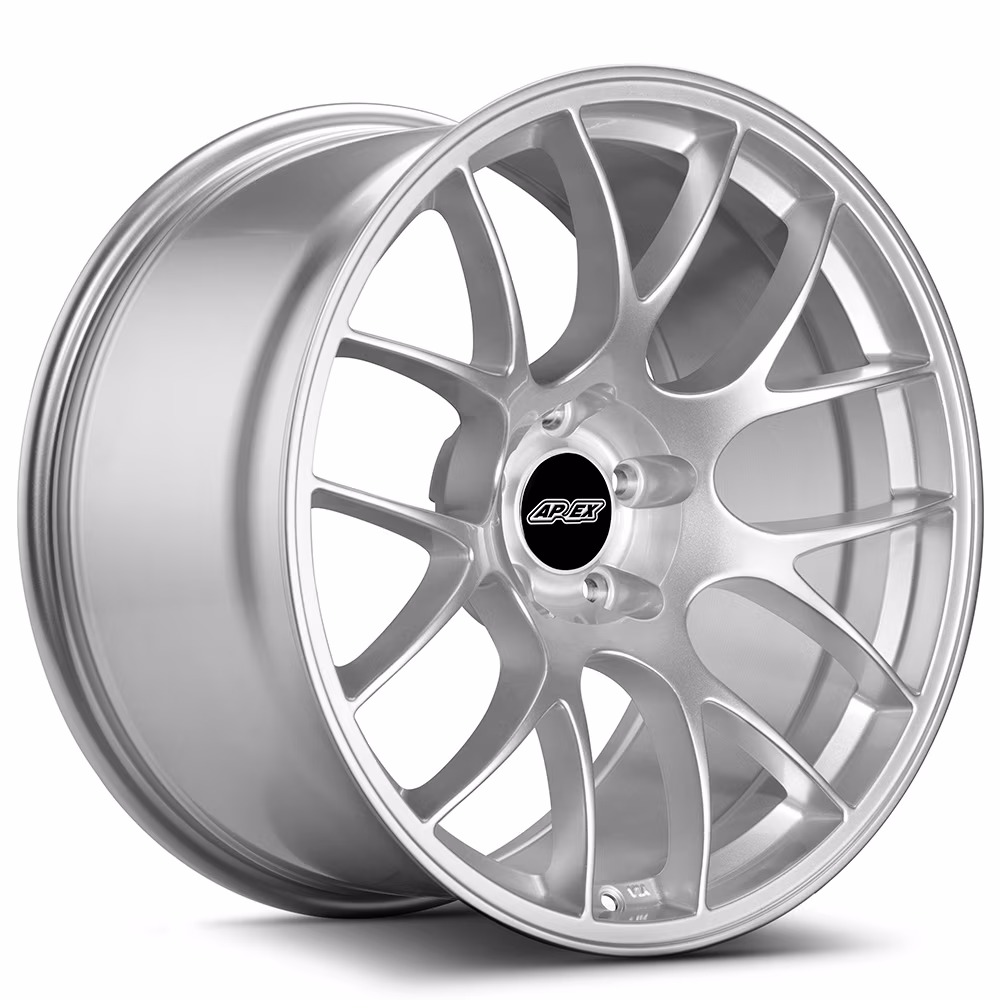

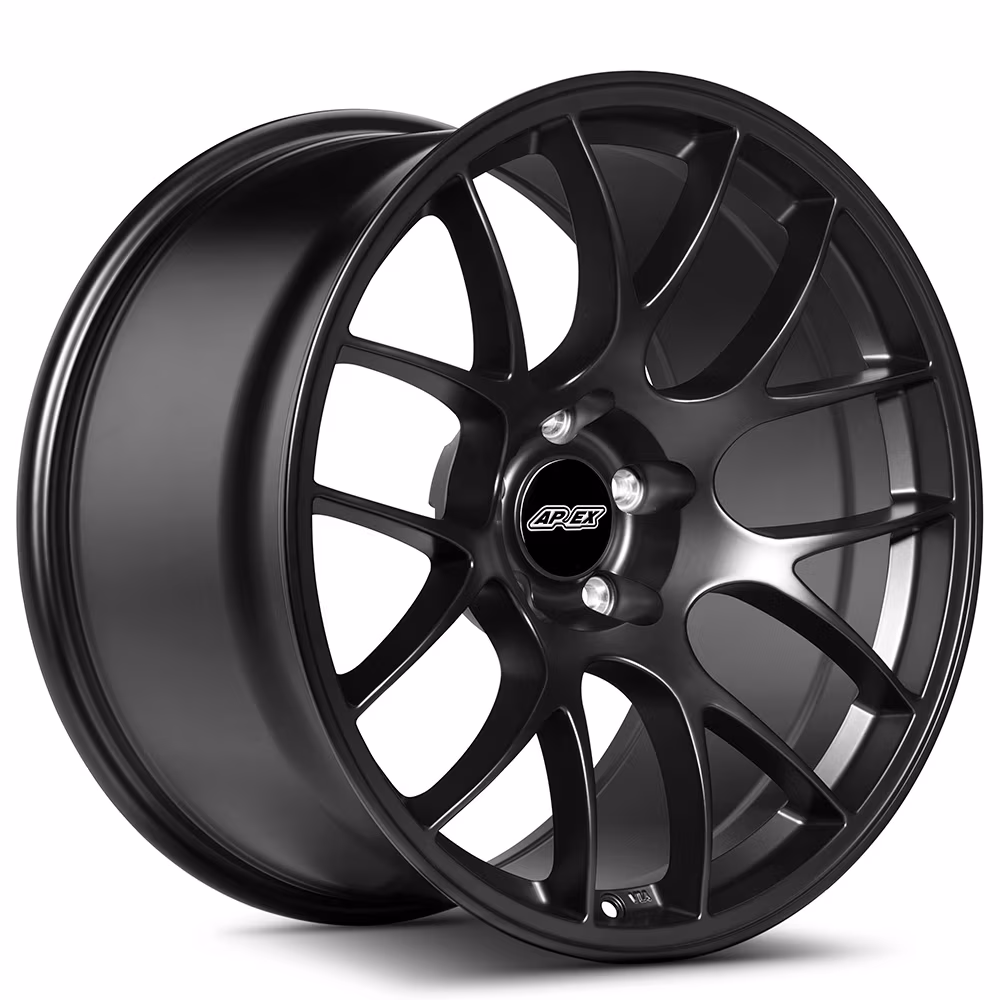

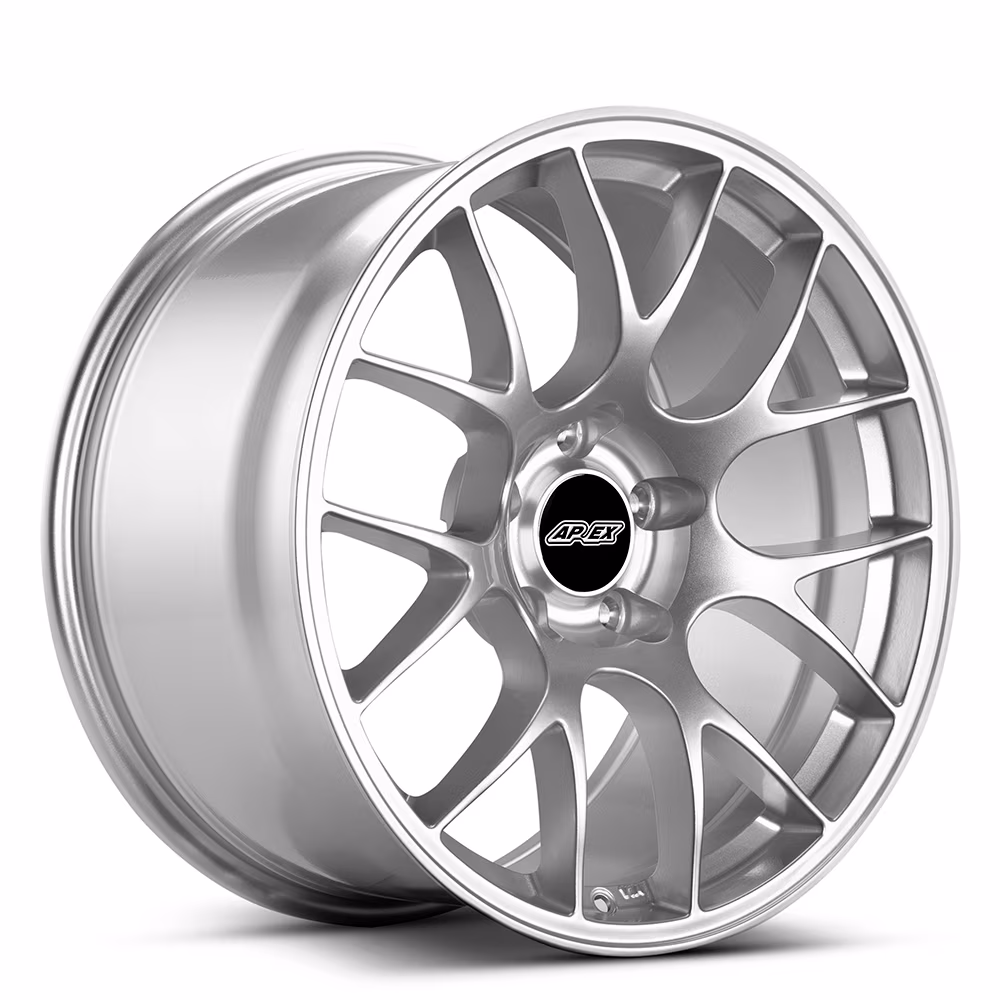

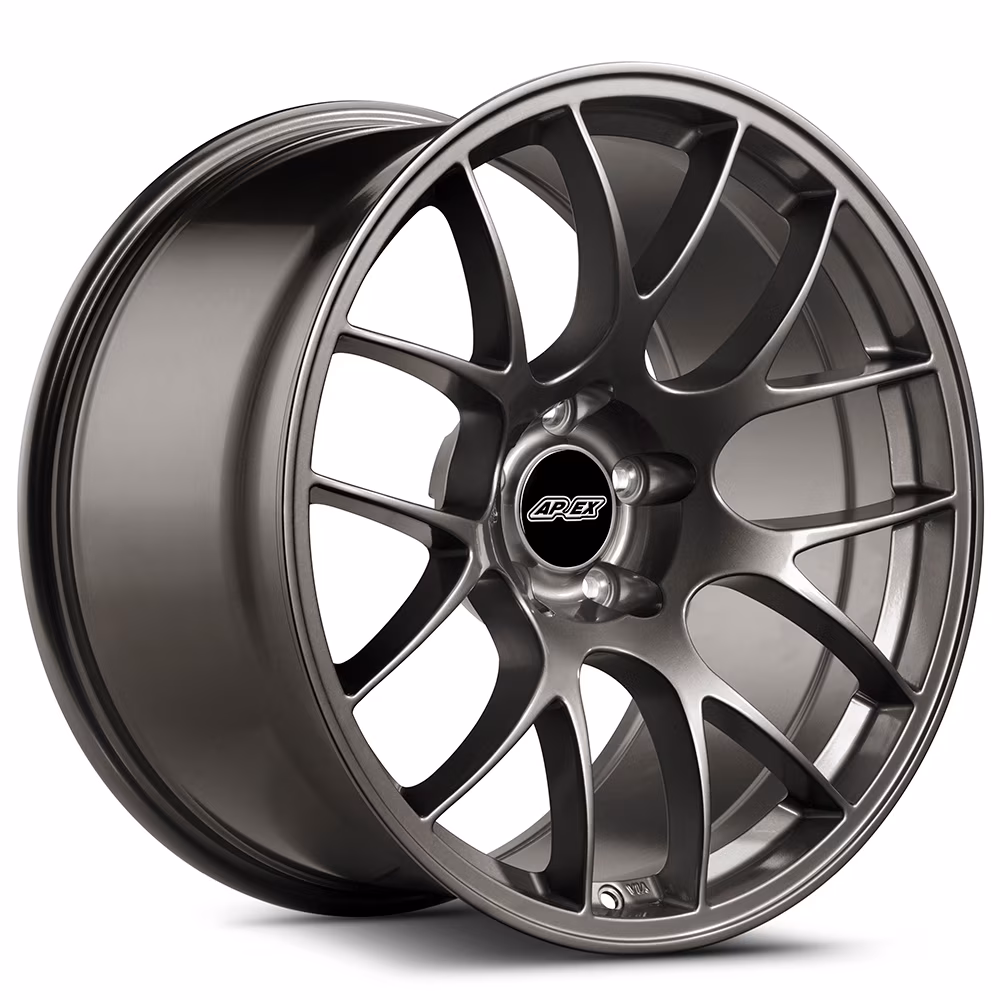

APEX EC-7 Wheel

Strong, lightweight, flow-formed, classic design

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

  •

Price:
$308.99 – $398.99

The BimmerWorld View - The EC-7 is a great looking, strong, and lightweight wheel that offers good brake clearance for aftermarket brake kits.

The APEX EC-7 Wheel addresses the concerns of more and more racers and track day enthusiasts: long-term durability with fit and extreme performance. There's no denying that cars are getting faster and heavier, so the EC-7 was designed and engineered to handle extreme abuse on track and street. This wheel offers a wide range of direct fitments while retaining its svelte characteristics. These features make the EC-7 the perfect compliment to the APEX ARC-8 in our wheel line offerings.

An optimized car setup begins with the perfect wheel fitment. Without utilizing perfect wheel offsets and maximum tire widths, you're compromising the performance potential of your BMW. Because of this fact, the EC-7 offers three unique face profiles ranging from shallow to deep concavity, and this results in 13 unique 18" sizes. This wide range of fitments allows for vehicle-specific caliper clearance, offsets, and tire widths, giving you the widest range of optimal setup possibilities.

The EC-7 adds seven new BMW sizes not available in the ARC-8 design, and the three face profiles offer maximum concavity and reduced weight. This avoids the common adaptation of a single face profile for unintended fitments, and it reduces the need for spacers.

The EC-7's spoke profile has been designed with a curve to provide additional caliper clearance, often clearing a BBK on applications where the ARC-8 could not - spacer-free! Note: In race applications, we still often choose to use spacers.

Another significant improvement from the EC-7 design is the increased barrel clearance that allows for the 18" version of this wheel to properly clear the Performance Friction 378mm Brake Kit. As with the rest of the APEX wheel line, EC-7 achieves its combination of strength and light weight through flow-forming technology. By flow-forming the wheel, weight is reduced in the barrel through a process sometimes referred to as "roll forging." Roll forging, while not the same as the traditional forging, is superior to regular casting. The rolling process occurs under extreme pressure, yielding a barrel that is stronger than a standard cast wheel, with certain material properties that are similar to a standard forged wheel. This added barrel strength allows for a reduction in overall wheel weight, while not sacrificing any of the strength you'd expect from durable flow-formed wheels.

Thanks to its lightweight barrel and robust face design, the EC-7 stands up well against the rigors of endurance racing, as well as your average street potholes. EC7 18" wheels have a 1,550lb load rating; APEX 19" wheels have a 1,650lb load rating.

All wheels come with APEX center caps.

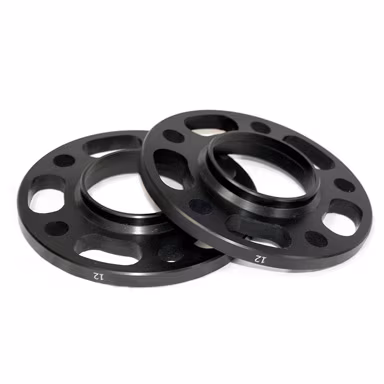

These wheels, like many wheels, are not compatible with 10mm wheel spacers, which have inherent design limitations that prevent them from sitting flush. If 10mm spacers are called for we recommend using 12mm instead. The difference is minuscule.

Features
  • Split-spoke design - superior strength and reduced weight
  • Flow-Formed / Roll-forged barrel - superior strength & reduced weight
  • Excellent clearance for aftermarket big brake kits
  • Carbon fiber pattern hub cap - clean and simple
  • Accepts OEM BMW center caps*
  • Accepts factory lugs, wheel locks, or stud conversions
  • Tire pressure monitoring system (TPMS) compatible (not included)

Priced per wheel (individually).

NOTE: Wheels do not include BMW center caps.

Need help deciding on a size or offset for your BMW? No problem! Give us a call at 877.639.9648 or email us at [email protected] for assistance. We're your BMW wheel experts and are happy to help.

Please verify your specific wheel fitment before ordering. To avoid costly return shipping, or risk non-fitment, we strongly urge you to contact us first.
BMW Fitments:--

3 Series
E36 (92-99) > 318i M42
E36 (92-99) > 318i M44
E36 (92-99) > 318ic M42
E36 (92-99) > 318ic M44
E36 (92-99) > 318is M42
E36 (92-99) > 318is M44
E36 (92-99) > 323ic
E36 (92-99) > 323is
E36 (92-99) > 325i
E36 (92-99) > 325ic
E36 (92-99) > 325is
E36 (92-99) > 328i
E36 (92-99) > 328ic
E36 (92-99) > 328is
E36 (92-99) > M3 (1995)
E36 (92-99) > M3 (96-99)
3 Series
E46 (99-05) > 320i
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 325xi
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
E46 (99-05) > M3
3 Series
E90 / E91 / E92 / E93 (06-13) > 323i
E90 / E91 / E92 / E93 (06-13) > 325i
E90 / E91 / E92 / E93 (06-13) > 325xi
E90 / E91 / E92 / E93 (06-13) > 328i
E90 / E91 / E92 / E93 (06-13) > 328xi
E90 / E91 / E92 / E93 (06-13) > 330i
E90 / E91 / E92 / E93 (06-13) > 330xi
E90 / E91 / E92 / E93 (06-13) > 335d
E90 / E91 / E92 / E93 (06-13) > 335i
E90 / E91 / E92 / E93 (06-13) > 335is
E90 / E91 / E92 / E93 (06-13) > 335xi
E90 / E91 / E92 / E93 (06-13) > M3
3 Series
F30 / F31 / F34 (2012+) > 320i
F30 / F31 / F34 (2012+) > 320i xDrive
F30 / F31 / F34 (2012+) > 328d
F30 / F31 / F34 (2012+) > 328d xDrive
F30 / F31 / F34 (2012+) > 328i
F30 / F31 / F34 (2012+) > 328i xDrive
F30 / F31 / F34 (2012+) > 335i
F30 / F31 / F34 (2012+) > 335i xDrive
3 Series
F80 (2015+) > M3 (2015+)
4 Series
F82 / F83 (2015+) > M4 (2015+)
5 Series
E60 / E61 (04-10) > 525i
E60 / E61 (04-10) > 525xi
E60 / E61 (04-10) > 528i
E60 / E61 (04-10) > 528xi
E60 / E61 (04-10) > 530i
E60 / E61 (04-10) > 530xi
E60 / E61 (04-10) > 535i
E60 / E61 (04-10) > 535xi
E60 / E61 (04-10) > 545i
E60 / E61 (04-10) > 550i
E60 / E61 (04-10) > M5
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 1.9
E36/7 / E36/8 Z3 (96-02) > Z3 2.3
E36/7 / E36/8 Z3 (96-02) > Z3 2.5
E36/7 / E36/8 Z3 (96-02) > Z3 2.8
E36/7 / E36/8 Z3 (96-02) > Z3 3.0
E36/7 / E36/8 Z3 (96-02) > Z3 M - S52
E36/7 / E36/8 Z3 (96-02) > Z3 M - S54
Z Series
E85 / E86 Z4 (03-08) > Z4 2.5i M54
E85 / E86 Z4 (03-08) > Z4 3.0i M54
E85 / E86 Z4 (03-08) > Z4 3.0i N52
E85 / E86 Z4 (03-08) > Z4 M
