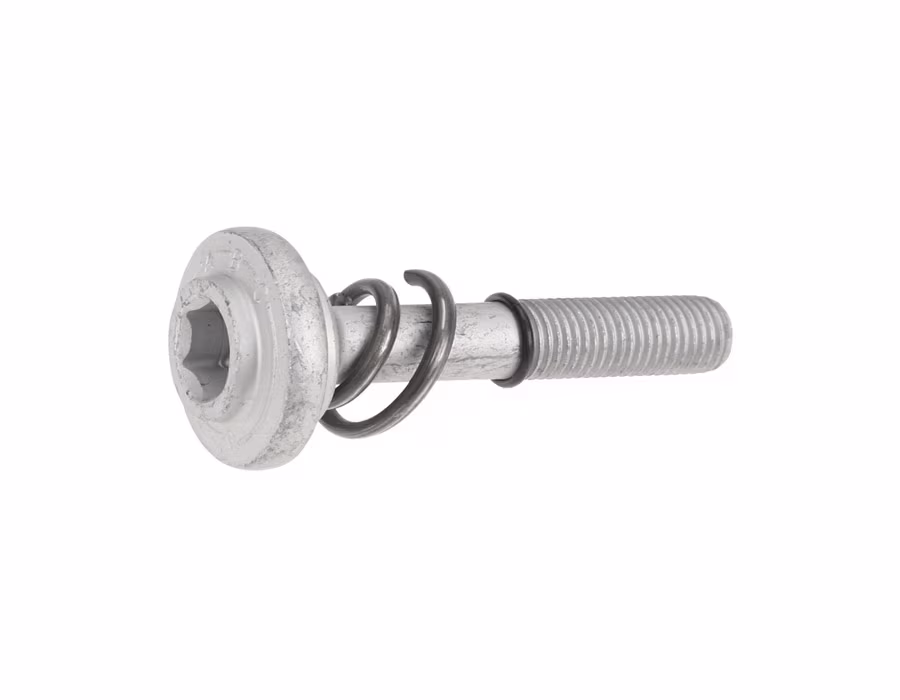

This part is listed by BMW as BMW part number 31206795249 (31 20 6 795 249) and is described as a axle collar screw with spring. This axle bolt is used to secure the drive axle to the hub on many BMW models. BMW requires this front hub bolt be replaced any time it is loosened.
When installing on xDrive models ensure the spur gear on the back of the bearing engages the output shaft cleanly. Align gear by rotating the wheel and tighten outer collar screw by hand. Once fully aligned and seated torque collar screw to 210Nm (154ft-lbs) + 90°.
This is a Genuine BMW axle bolt with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.
For full BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.
BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i xDrive
F22 / F23 (2014-2021) > 230i xDrive
F22 / F23 (2014-2021) > M235i xDrive
F22 / F23 (2014-2021) > M240i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i xDrive
5 Series
F10 / F11 (11-16) > 528i xDrive N20 (2012-2016)
F10 / F11 (11-16) > 535d
F10 / F11 (11-16) > 535d xDrive
F10 / F11 (11-16) > 535i xDrive
F10 / F11 (11-16) > 550i xDrive
F10 / F11 (11-16) > M5 (2013-2016)
6 Series
F12 / F13 (12-18) > 650i xDrive
F12 / F13 (12-18) > M6
7 Series
F01 / F02 (2009-2015) > 750Li xDrive
X1 Series
E84 X1 (2013-2015) > X1 28i xDrive
E84 X1 (2013-2015) > X1 35i xDrive
X1 Series
F48 X1 (2016-2023) > X1 28i xDrive
X2 Series
F39 X2 (2018-2023) > X2 M35i (18-23)
F39 X2 (2018-2023) > X2 xDrive28i (18-23)
X3 Series
F25 X3 (2011-2017) > X3 xDrive28d Diesel
F25 X3 (2011-2017) > X3 xDrive28i
F25 X3 (2011-2017) > X3 xDrive35i
X4 Series
F26 X4 (2015-2018) > X4 28i xDrive
F26 X4 (2015-2018) > X4 35i xDrive
F26 X4 (2015-2018) > X4 M40i xDrive
X5 Series
G05 X5 (2019+) > X5 xDrive40i B58C (2019-2023)
G05 X5 (2019+) > X5 xDrive50i (2019-2023)
X6 Series
G06 X6 (2020+) > X6 sDrive 40i B58C (2019-2023)
G06 X6 (2020+) > X6 xDrive 40i B58C (2019-2023)
X7 Series
G07 X7 (2019+) > X7 M50i
G07 X7 (2019+) > X7 xDrive40i B58C (2019-2022)
G07 X7 (2019+) > X7 xDrive50i
