Radiator, CSF High Performance - E60 M5, E63 M6

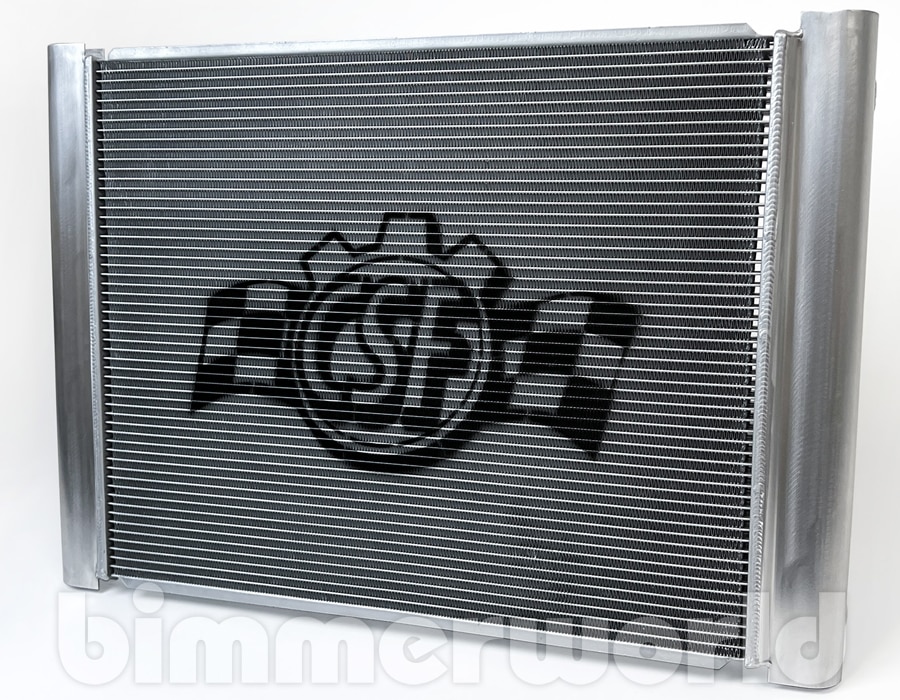

The CSF all-aluminum radiator for E60 M5 and E63/E64 M6 is a direct replacement for the factory unit, and it's design offers an increase of approximately 15% in heat transfer. The 2-row 42mm core has 6 more rows of tubing then the original-equipment radiator.

Product Details:
-2-Row, 42mm Ultra-High-Performance Core
-Cooling Tubes with CSF’s Exclusive B-Tube Technology
-6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

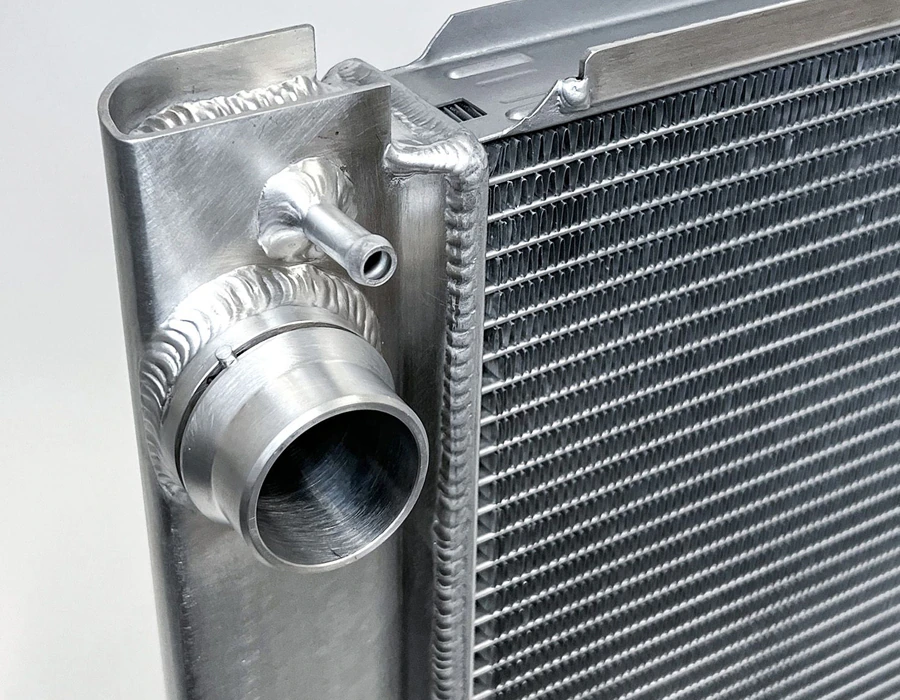

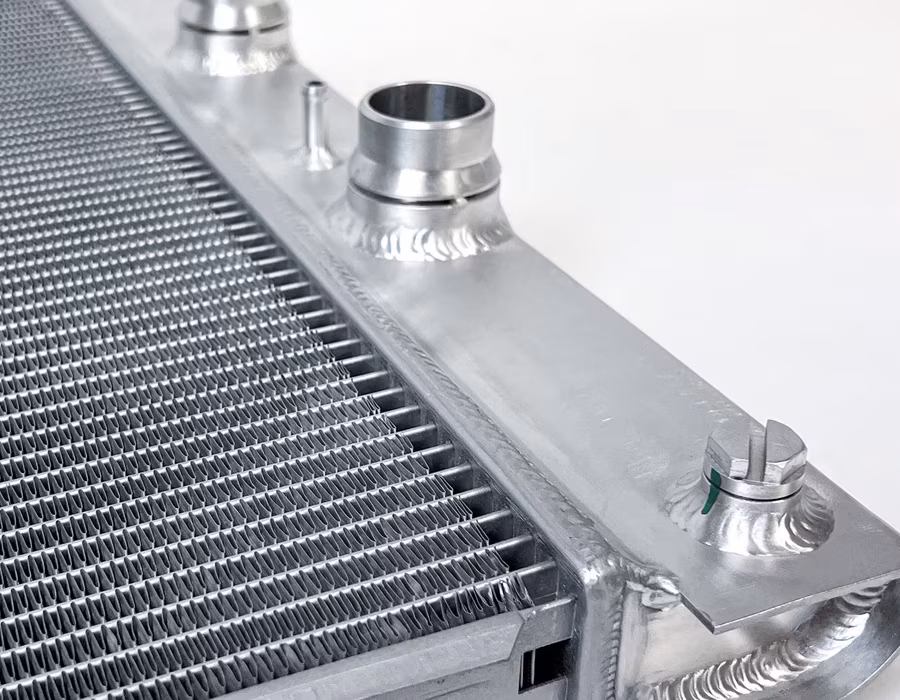

-CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet

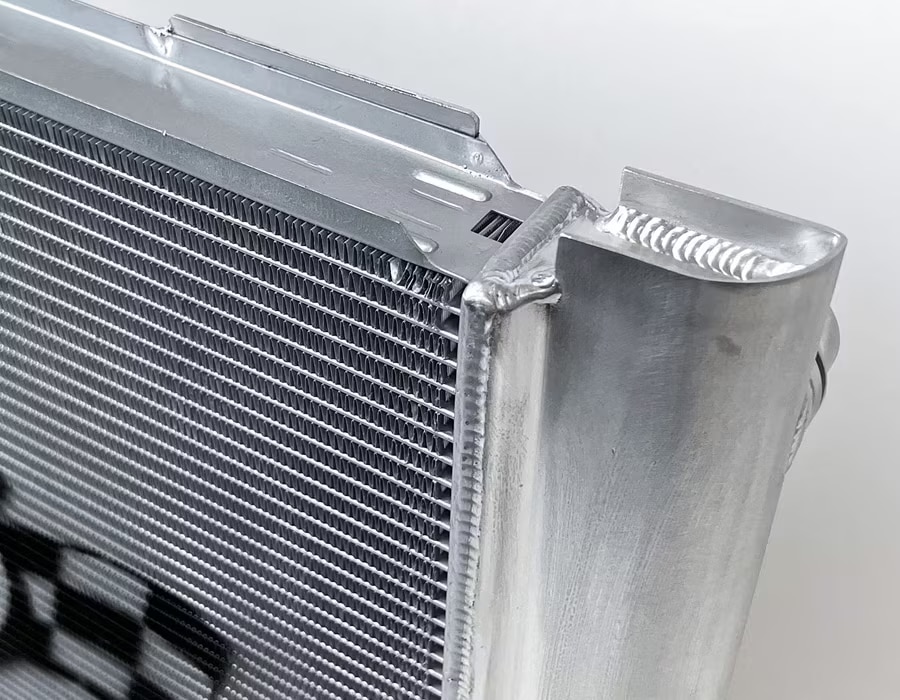

-100% All Aluminum TIG-Welded Construction
-Satin Finish
-True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
-Individually Leak and Pressure Tested
-2-Year Limited Warranty

The M5 / M6 CSF Aluminum radiator is designed as a drop-in replacement to the stock system. It uses all of the factory plastic shrouding, hose connections, and mounting points. Although not a fitment concern, the thicker core will tighten tolerances so ensure all of your connections and fitment follows the factory mounting. All CSF radiators receive design and development in the USA with additional wind tunnel, vibration, thermal cycle, burst pressure, and salt spray testing done at their production facilities in Southeast Asia. During manufacturing, radiators are individually tested for leaks and receive a 30-point inspection prior to shipping. This part is a much higher level of quality than typical Chinese factory parts. CSF is an OE supplier to several manufacturers as well as providing private-label products for other radiator brands. CSF radiators have a two year warranty.
